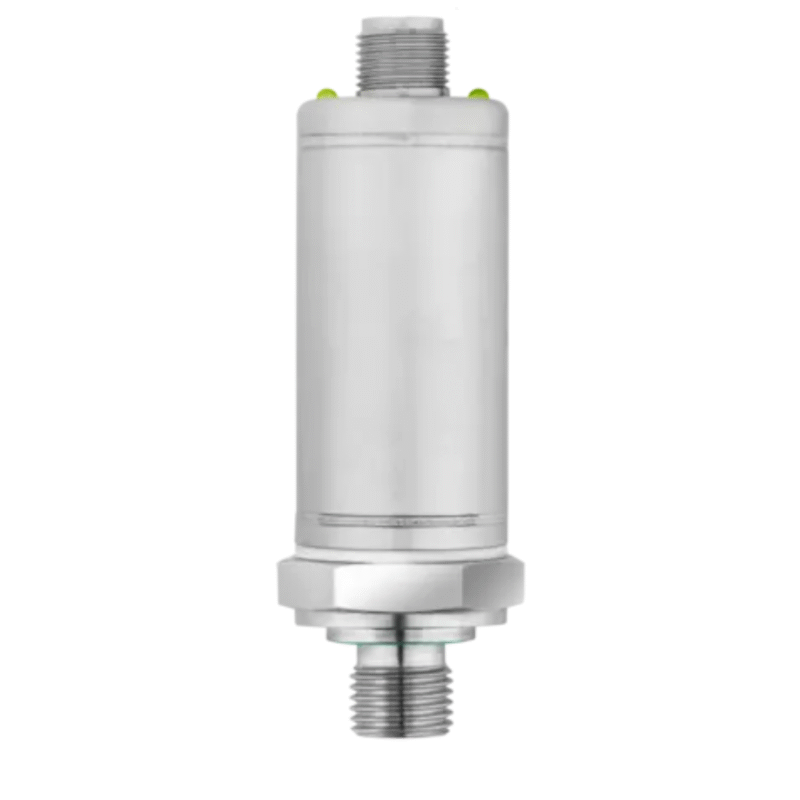

JUMO DELOS SI

The product is designed according to hygienic requirements and offers a high degree of process reliability. The nominal values set by default are between 400 mbar and 60 bar. The transmitter is used in such places as dairies and breweries.

Categories: Digital indicators, Digital indicators, Level, Pressure, Transmitters, Transmitters

Technical data
Downloads

Technical data

general technical data
Measuring range	0 to 60 bar relative, absolute
Accuracy (linearity)	0.1 to 0.15 %
Output	1x PNP switching output, 2x PNP switching output, 1x PNP switching output, and 1x analog output) (either: 0(4) to 20 mA, 0 to 10 V)
Special features	Programmable, switching output, measuring range scaling 1:4, selectable measuring unit, housing and process connection made of stainless steel (316L)
Process connection	Thread, hygienic connections, diaphragm seals, JUMO PEKA
Medium temperature	-25 to +200 °C
Ambient temperature	-25 to +75 °C

general technical data

Measuring range

0 to 60 bar relative, absolute

Accuracy (linearity)

0.1 to 0.15 %

Output

1x PNP switching output, 2x PNP switching output, 1x PNP switching output, and 1x analog output) (either: 0(4) to 20 mA, 0 to 10 V)

Special features

Programmable, switching output, measuring range scaling 1:4, selectable measuring unit, housing and process connection made of stainless steel (316L)

Process connection

Thread, hygienic connections, diaphragm seals, JUMO PEKA

Medium temperature
