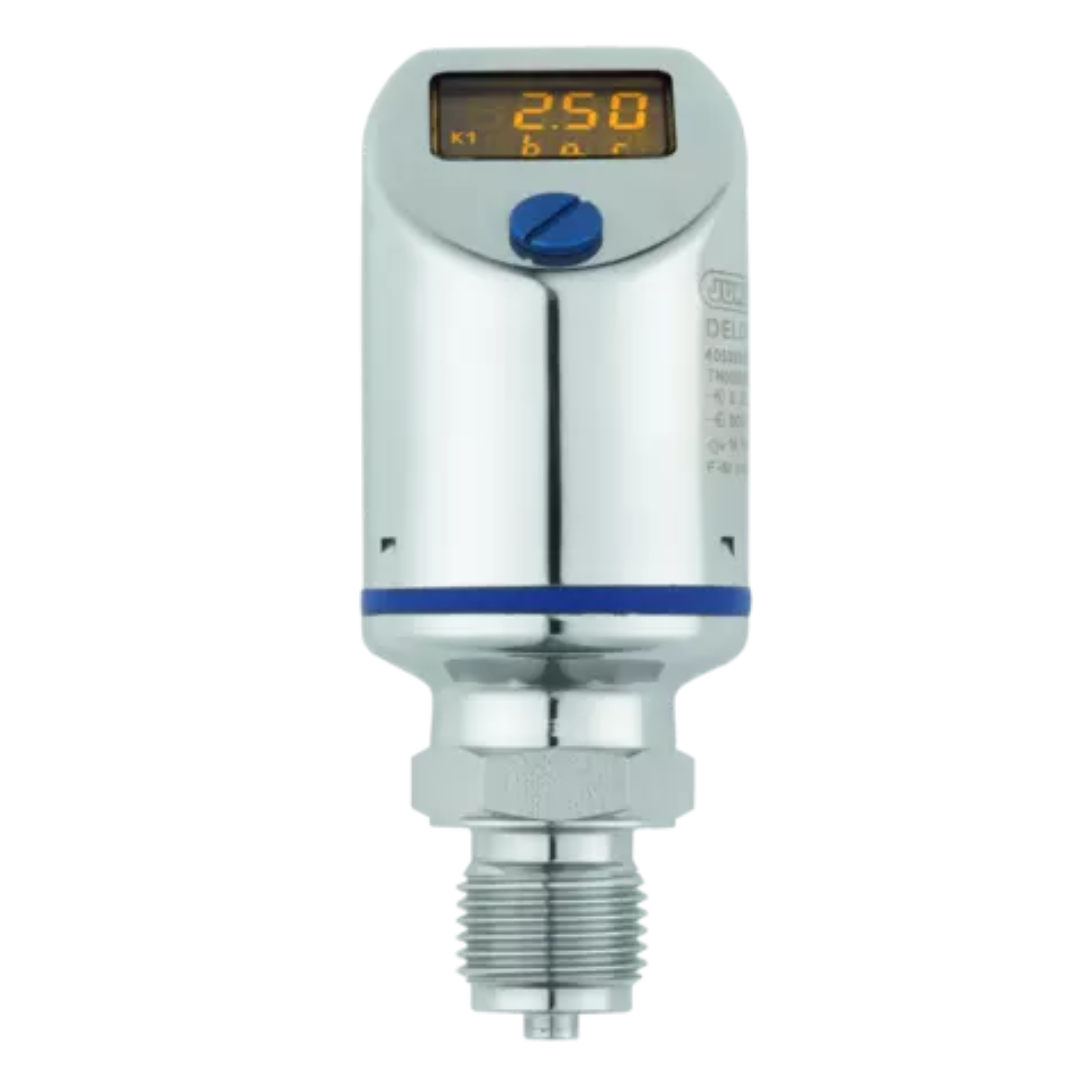

JUMO DELOS HP

The product is equipped with an electronic pressure switch with analog output and is specially designed for use on test benches, in laboratory areas, and for special machine construction. The default nominal values are between 160 and 600 bar.

Categories: Digital indicators, Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Output	1x PNP switching output, 2x PNP switching output, 1x PNP switching output, and 1x analog output) (either: 0(4) to 20 mA, 0 to 10 V)
Accuracy (linearity)	0.10 %
Input	160 to 600 bar relative
Process connection	Thread
Special features	Programmable, switching output, measuring range scaling 1:4, selectable measuring unit, housing and process connection made of stainless steel
Medium temperature	-25 to +100 °C
Ambient temperature	-25 to +75 °C

general technical data

Output

1x PNP switching output, 2x PNP switching output, 1x PNP switching output, and 1x analog output) (either: 0(4) to 20 mA, 0 to 10 V)

Accuracy (linearity)

0.10 %

Input

160 to 600 bar relative

Process connection

Thread

Special features

Programmable, switching output, measuring range scaling 1:4, selectable measuring unit, housing and process connection made of stainless steel

Medium temperature
