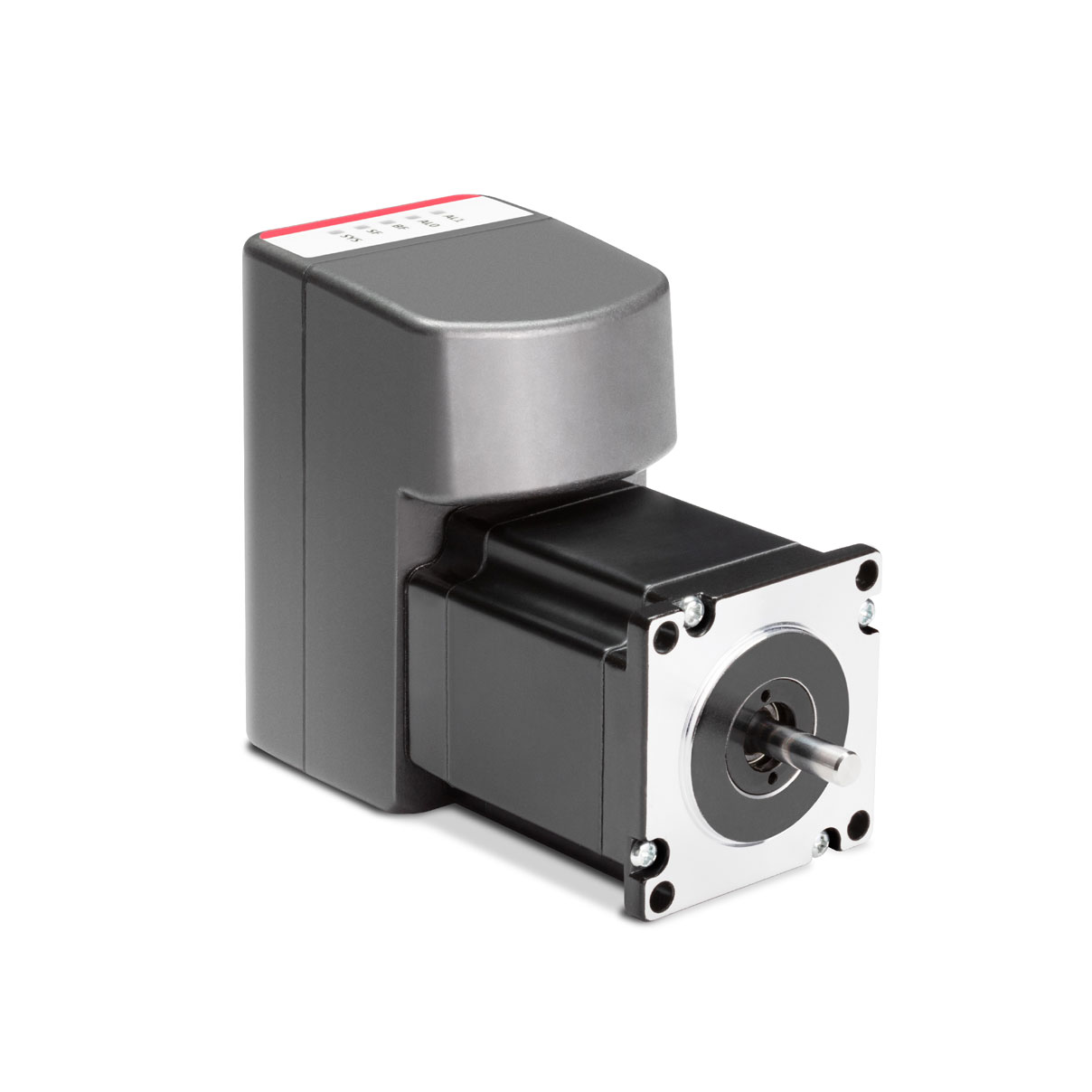

Integrated field-oriented control drive Series DRVI

For stepper and brushless DC, Nema 23 and Nema 24 motors

The Series DRVI integrated motor drive is designed to control various types of motors, both stepper and brushless, using a closedloop control (FOC) algorithm.
This algorithm, also known as vector control (FOC), offers better performance than traditional stepper motor control systems, which allows the stepper motor to operate over the entire speed range, ensuring fast acceleration and deceleration, assuring more accurate motion control with no loss of steps.It is also more energy efficient than traditional control methods, as it uses precise rotor position feedback and controls the phase current, optimising motor operation.
Its compact design and integration with the main communication protocols make the Series DRVI the ideal solution for various industrial applications that require accurate control and fast response to load variations.

Categories: CAMOZZI, Drives, Electric Actuation

General Data

	DRVI-23ST012-..	DRVI-24ST022-..	DRVI-24EC125-..
Motor type	Stepper	Stepper	Brushless DC
Flange size	NEMA 23	NEMA 24	NEMA 24
Power supply	24 – 48 VDC	24 – 48 VDC	24 – 48 VDC (nominal 48 V)
Logic supply	24 VDC
GPIO (General-purpose input/output)	2 digital inputs, for sensors (homing and extra-stroke) 2 general digital inputs 1 general digital output
IP protection class	IP65, except motor shaft (caps must be fitted to unused connectors to ensure IP protection)
Control loop	Closed loop by field-oriented control (FOC)
Operation mode	Position Speed Torque (available only for brushless version DRVI-24EC)
Communication protocol	Profinet CANopen EtherCAT EtherNet/IP
Additional function	STO (Safe Torque Off), PLd, SIL 2, EN 61800-5-2
Rated speed [rpm]	–	–	3000
Max speed [rpm]	3000	3000	3000
Rated torque [Nm]	–	–	0,5
Peak torque [Nm]	–	–	1,5
Torque at 0 rpm at 24VDC [Nm]	1,2	2,2	–
Torque constant Kt [Nm/A]	–	–	0,105
Rated power [W]	–	–	125
Rotor inertia [kg cm²]	0,38	0,78	0,91
Permissible radial load at the end of the shaft [N]	50N	60N	60N
Weight [kg]	1,1	1,6	1,1
Weight with Brake [kg]	1,85	2,35	1,85
Encoder type	Absolute single turn
Recommended motor inertia ratio	<1:10
Current Consumption [A]	3,5 A
Current Consumption, logic [A]	<0,07A
Current Consumption with Brake [A]	0,1A
General digital Input IN1, IN2	Isolated, compliant with IEC 61131-2 type 3
Sensor digital input Homing, External	Isolated input, differential, 24V
General digital output	Protected isolated input, maximum 400mA <0,2
Maximum auxiliary current 24VDC [A]	<0,13 A
Protection	I2T, overvoltage, overcurrent, overtemperature
Operating temperature [°C] (no icing)	-20°C / + 50°C for stepper version (DRVI-23ST.., DRVI-24ST..) must be considered a derating on nominal torque, over 30°C
Humidity [%] (no condensing)	15% – 90%
Installation max altitude [m]	1000
Vibration resistance	IEC 60068-2-6, IEC 60068-2-64
Shock resistance	IEC 60068-2-27
Brake resistance	Not present
BRAKE OPTION
Holding torque [Nm]	1,5 Nm
Opening time [ms]	<=40 ms
Closing time [ms]	<=60 ms
Maximum single switching energy [J]	115J
Service life, operating energy [J]	23000J

Coding Example

DRVI

–

23

ST

012

–

0

E

–

PN

SF

DRVI	SERIES
23	MOTOR FLANGE 23 = Nema 23 24 = Nema 24
ST	MOTOR TYPE ST = Stepper EC = Brushless DC
012	MOTOR TORQUE 012 = 1,2 Nm (Nema 23) 022 = 2,2 Nm (Nema 24) 125 = 125 W (Only for EC)
0	MOTOR BRAKE 0 = Without brake B = With brake
E	MOTOR FEEDBACK E = Absolute single turn encoder
PN	COMMUNICATION PROTOCOL PN = Profinet CO = CanOpen EC = EtherCAT EI = EtherNet/IP
SF	SAFETY FUNCTION = Standard SF = Safe torque off (PLd, SIL 2, EN 61800-5-2)
