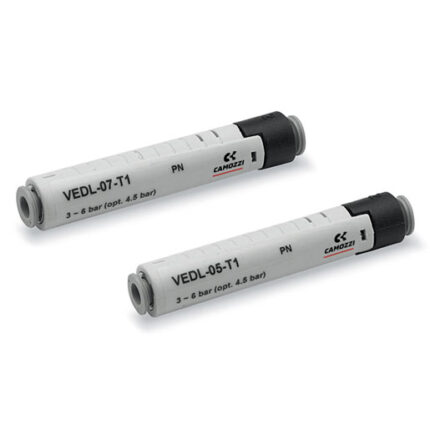

Inline ejectors Series VED
Vacuum ejectors without moving parts, based on the Venturi principle, used for direct installation on suction pads.
These ejectors are used for direct installation inline between the suction pad compressed air supply.
This substantially reduces the volume to be evacuated and allows therefore shorter cycle times.
This substantially reduces the volume to be evacuated and allows therefore shorter cycle times.
General Data
| Description | – body in anodized Aluminium – internal nozzle in brass |
Coding Example
| VED | – | 05 |
| VED | SERIES VED = Vacuum ejectors |
| 05 | NOZZLE DIAMETER 05 = 0,5 mm 07 = 0,7 mm 09 = 0,9 mm |
