Main features
- Measurements up to 4000bar nozzle pressure and melt temperature of 400°C.
- Multishot measurements at temperatures
Available resources
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Datasheet
– IN-4000 set – Datasheet
User Manual
– IN-4000 set – USER MANUAL
Flyer
– Flyer IN-4000 set
Certifications
– EU Conformity declaration – IN-4000 SET
– UK Conformity declaration – IN-4000 SET
Technical specifications
Overview

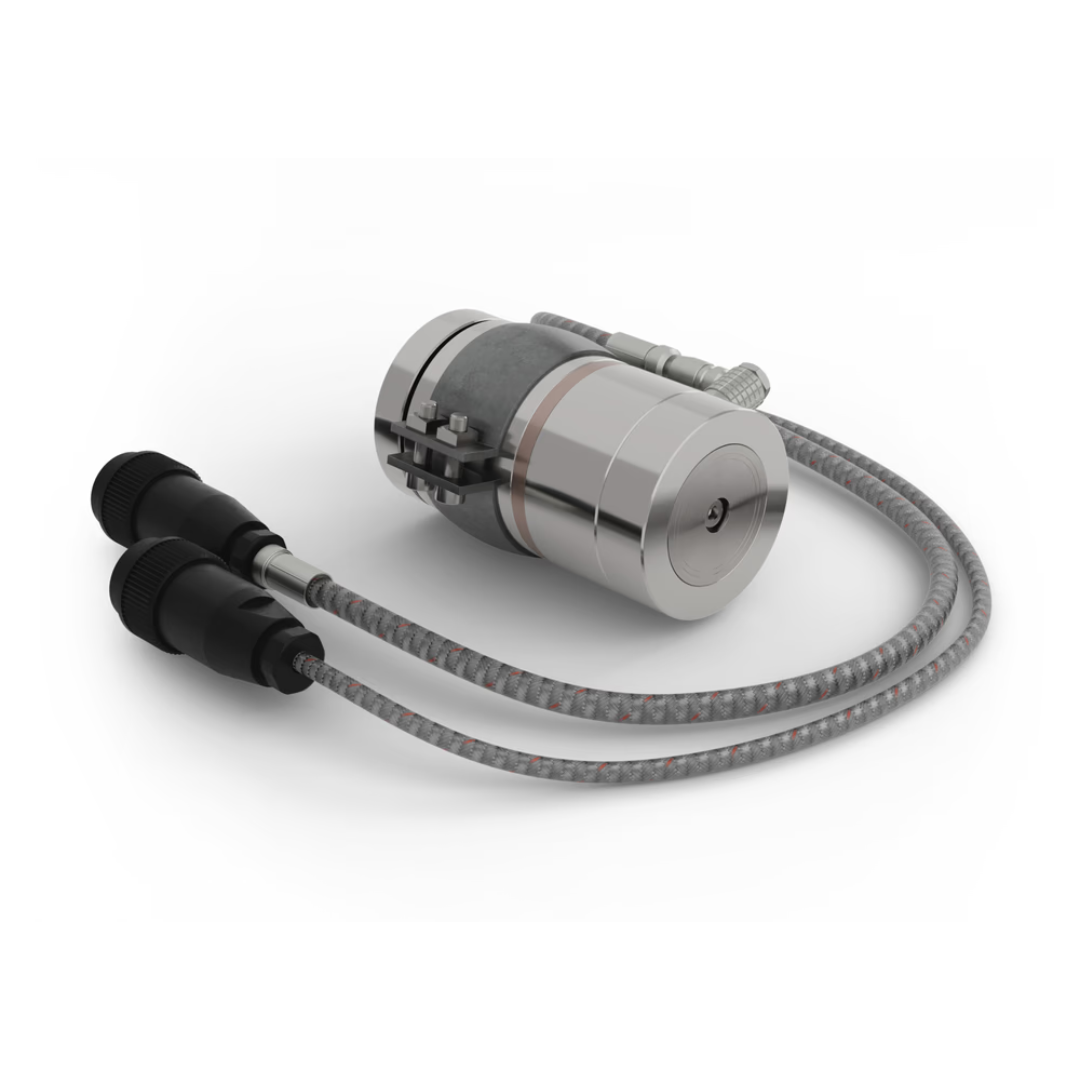

The IN-4000 SET measures in the injection moulding machine the nozzle pressure compare to the injection pressure.
This is especially important in processes according to ISO9000. The Nozzle pressure sensor is mounted with magnetic force.
The nozzle injector of the injection moulding machine press directly on the nozzle adapter which protects the sensor against damage. After that the sensor will be loaded with the melt of the injection pressure.
The Heater band warms the sensor up to 230°C so that the melt in the conical chamber remains liquide.
This allows multiple measurements with different injection pressure.
