QE2008-W
System for strain measurement with bluetooth transmission
Main features
- New application specific interfaces
- Sensor battery level and status monitoring
- Remote sensor identification
Available resources
2D/3D Files
– QE2008-W – 2d/3d
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Gefran product range brochure
Battery Declaration
– Declaration of compliance for Lithium-Ion Batteries QE2008-W
Technical Articles
– Magnet Dehnungmessesensoren_Konstruktion06_14
User Manual
– QE2008 – USER MANUAL
Datasheet
– QE2008-W – Datasheet
Flyer
– QE2008-W – Flyer
App
– Sensormate App – Android (China only)
– Sensormate App – App Store
– Sensormate App – Google Play
– Sensormate App – Microsoft
Technical specifications
Overview

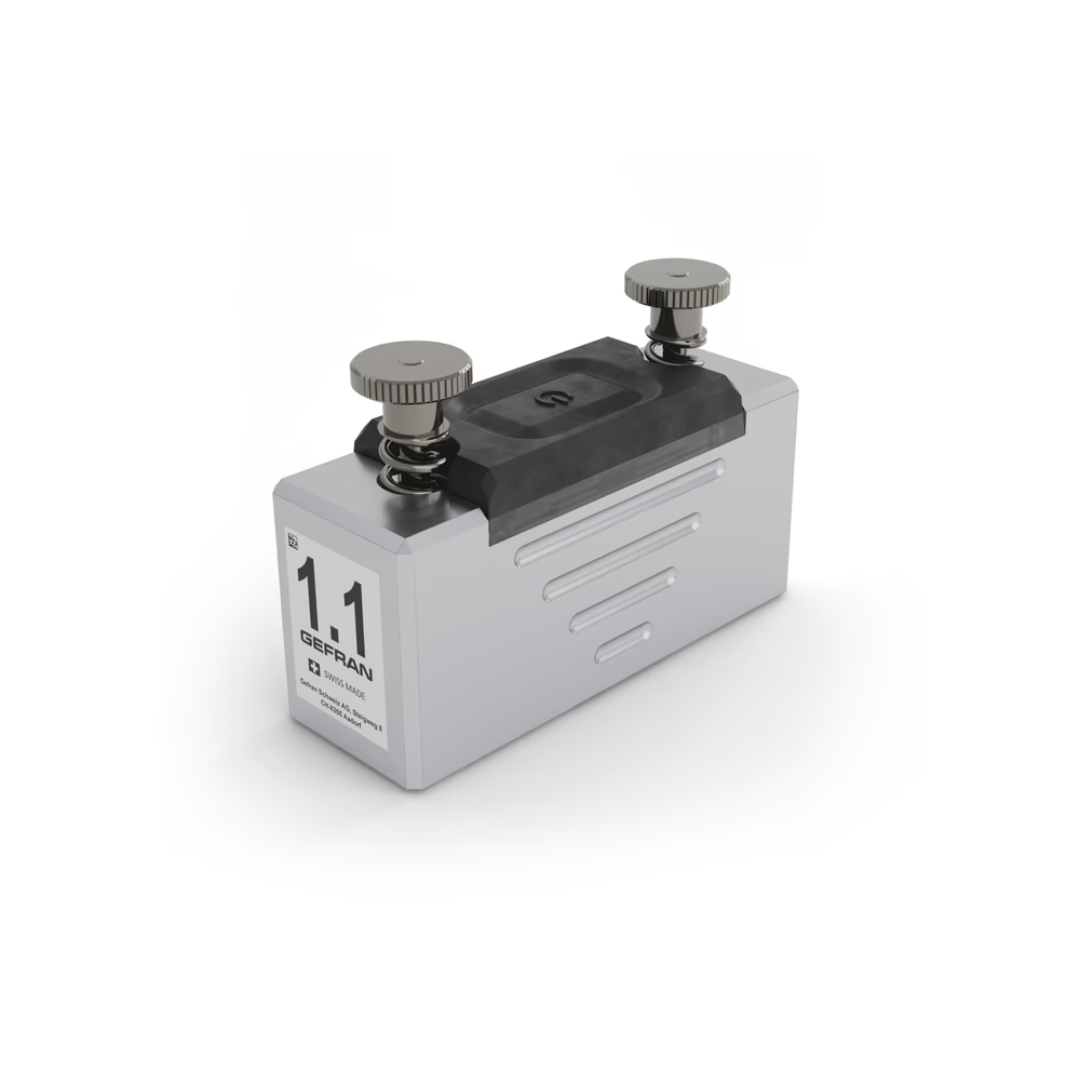

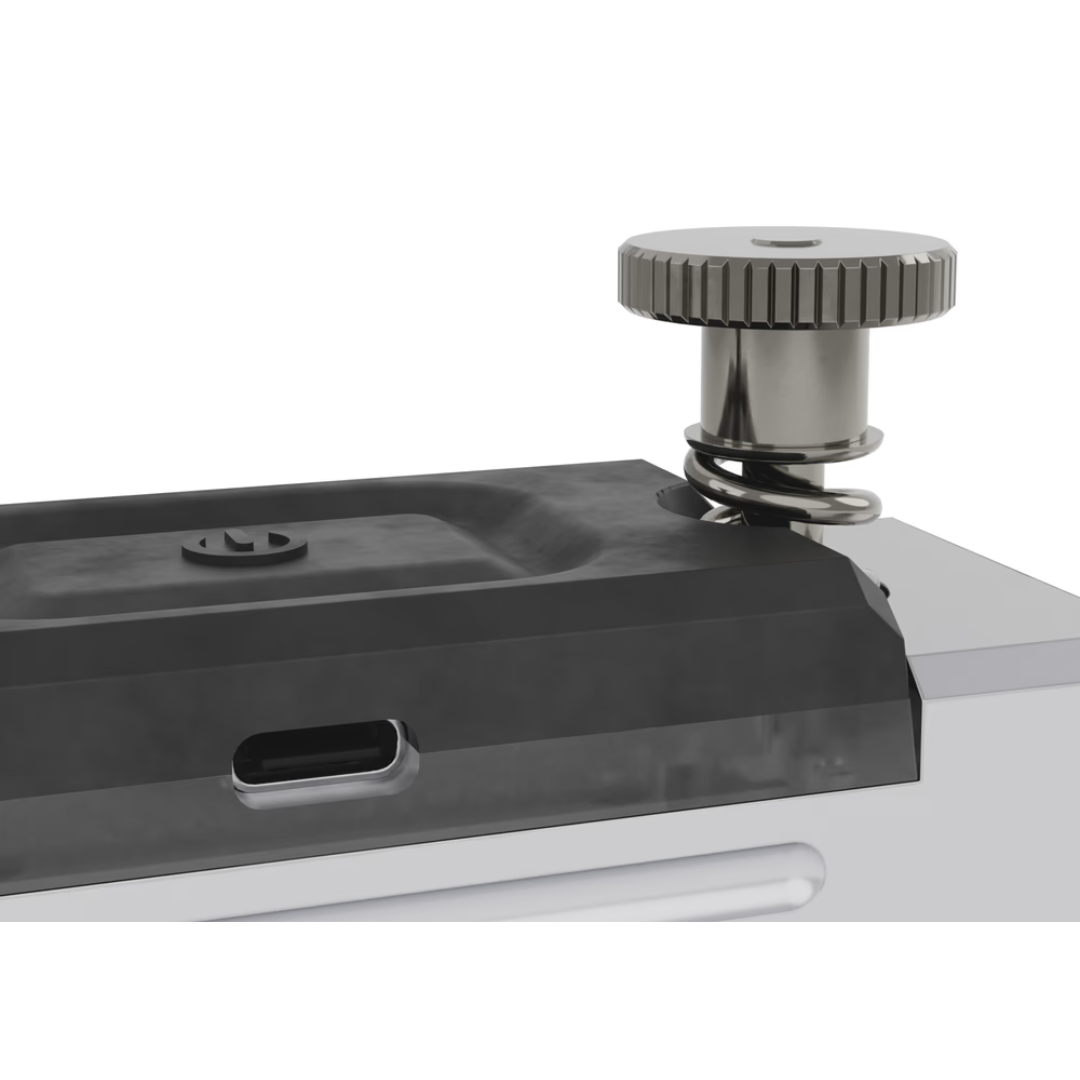

The magnetically mounted wireless strain sensor QE2008-W measures the strain directly at the location where is mounted, providing a measurement that has the same quality and performances as with bonded strain gauges.The Sensormate press-on technology implements a strain gauge positioned under a stainless protective film. When the sensor is mounted on a metallic object, the magnets hold so strictly that frictional contact occurs and allows a reliable measurement.
The mounting of the sensor is quick, simple and non-destructive, allowing for an easy setup and increasing the daily productivity.
The integrated electronics contains a state-of-the-art processing component, which allows hi-end measurements and wireless communication via the Bluetooth 5.0 protocol. The adopted components allows for a low-energy operation, extending the battery life to several working hours.
An on-board accelerometer allows the user to check the correct mounting of the sensor and assure an accurate measurement result. The internal RAM memory helps when a fast measurement is needed, allowing to store high resolution data.
Typical Applications:
Injection-moulding machines- Tie Bar parallelism check- Bending analysis- Cavity pressure profile inspection- Tie bar cracks detection
Die casting machines
Presses
Structural monitoring
Indirect load and force measurement
