Main features
- With high grade variable digital amplifier
- Amplifies the signal on the spot, avoiding EMC problems
- High accuracy and linearity in tension and pressure (like bonded strain gauges)
Available resources
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Gefran product range brochure
Datasheet
– Datasheet SB76-VDA press-on strain sensor with digital amplifier
– Magnet Dehnungmessesensoren_Konstruktion06_14
Certifications
– EU Conformity declaration – SB76-VDA
– UK Conformity declaration – SB76-VDA
Technical specifications
Overview

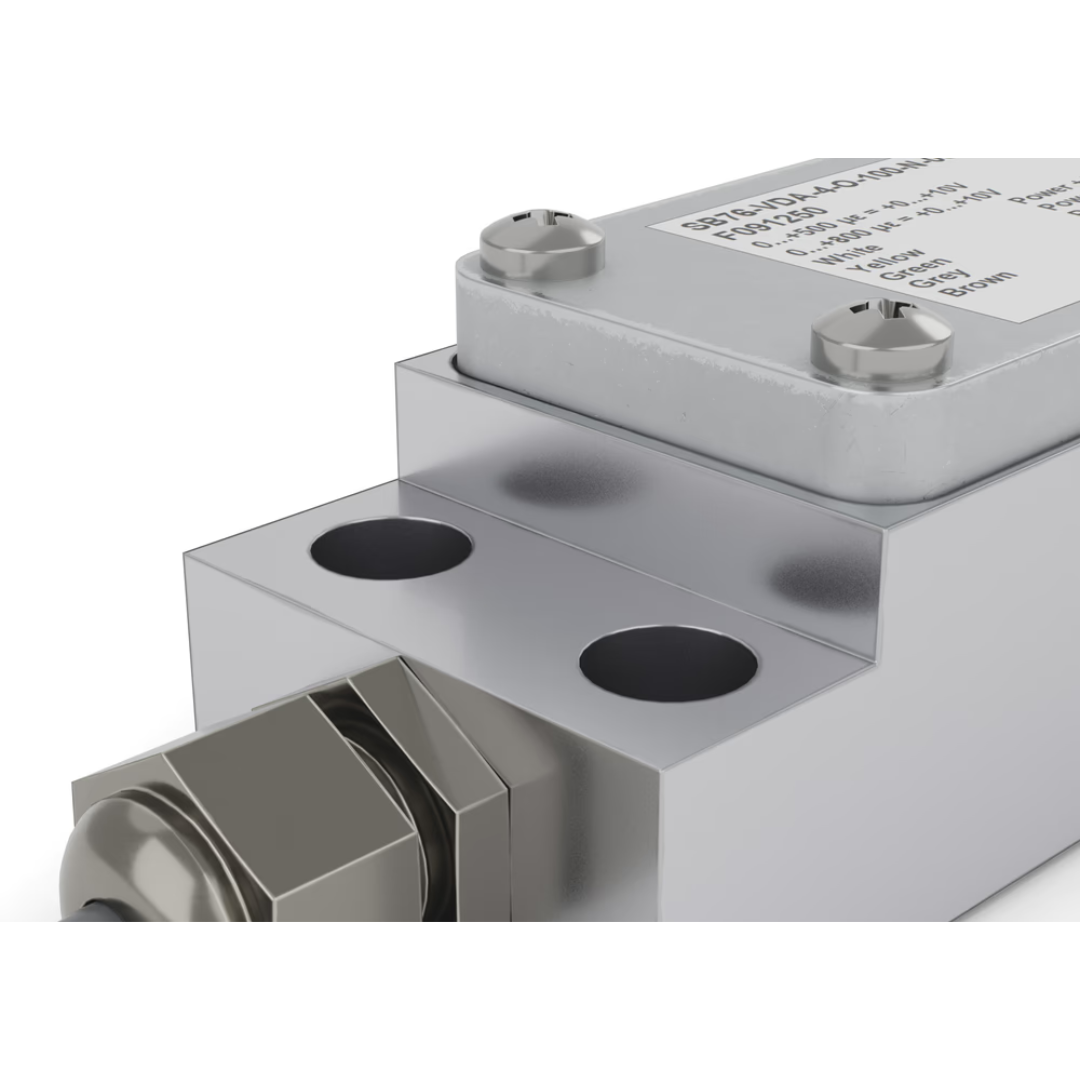

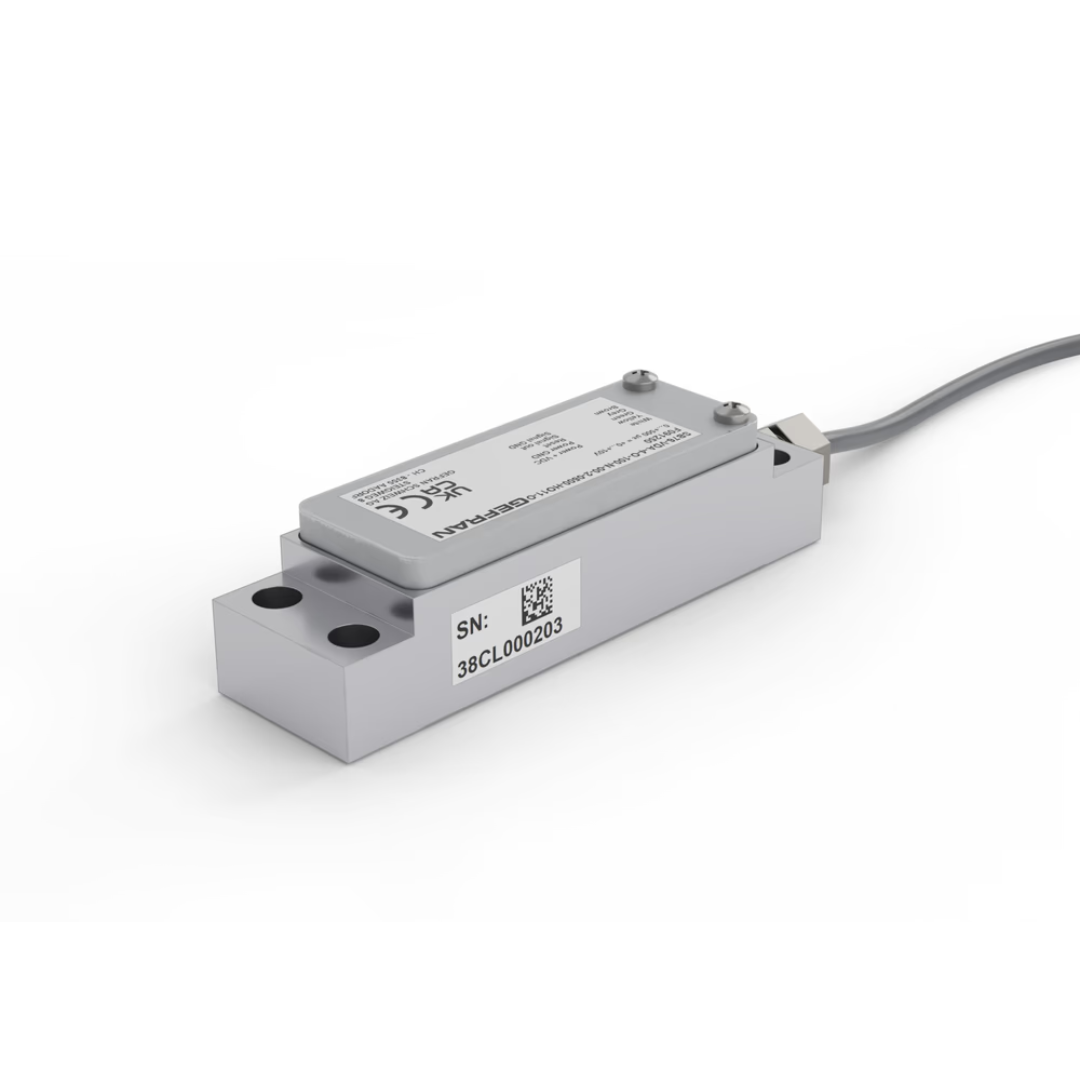

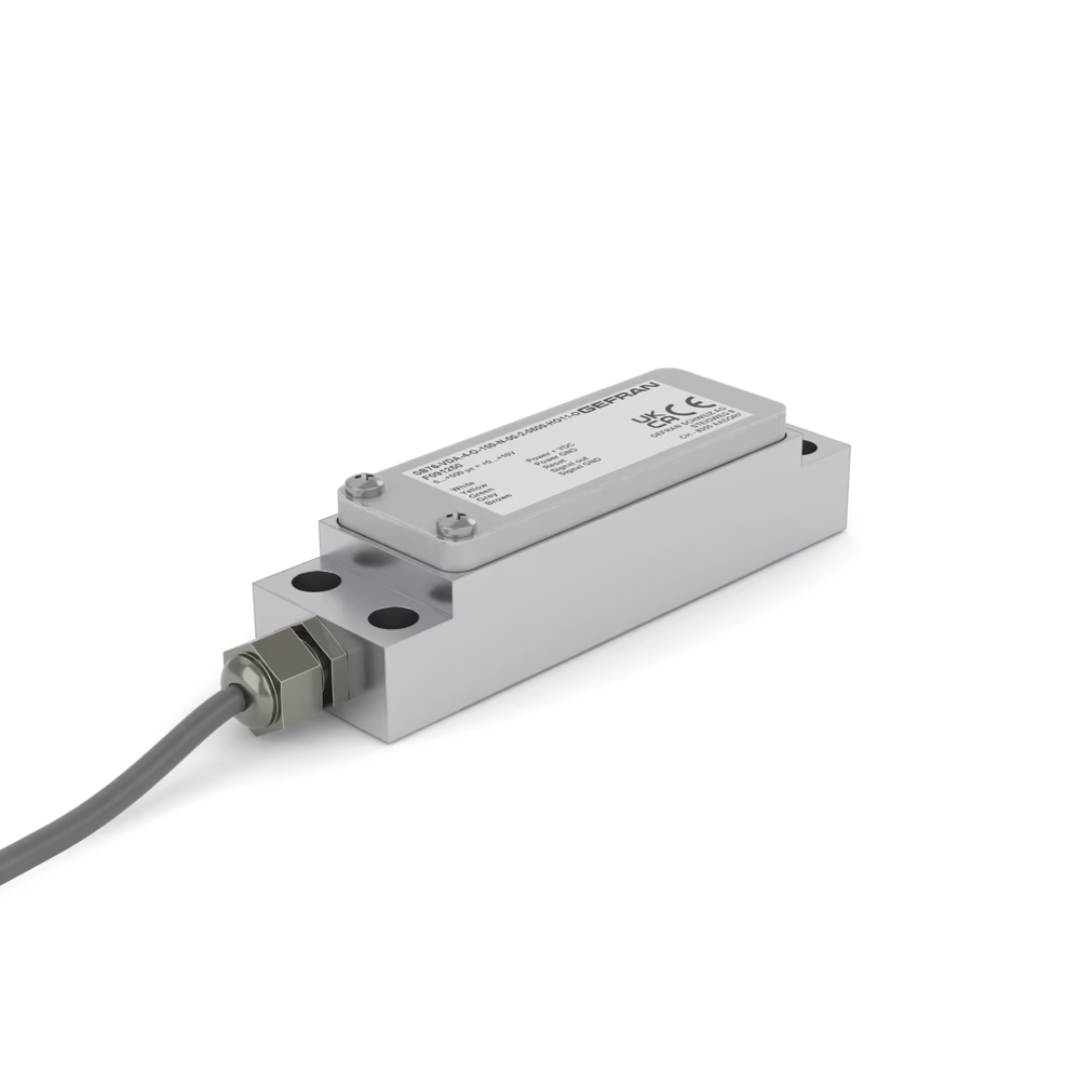

The strain gauge sensor SB76-VDA measure the surface-strain directly at the mounting location in the same quality as bonded strain gages. The integrated variable digital amplifier amplifies the signal on the spot, avoiding EMC problems. The mounting is very fast. The press-on technology, developed by Sensormate AG, presses the strain gauges under the stainless protective film so strongly against the surface to be measured that frictional contact occurs. The sensor can not be overloaded.
The sensor do not need a recalibration when it replaced or remounted. The sensor require a cyclical reset.
