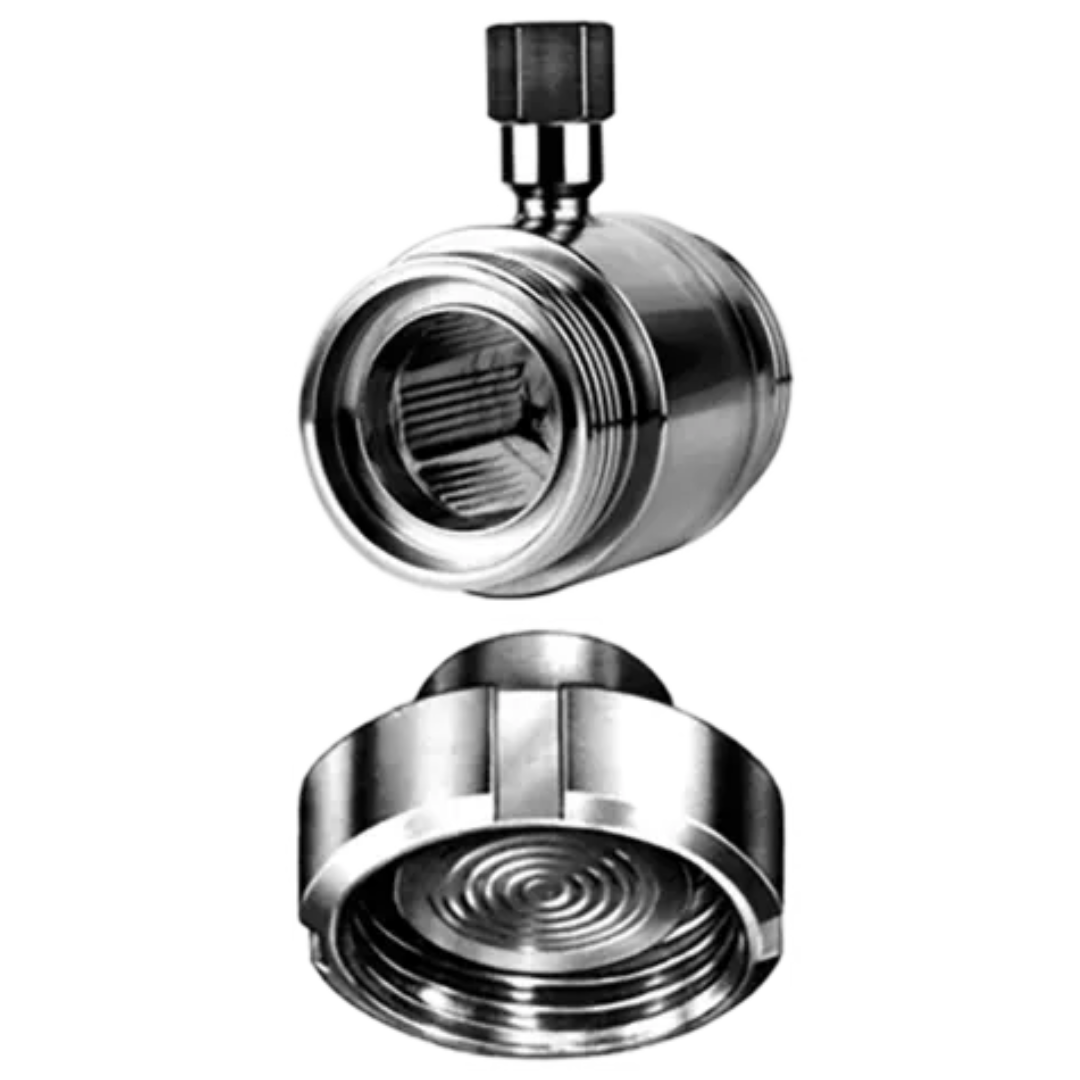

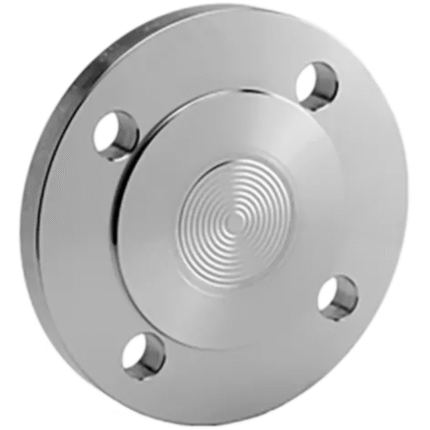

Diaphragm seal
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
Technical data
| general technical data | |
|---|---|
| Material | Stainless steel |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m, |
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Type | Membrane diaphragm seal with taper socket and grooved union nut or inline diaphragm seal with threaded socket |
| Recommended minimum measuring range | From 0.1 bar |
