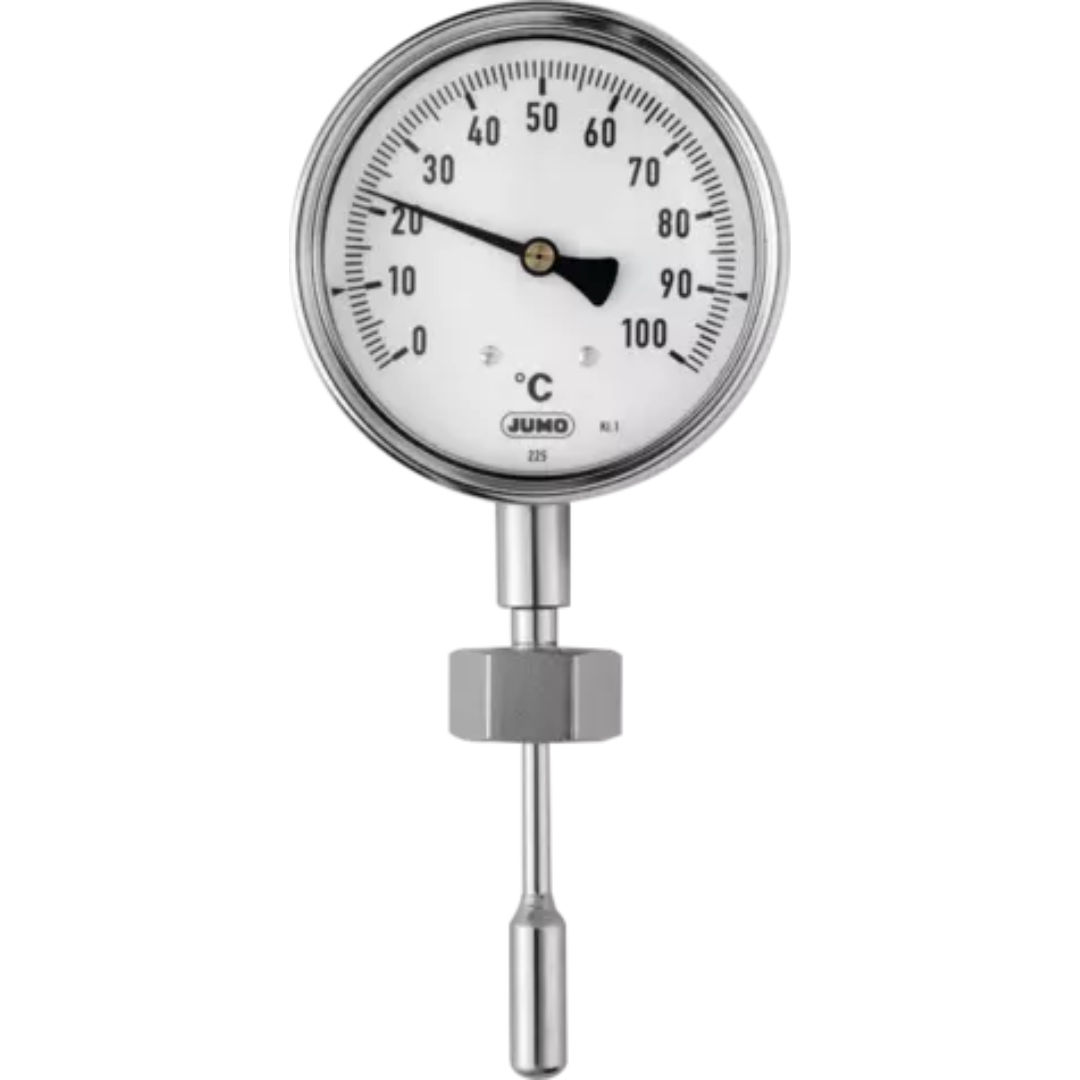

Dial thermometer

Dial thermometers are universal devices used for temperature measurement and monitoring. The overall system is extremely warp resistant due to the direct connection of the indicator to the measuring system. Oscillations are transferred to the indicator only to a limited degree.

Categories: Dial thermometers, Temperature

Technical data
Downloads

Technical data

general technical data
Features	Temperature controller in flush-mounted or surface-mounted housing; ambient temperature compensation as a standard feature
Accuracy class according to DIN EN 13190	Class 1
Capillary/rigid thermowell	Capillary length up to 10,000 mm possible
Probe outlet	Vertical or horizontal
Case size	100 mm, 160 mm
Approval	ATEX
Areas of application	Mechanical engineering, process technology, gearbox construction, chemical industry, plant engineering
Measuring range	-40 to +450 °C
Display range	-40 to +500 °C

general technical data

Features

Temperature controller in flush-mounted or surface-mounted housing; ambient temperature compensation as a standard feature

Accuracy class according to DIN EN 13190

Class 1

Capillary/rigid thermowell

Capillary length up to 10,000 mm possible

Probe outlet

Vertical or horizontal

Case size

100 mm, 160 mm

Approval
