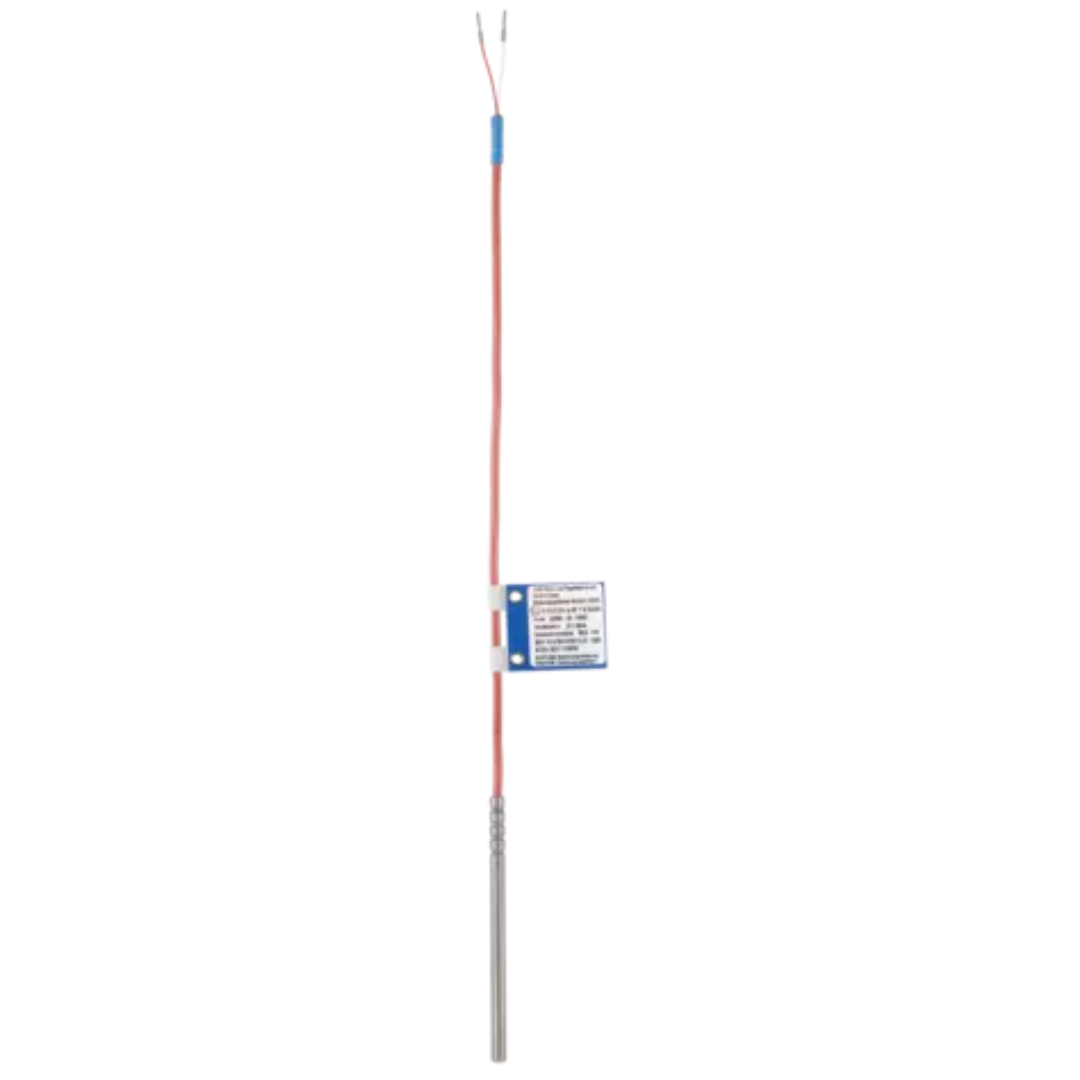

ATEX/IECEx RTD temperature probe
Due to their specific features, ATEX/IECEx RTD temperature probes with connecting cables are used in pharmaceutical and chemical plants, power plants, pipes, on test rigs, in engine manufacturing, and at any measuring locations requiring flexibility and simple replacement.
Technical data
| general technical data | |
|---|---|
| Protection type | IP66 |
| Connection | Shielded connecting cables (silicone, PTFE, metal braiding/glass fiber, PVC, PUR, FEP, RADOX®, BETAflam®) |
| Protection fitting | Stainless steel 1.4571, 1.4435, others upon request, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, and 9 mm |
| Sensor | Pt100, Pt1000 |
| Process connection | Various threads |
| Areas of application | Process industry, chemical industry, plant engineering, pump engineering |
| Operating temperature | -100 to +260 °C, -100 to +600 °C (mineral-insulated thermometer) |
| Option | Mineral-insulated RTD temperature probe, Pt500, Pt2000, or NTC sensors |
| Special features | For universal use |
| Features | Ex approval, also available as a mineral-insulated RTD temperature probe |
| Measuring circuits | 1/2 |
| Approvals | ATEX, IECEx |
Downloads
Operating Manual
Operating Manual
Certificate
Brochure
Declaration of Conformity / White Paper
Declaration of Conformity / White Paper
Order details
