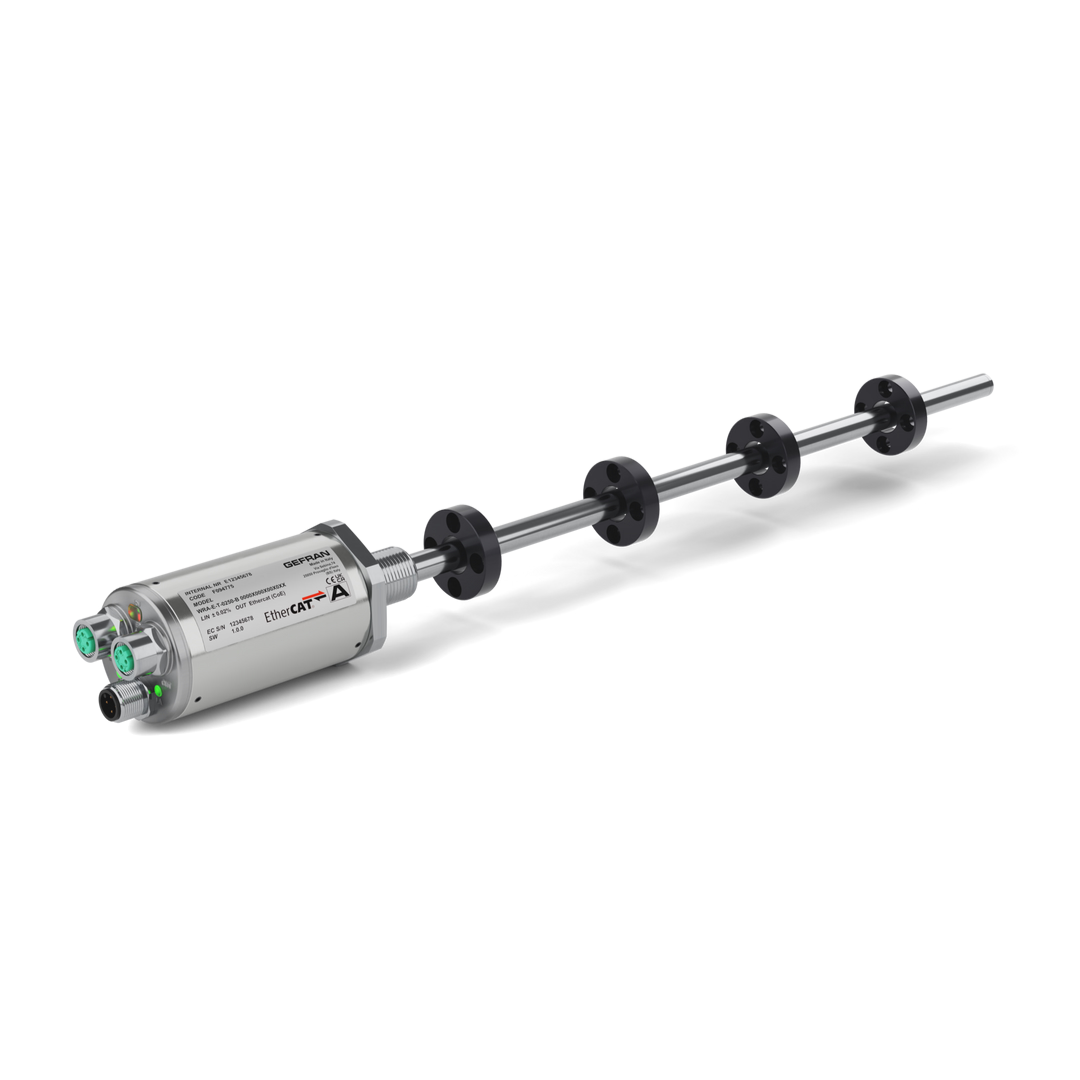

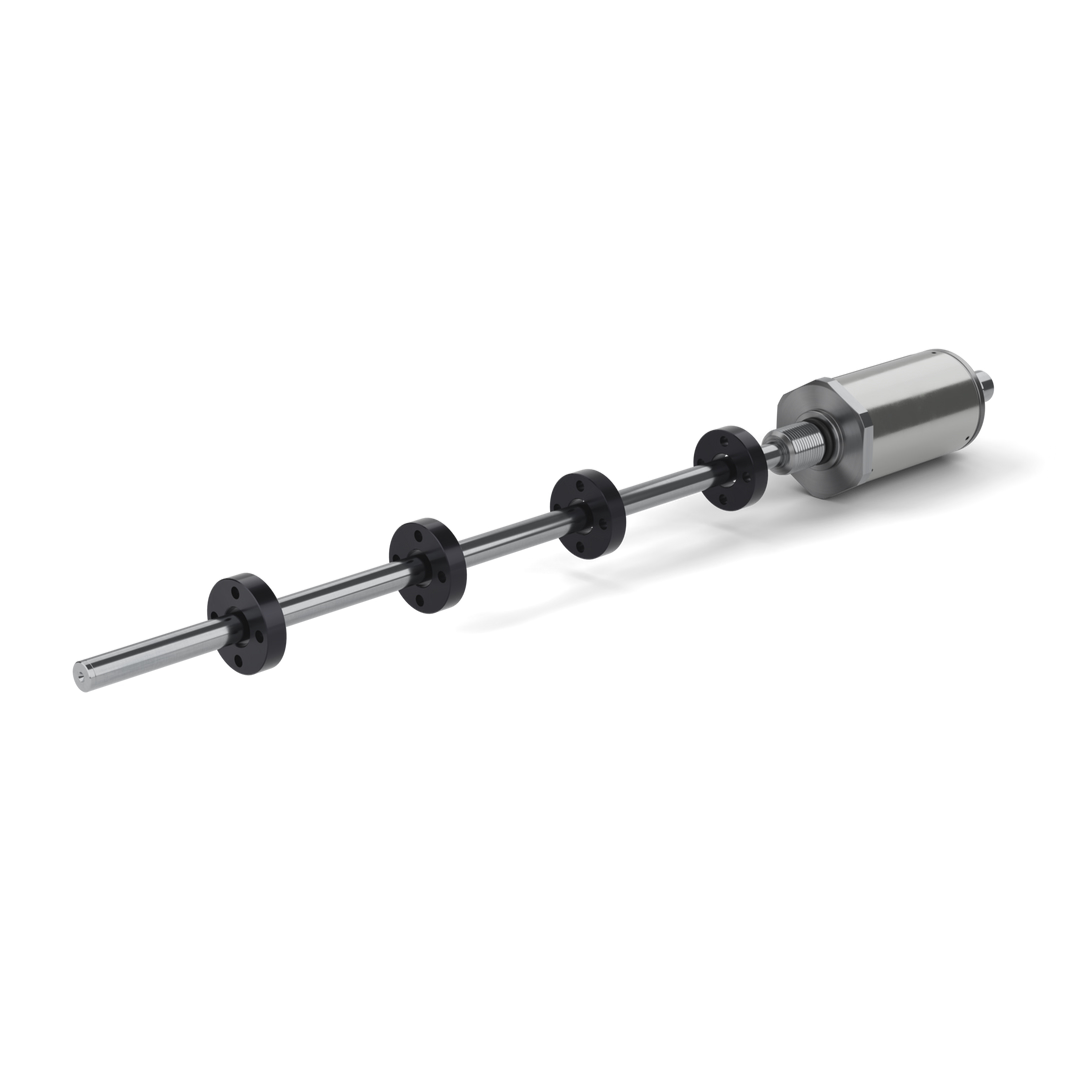

WRA-E
Contactless magnetostrictive – HYPERWAVE technology – Ethercat Output
Main features
- Strokes from 50 to 4000mm
- Position and velocity measurement, max 16 independent magnet cursors.
- Rod, nipple, hexagonal flange in AISI 316
Available resources
Brochure
– Position Transducers
– Gefran product range brochure
User Manual
– Manual of Electrical Installation of Contactless Magnetostrictive
– MK4/WPP/WPA/IK4/WRG/WRP/WRA/RK4/RK2 – Installation Manual
– WPA-E, WRA-E – User manual
Fieldbus Configuration files
– WPA-E, WRA-E – ESI Configuration file
Flyer
– WPA-E, WRA-E Flyer
Datasheet
– WRA-E Datasheet
Certifications
– EU Conformity Declaration – WRA-E
– UK Conformity Declaration – WRA-E
Technical specifications
Overview
Contactless linear position transducer with HYPERWAVE magnetostrictive technology; the absence of electrical contact on the cursor, eliminates wear and tear problems and consumption ensuring an almost unlimited service life.
High measurement performance with reference to nonlinearity, repeatability and hysteresis.
High resistance to vibration, mechanical shock, wide working temperature range.
High protection from external agents and immunity to EMC noise.
EtherCAT interface is the fastest industrial Ethernet technology*.
No need for dedicated hardware, distances up to 100 m, “on-the-fly” operation i.e. data and alarms are transferred in real time.
The sensor can operate in “free-run” or “synchronous” mode; in “Distributed Clocks (DC)” mode in synchronous communication offers a minimum cycle time of 250 µs
*source EterCAT.org
