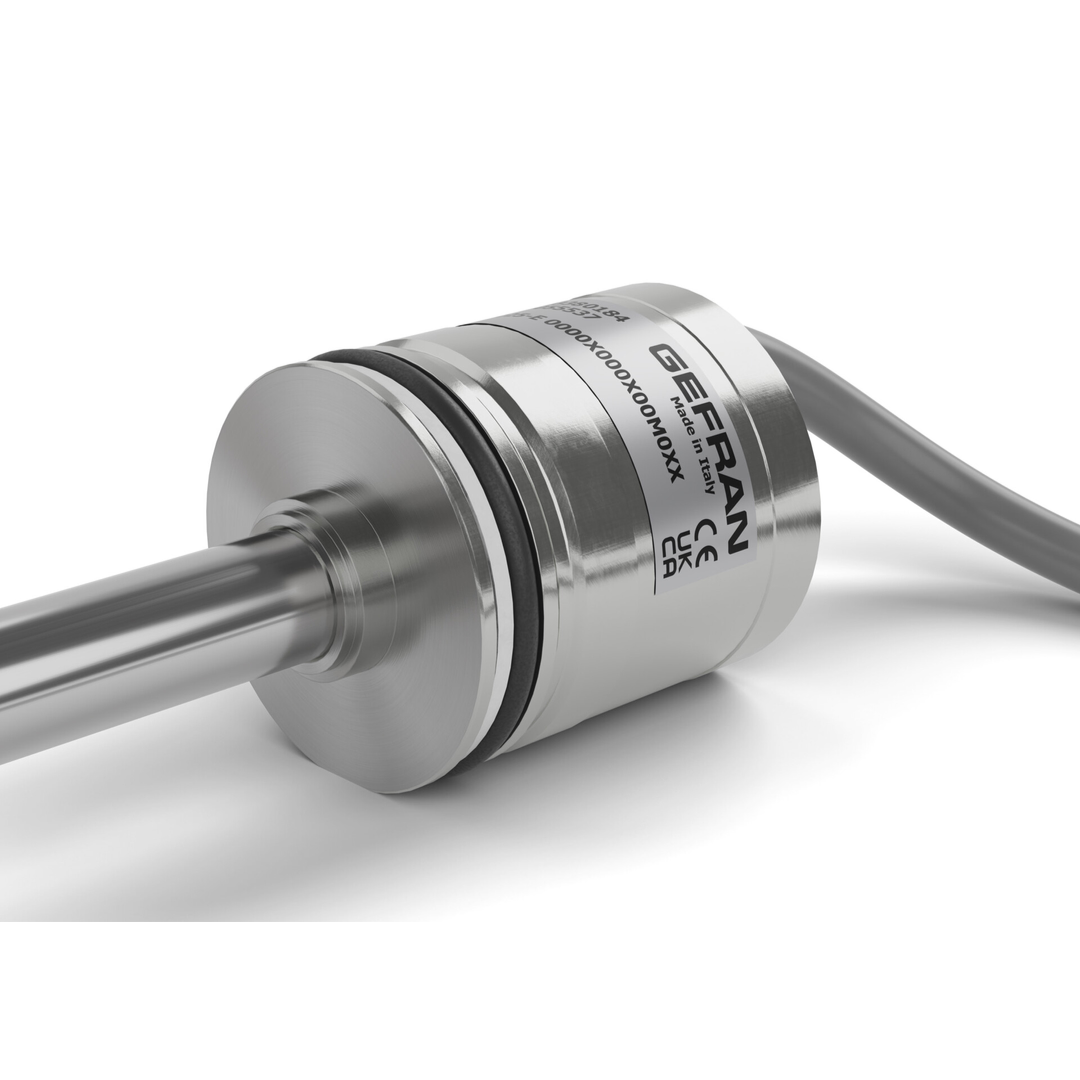

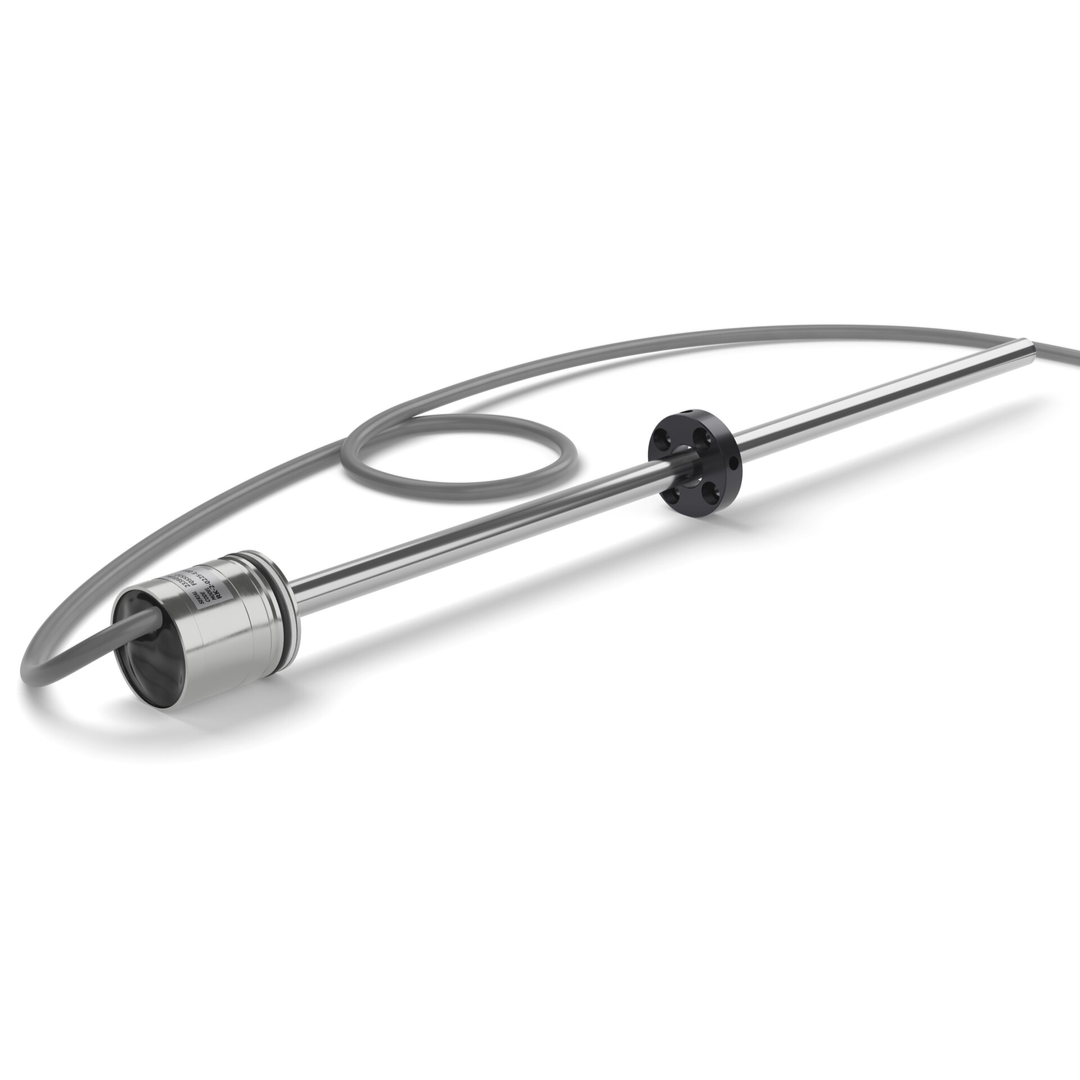

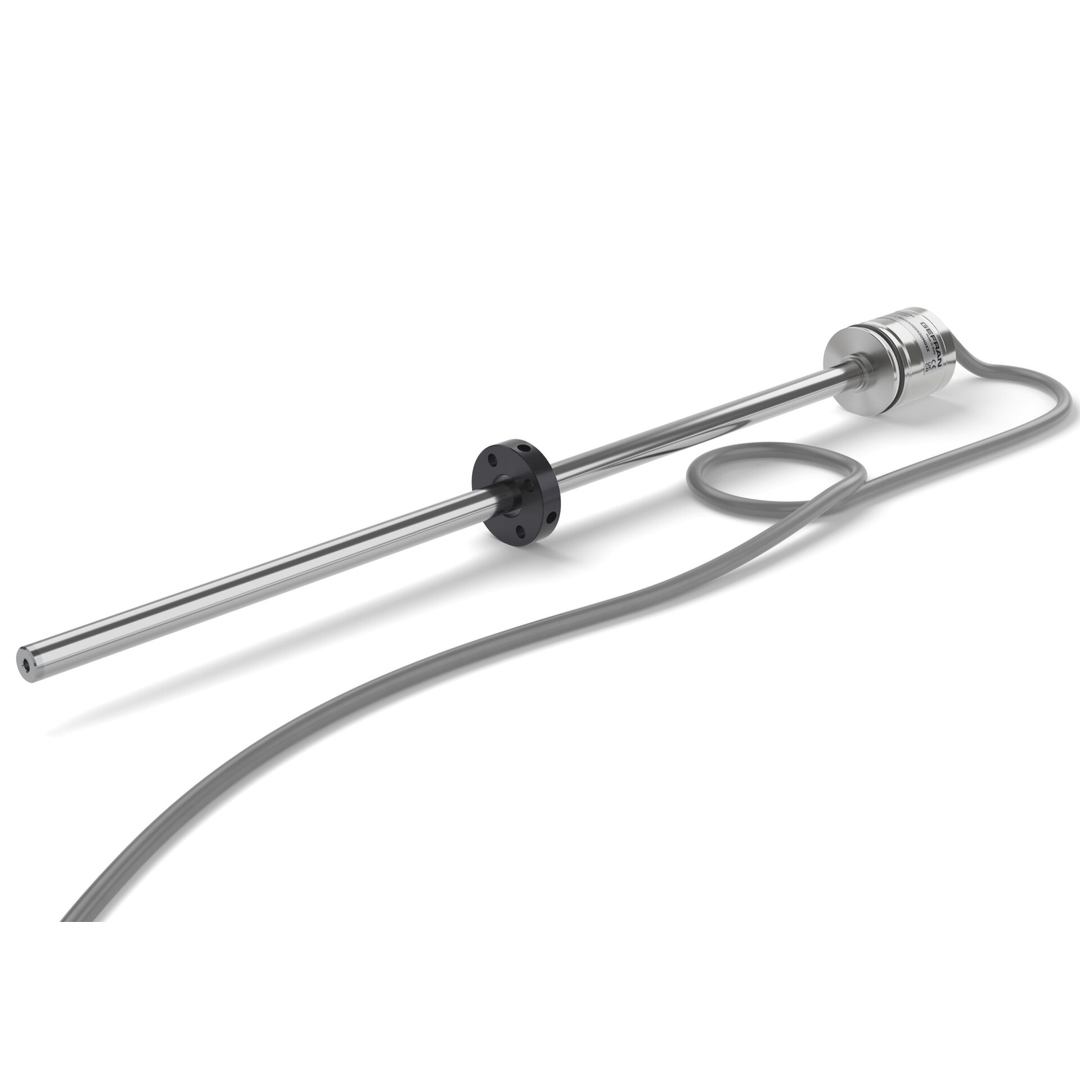

RK-2
Compact Contactless Magnetostrictive – Rod Flange AISI 316 – Analogue Output
Main features
- Absolute transducer
- Strokes from 50 to 2500mm (RK-2-_ _ _ _ -N/E/S)
- Digital output RS422 Start/Stop (RK-2-_ _ _ _ -S)
Available resources
2D/3D files
– RK-2_0100.zip
– Gefran product range brochure
Brochure
– Position Transducers
– Gefran product range brochure
– Solutions for mobile hydraulics
User Manual
– Manual of Electrical Installation of Contactless Magnetostrictive
– MK4/WPP/WPA/IK4/WRG/WRP/WRA/RK4/RK2 – Installation Manual
Datasheet
– RK-2 Datasheet
Certifications
– UK Conformity Declaration – RK-2
– EU Conformity Declaration – RK-2
– EU Conformity Declaration_MK, IK, ONP, RK
Technical specifications
Overview
Contactless linear position transducer with magnetostrictive technology: the absence of electrical contact on the cursor eliminates problems of wear and consumption and guarantees almost unlimited life.
The head’s flanged shape and small size make the RK-2 series ideal for applications requiring installation completely inside the hydraulic cylinder.
The overall dimensions of the sensor are among the smallest available on the market.
For the interface signal, you can choose between a start/stop interface (which allows the use of multiple cursors) and an analog interface that gives the displacement of a single cursor (available in the several ranges in Voltage or Current).
Excellent linearity, repeatability, resistance to mechanical vibrations and shocks complete the product’s specifications overview.
