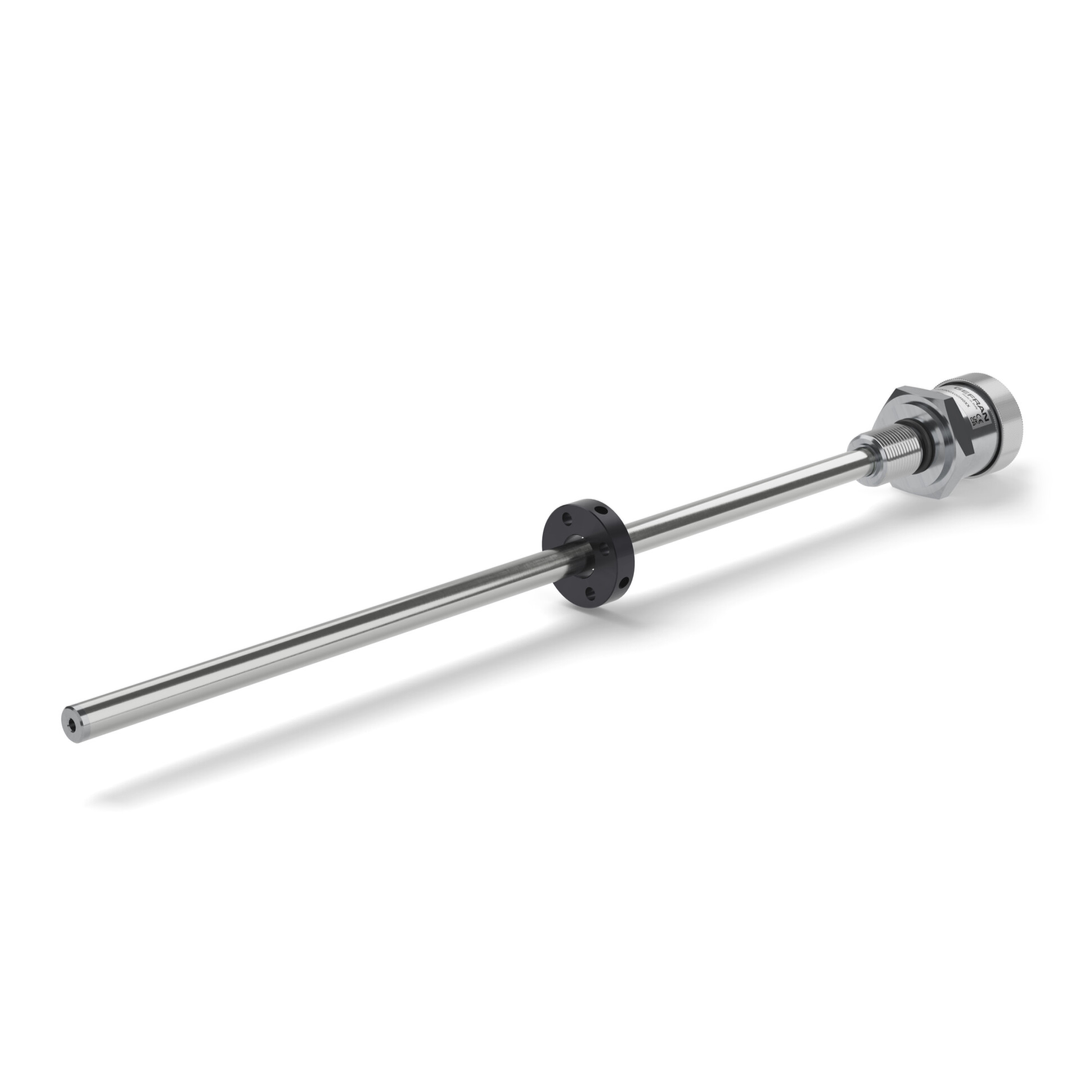

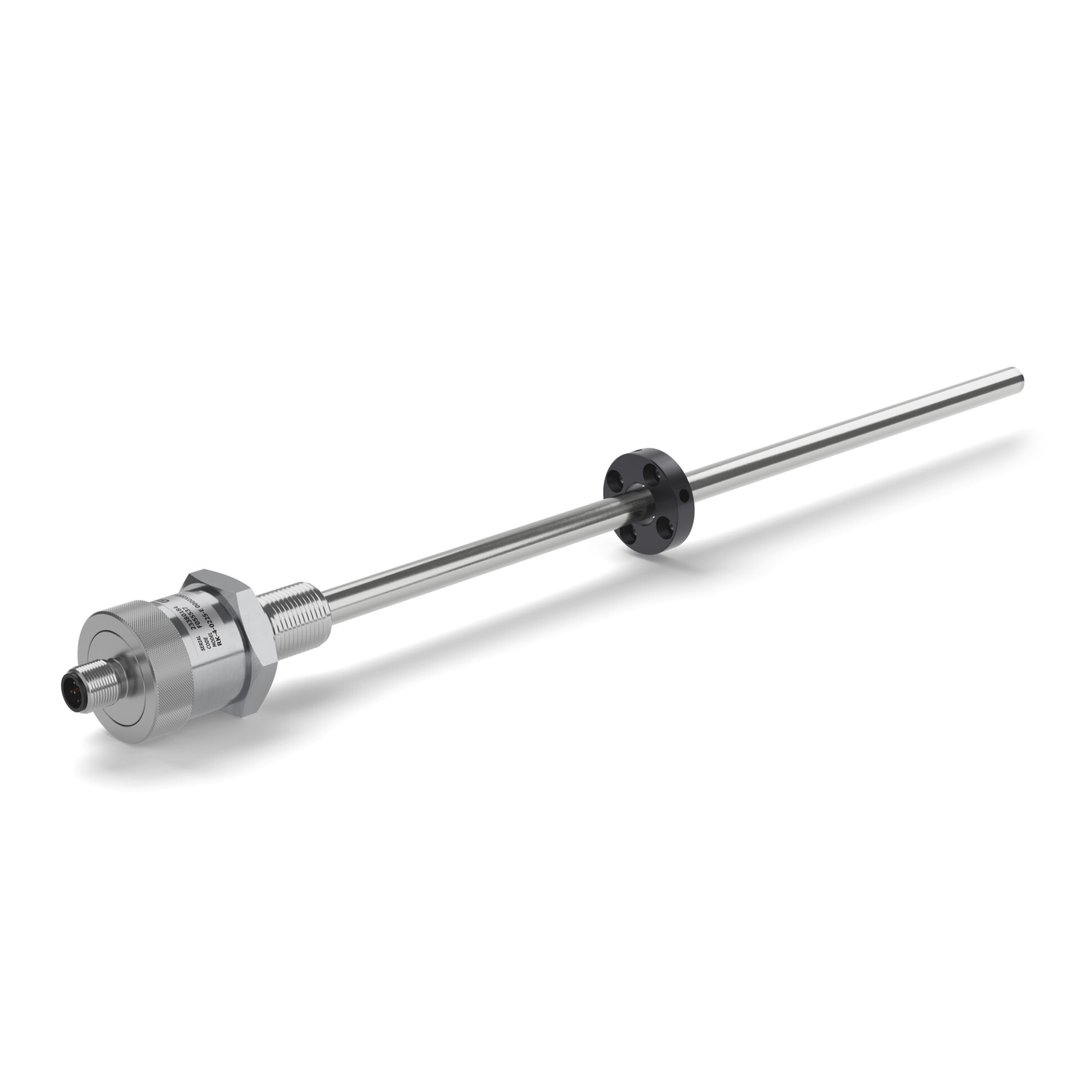

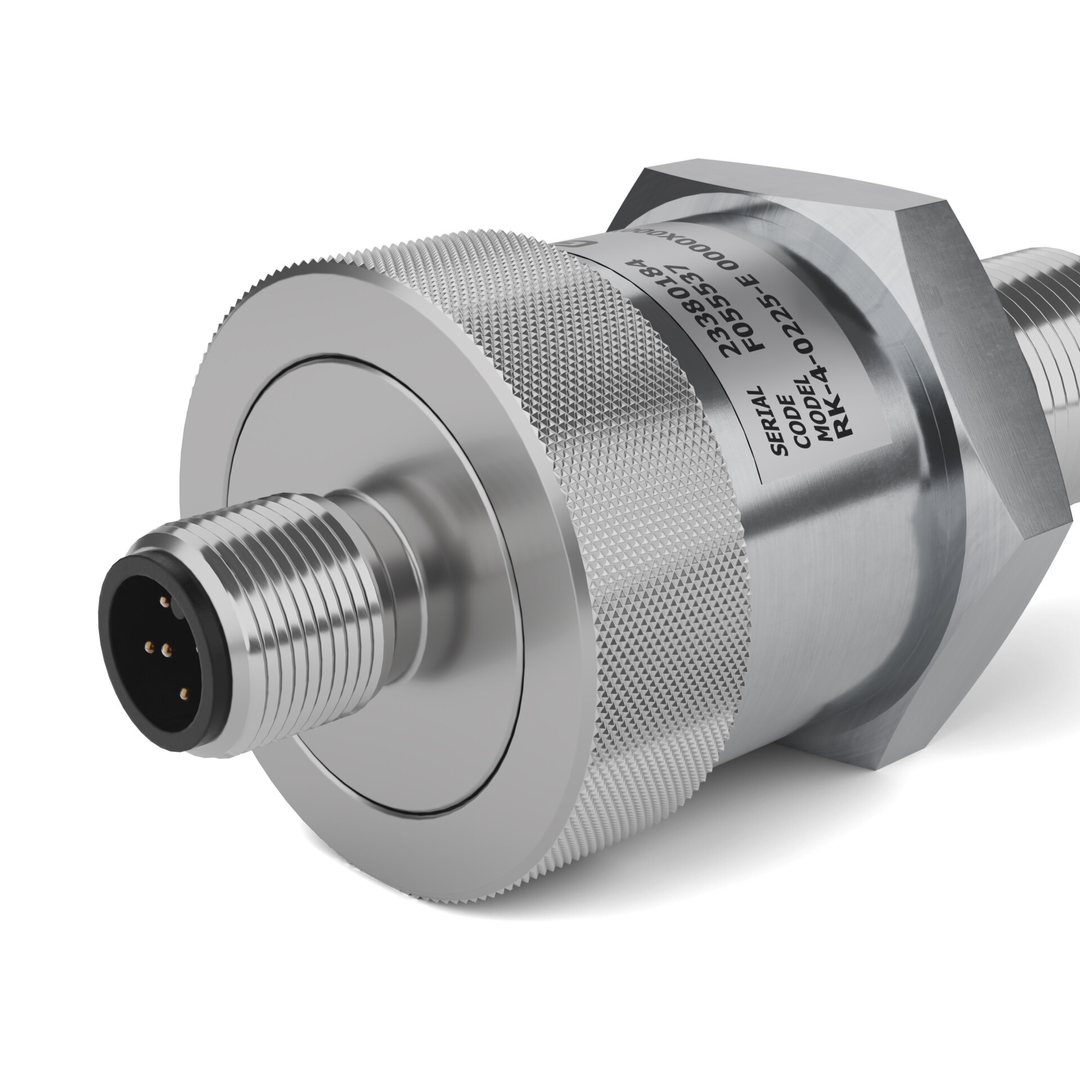

RK-4
Compact Contactless – Magnetostrictive – ROD Thread AISI 316 – Analogues Outputs –
Main features
- Absolute transducer
- Strokes from 50 to 2500mm (RK-4-_ _ _ _ -N/E/S)
- Direct analog output (RK-4-_ _ _ _ -N/K/E)
Available resources
2D/3D files
– BECCC1B8-CF12-4F93-BC3C-285409AFBD8D_RK-4_0200.ZIP
Brochure
– Position Transducers
– Gefran product range brochure
User Manual
– Manual of Electrical Installation of Contactless Magnetostrictive
– MK4/WPP/WPA/IK4/WRG/WRP/WRA/RK4/RK2 – Installation Manual
Datasheet
– RK-4 Datasheet
Certifications
– UK Conformity Declaration – RK-4
– EU Conformity Declaration – RK-4
– EU Conformity Declaration_MK, IK, ONP, RK
Technical specifications
Overview
Contactless linear position transducer with magnetostrictive technology: the absence of electrical contact on the cursor eliminates problems of wear and consumption and guarantees almost unlimited life.
The reduced dead zones and the head’s threaded shape and small size make the RK-4 series ideal for applications requiring the installation of the transducer partially inside the hydraulic cylinder as a simplified alternative compared to the models of the IK4 series.
The overall dimensions of the sensor are among the smallest available on the market.
For what concerns the output signal, the analog interface gives the displacement of a single cursor (available in the several ranges in Voltage or Current).
Excellent linearity, repeatability, resistance to mechanical vibrations and shocks complete the product’s specifications overview.
