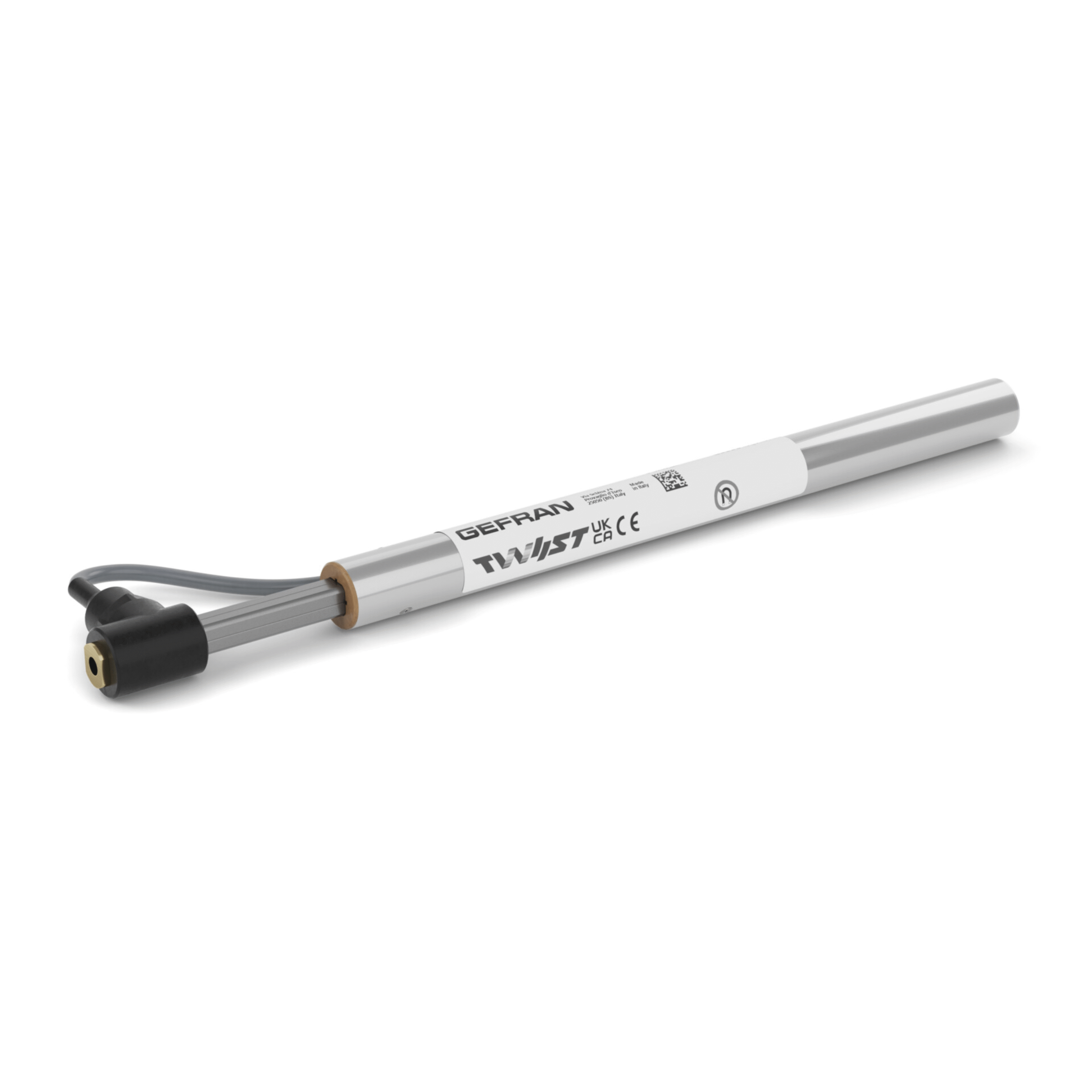

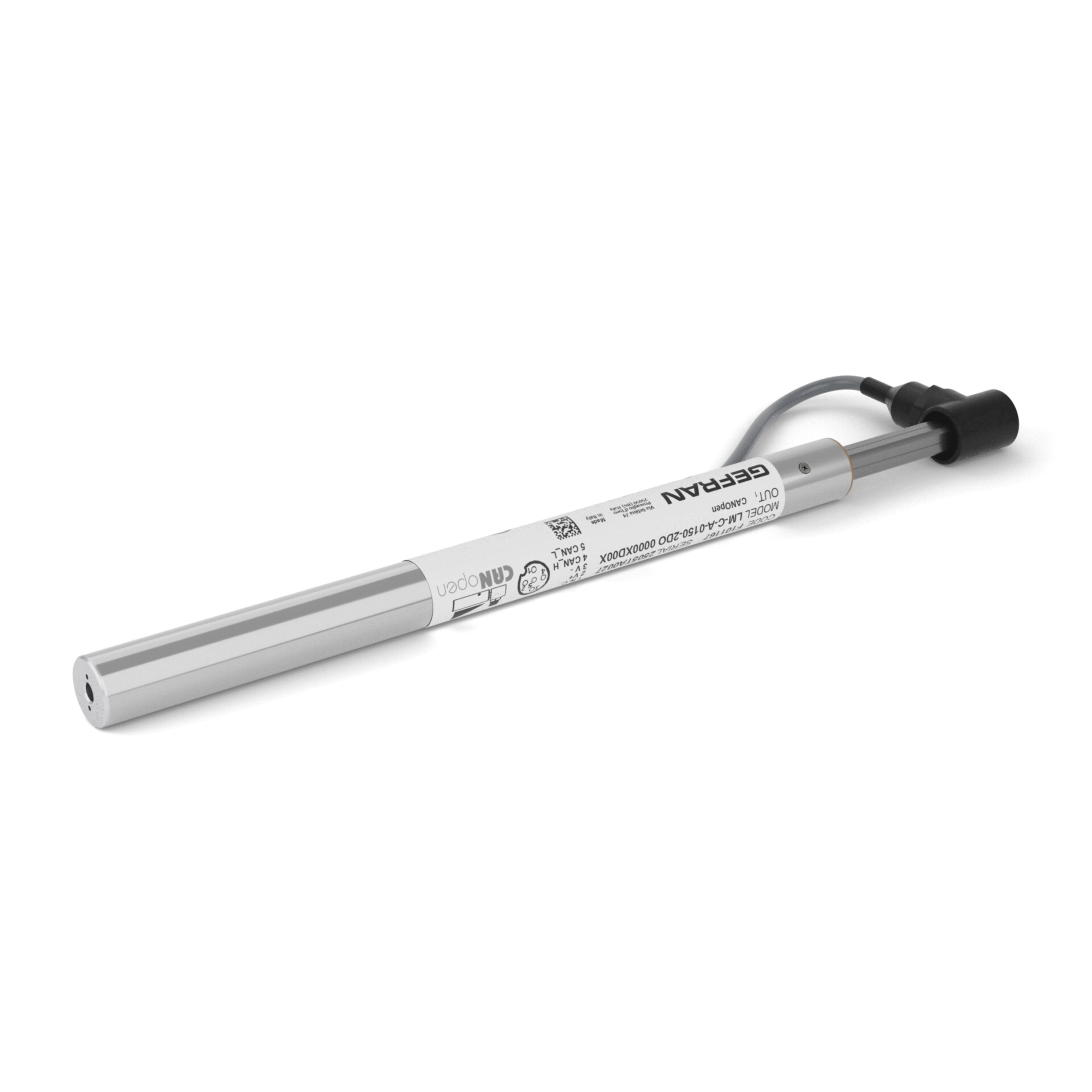

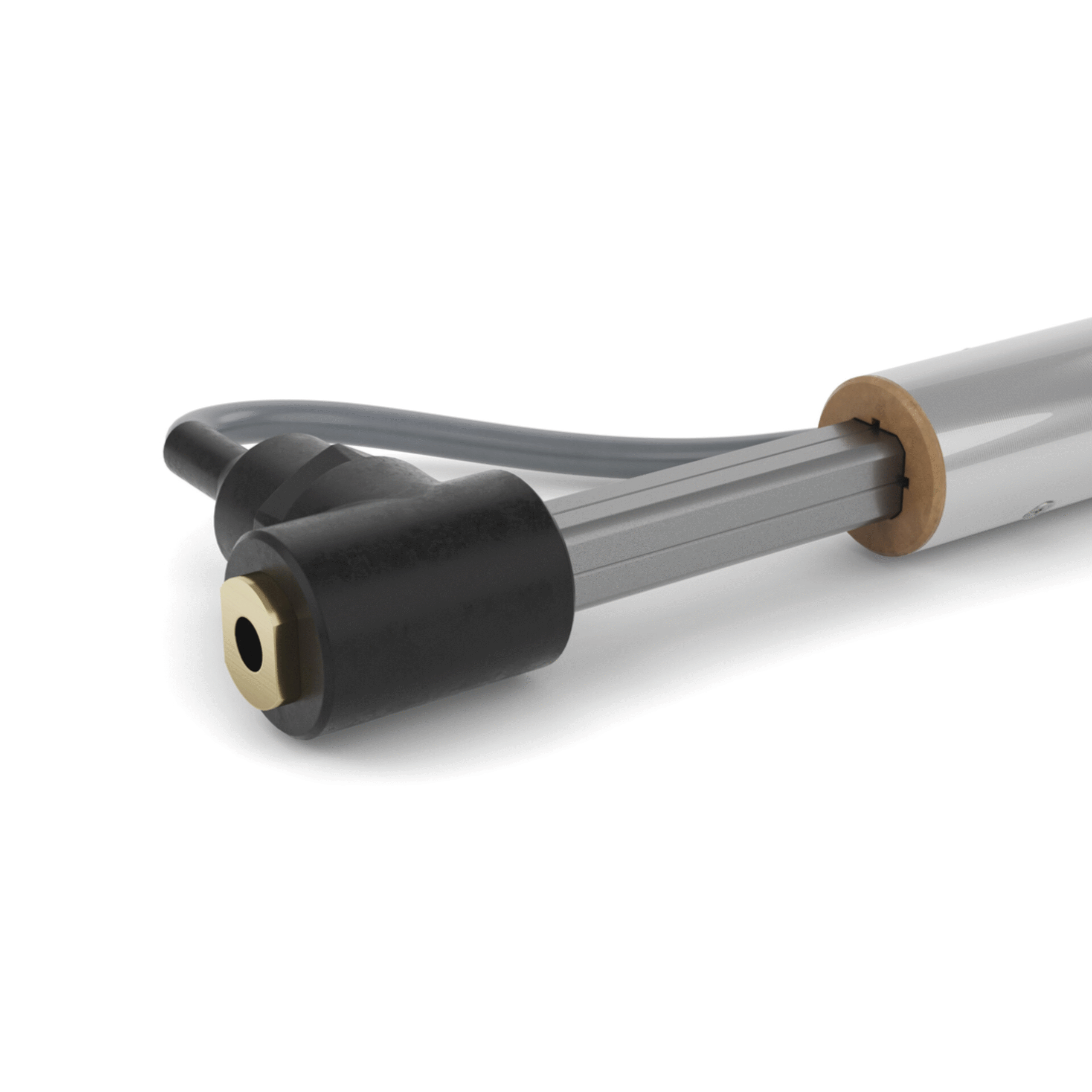

LM-C
Contactless with TWIIST technology – Multivariable – CANopen
Main features
- Strokes from 100 to 1000mm
- Measurement: position, velocity, triaxial tilt, acceleration and vibration, electronics temperature
- CANopen output
Available resources
Brochure
– Position Transducers
– Gefran product range brochure
– Solutions for mobile hydraulics
Catalogue
– 4.0 plastic application catalogue
Fieldbus Configuration Files
– EDS CONFIGURATION FILE(LM-C)
Flyer
– TWIIST – FLYER
Datasheet
– LM-C – DATASHEET
User Manual
– LM-C – USER MANUAL
– LM-C, LM-L, LS-A – INSTALLATION MANUAL
Certifications
– Conformity declaration EU – LMC
– UK Conformity declaration
Technical specifications
Overview
Contactless linear position transducer with TWIIST patented technology for longer lifetime. The absence of contact on the sensing element allows to obtain a fully-sealed, robust and compact sensor.
The high performance in terms of robustness, thermal stability and EMC immunity make the LM-C series suitable for use both in industrial environments and mobile hydraulics applications. The possibility to measure additional variables with respect to position (speed, triaxial inclination, acceleration and vibration, electronics temperature) combined with the CANopen protocol, allows to benefit from the advantages of Industry 4.0 in terms of preventive product and process maintenance.
