Main features
- Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
- Fluid-filled system for temperature stability
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Datasheet
– W7 SIL2 DATASHEET
Certifications
– UK Conformity declaration – Melt W min 500bar SIL 2
– UK Conformity declaration – Melt W min 500bar SIL 2
– Melt SIL2 Certification
– EU Conformity declaration_W series FS min 500bar SIL 2
– EU Conformity declaration_W series FS over 500bar SIL 2
Technical specifications
Overview

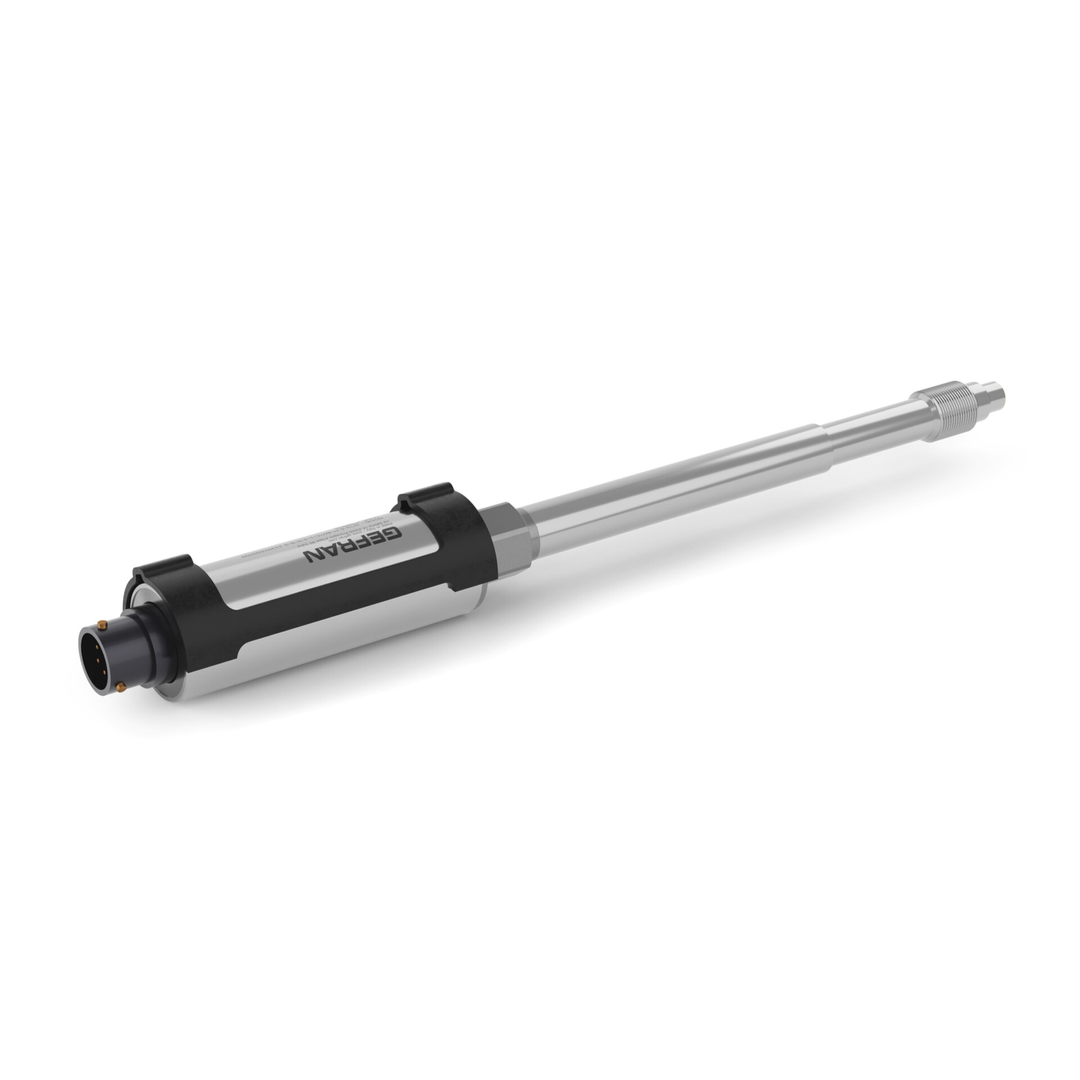

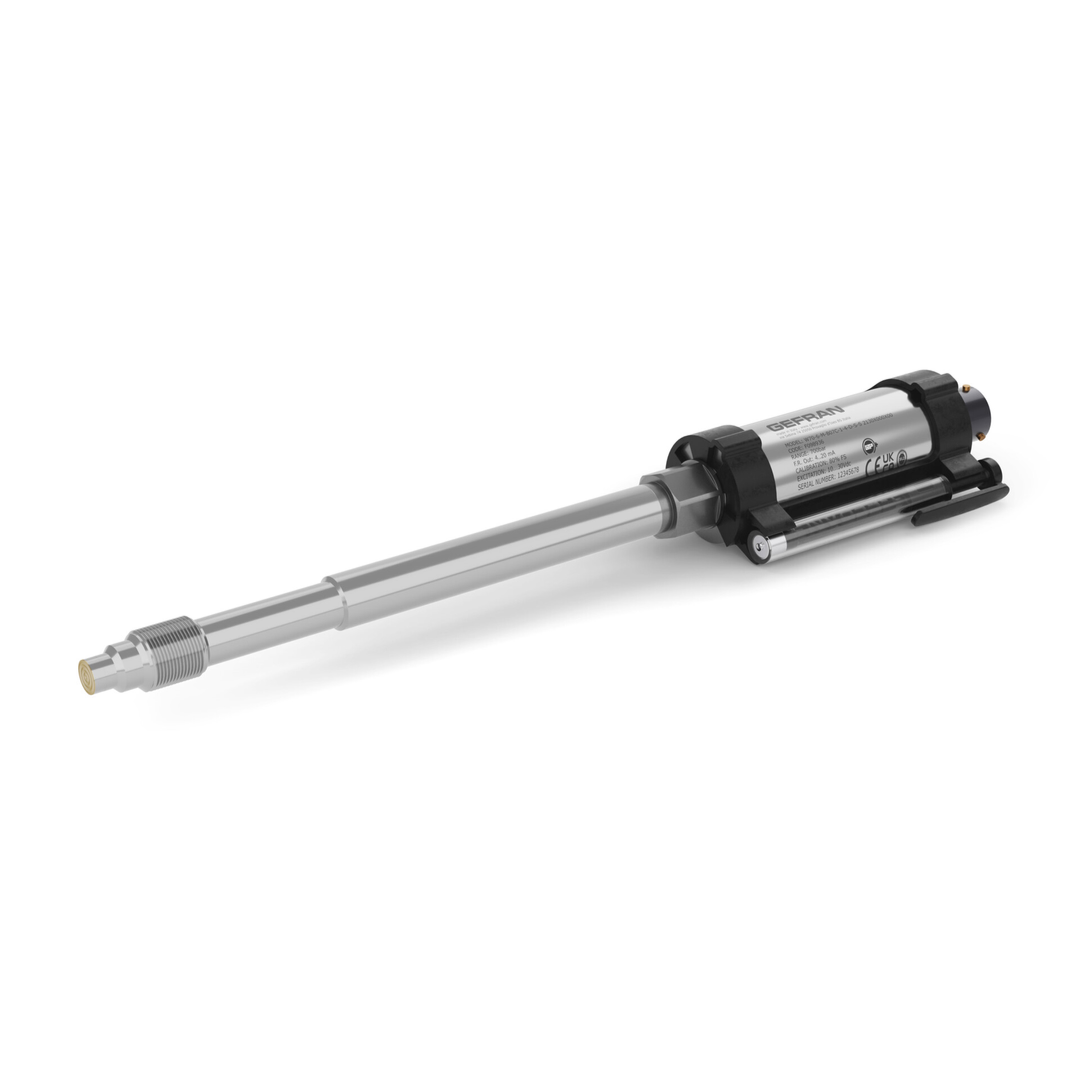

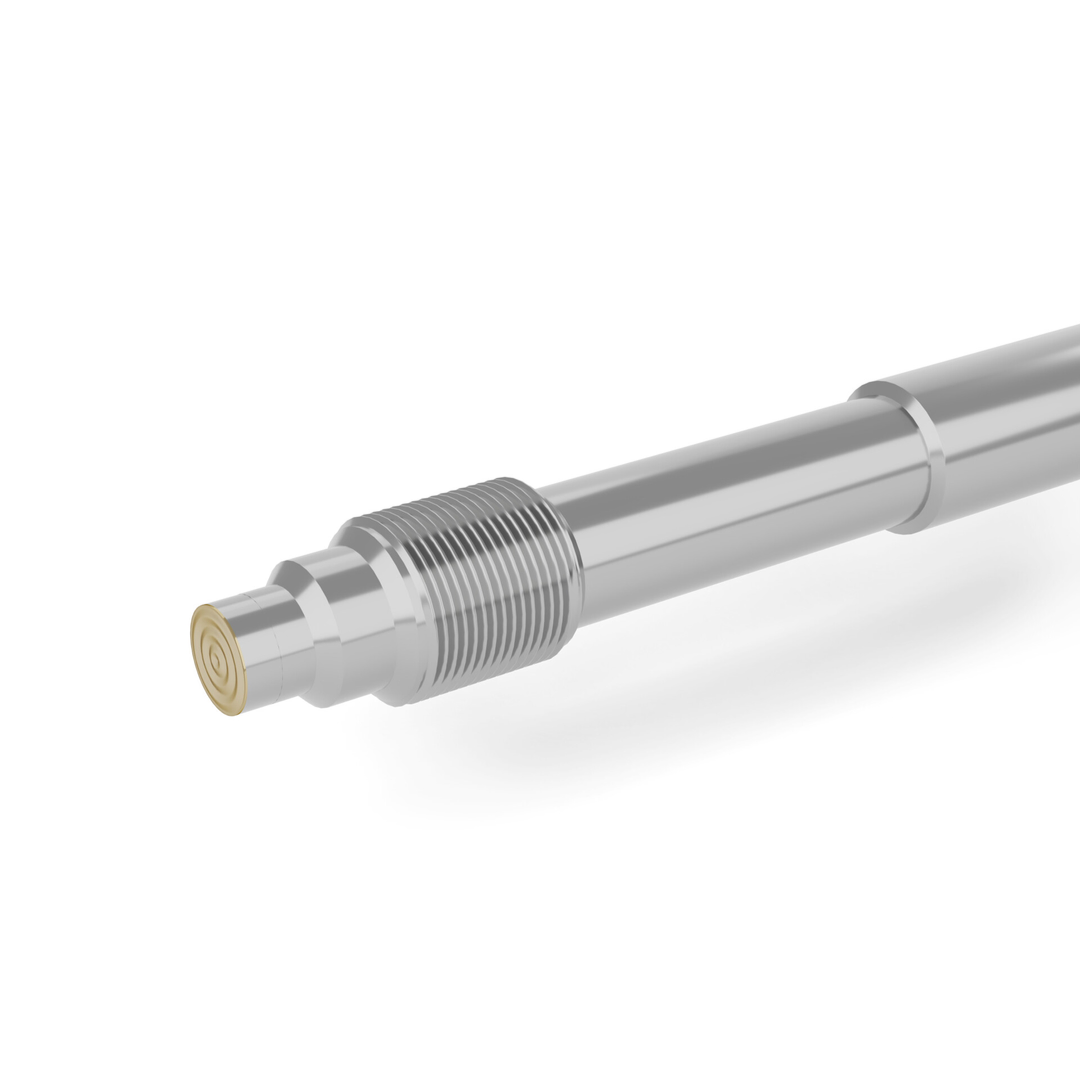

The W7 series of Gefran, are pressure transmitters for using in High temperature environment. The main characteristic of this series is the capability to read temperature of the media up to 315°C. The constructive principle is based on the hydraulic trasmission of the pressure. The fluid-filled system assures the temperature stability. The phisical quantity is transformed in a electrical measure by means the thick film strain-gauge technology. The SIL2 certified version makes the product suitable for use in the Functional Safety applications, particularly in the process plants for the production of polymers, where it is an assential requirement.
