KMC

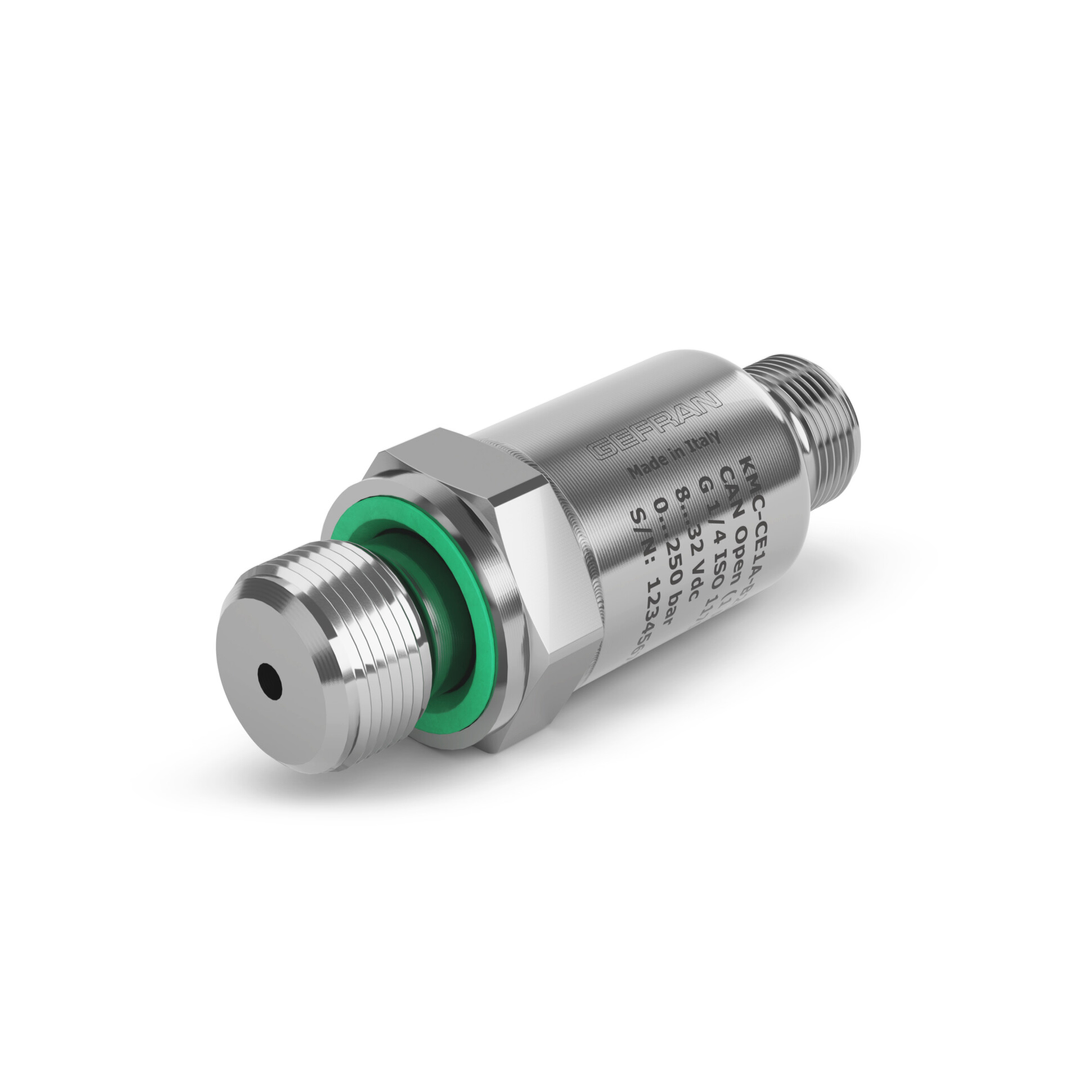

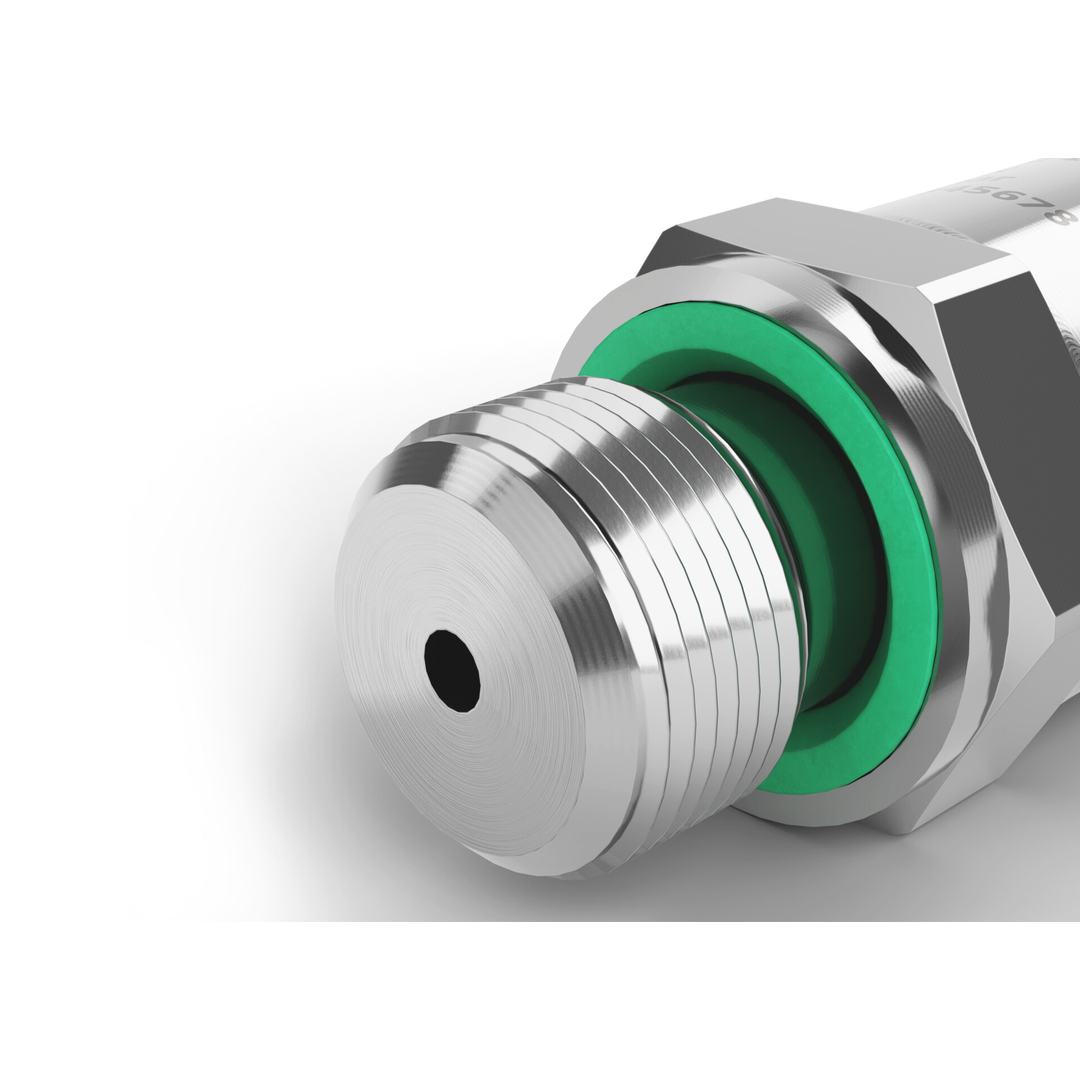

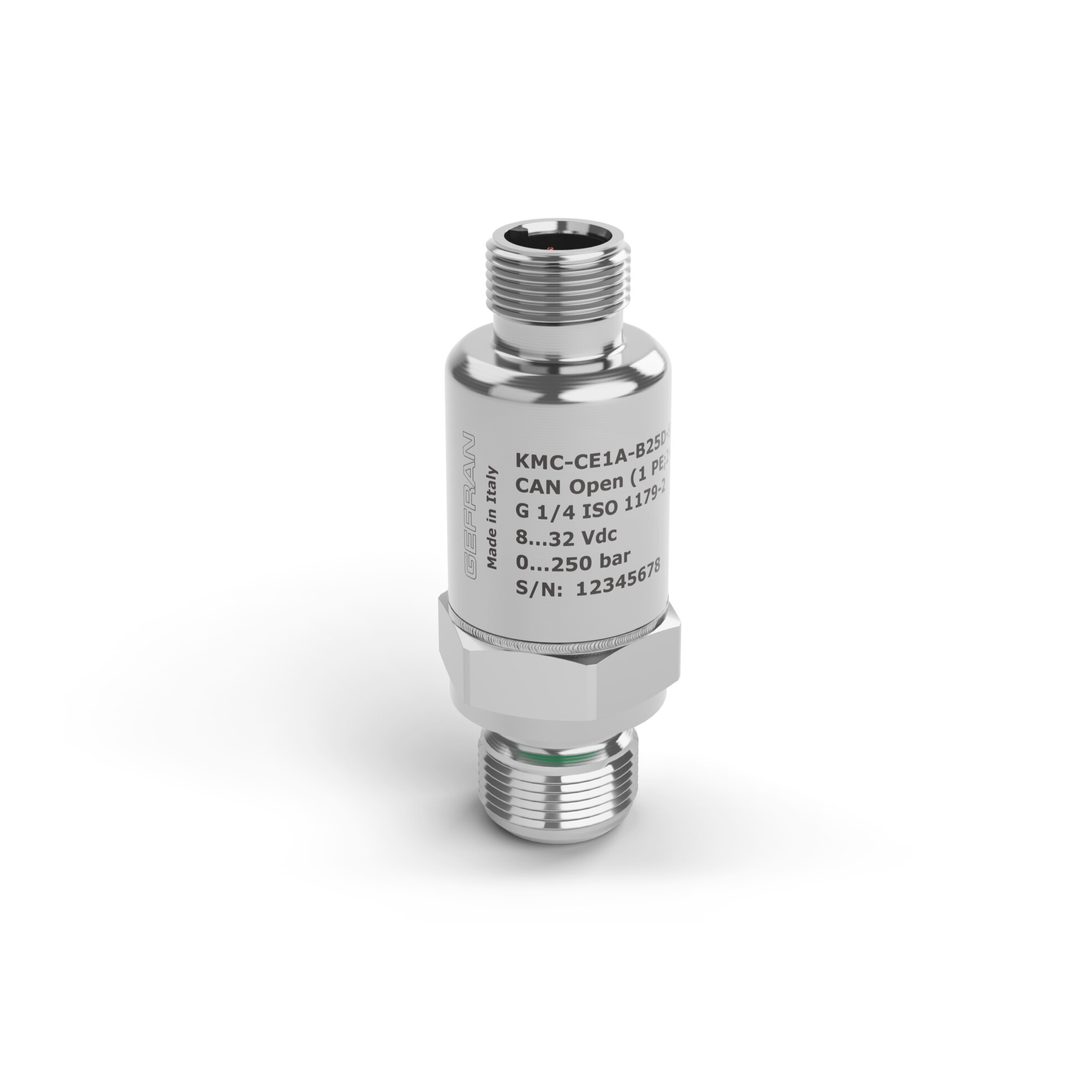

Ultracompact pressure transducers with CAN Open, J1939, CAN Open Safety output
Main features
- Designed for mobile hydraulics
- Digital outputs: CAN Open, CAN Open Safety and J1939
- SIL2/PLd, E1
Available resources
Brochure
– Gefran product range brochure
Fieldbus Configuration Files
– EDS Configuration file (KMC Safety)
– EDS Configuration file (KMC)
Datasheet
– KMC – Datasheet
Flyer
– KMC – Flyer
User Manual
– KMC – User Manual
User Manual – Fieldbus
– KMC CanOpen – User Manual
– KMC CanOpen Safety – User Manual
– KMC J1939 – User Manual
Software
– KMC Safety CRC Calculator
Certifications
– UK Conformity declaration KM_SIL2_PLd
– EU_Conformity declaration KM_SIL2_PLd
– E1 Homologation KM_KMC
– SIL2 Pld certification – KMC
– UK Conformity declaration KMC
– EU_Conformity declaration KMC
Technical specifications
Overview
KMC pressure transmitters are based on film sensing element deposited on stainless steel diaphragm.
Thanks to the latest state of the art SMD electronics and compact all stainless steel construction, this products are extremely robust and reliable, specially suitable for mobile hydraulics applications.
In particular the KMC series combines high accuracy with temperature stability, resistance to extreme environmental conditions and CAN digital output with mobile hydraulics typical protocols.
Developed to ensure a robust and high-performance solution for applications such as agricultural machines, contruction machines and material handling equipments.
The digital signal, in addition to the pressure measurement, also contains the data related to the temperature of the device.
