HIX
IMPACT fluid free – HART – ATEX – IECEx – EAC – PAC – SIL2 – PLd – KCs – Nepsi Ex – PESO
Main features
- Fluid-free” solution without filling fluids
- Measuring ranges: 0-10 to 0-1000 bar / 0-150 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
Available resources
2D/3D Files
– HIX – 2d/3d
Brochure
– Melt pressure sensors
– Gefran product range brochure
Device Description Files
– H pressure transmitter description file
– H pressure transmitter description files for HH475
– H pressure transmitter description file rev. 2
Catalogue
– 4.0 plastic application catalogue
User Manual
– HIX – HIE User Manual
– HIX Safety note
Datasheet
– HIX Datasheet
Flyer
– Flyer Melt for Polymers
Certifications
– PAC – PATTERN APPROVAL CERTIFICATE HMX/HWX/HIX – KAZAKISTAN (LINGUA KAZAKA)
– PAC – PATTERN APPROVAL CERTIFICATE HMX/HWX/HIX – KAZAKHSTAN (RUSSIAN LANGUAGE)
– PAC – PATTERN APPROVAL CERTIFICATE HMX/HWX/HIX – RUSSIA
– NEPSI Ex APPROVAL CERTIFICATE – HMX/HWX/HIX
– PESO- Petroleum & Explosives Safety Organisation CERTIFICATE HMX/HWX/HIX
– KCS APPROVAL CERTIFICATE_HIX
– EAC Ex certification HMX_HWX_HIX_KX
– SIL2/PLd CERTIFICATION HIX/HIE SERIES
– IECEx Certificate of Conformity – Pressure transmitters HART series HMX, HWX, HIX
– EU Conformity declaration_HIX PL d
– EU Conformity declaration_HIX SIL 2
– EU Conformity declaration_HIX
– ATEX Certification – HMX/HWX/HIX/AX DNV 21 ATEX 81471
– Hart Certifications
– GTP+ FDA Certificate
Technical specifications
Overview

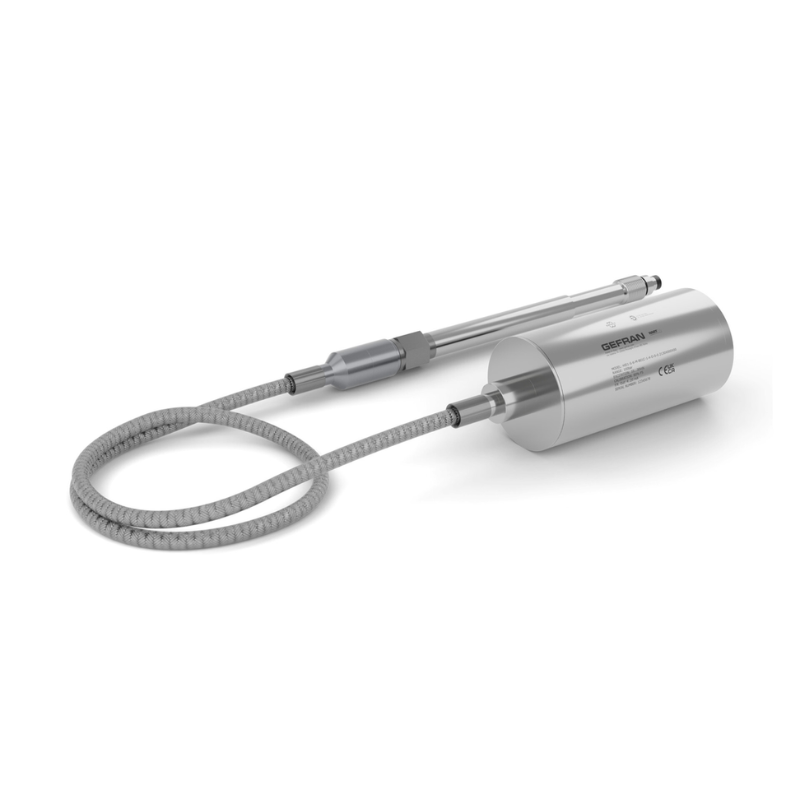

The “IMPACT” series sensors are pressure transmitters, without transmission fluid, designed for use in high temperature environments (350°C).
The media pressure is transferred through a thick membrane directly to the silicon sensing element.
The main characteristic of the “IMPACT” sensors is that they do not contain any transmission fluid inside.

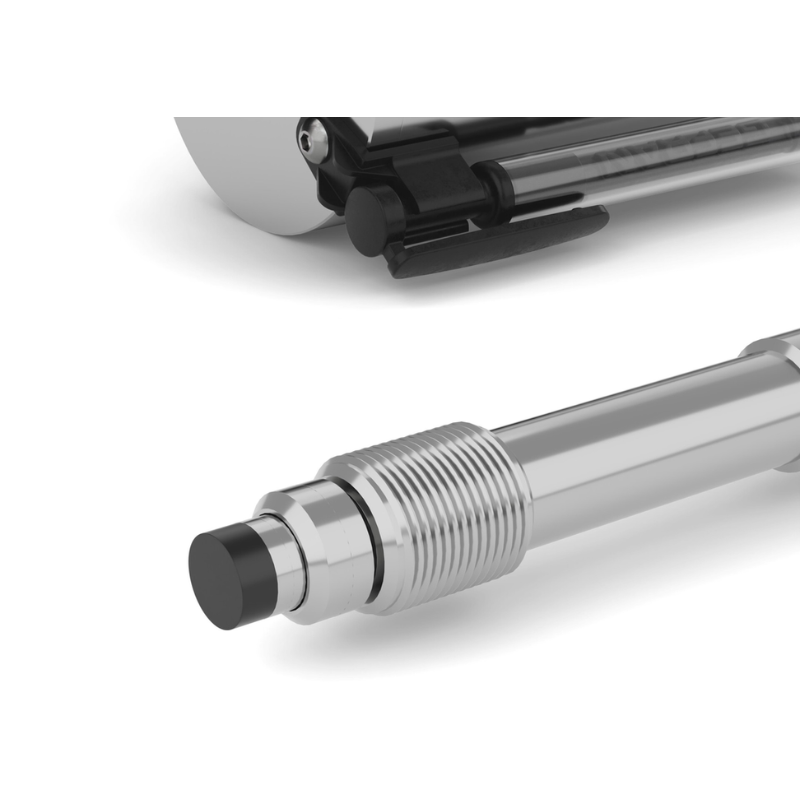

The sensing element, directly positioned behind the contact membrane, is made by silicon through micromachining techniques and the minimum deflection necessary to the sensing element, allows the use of very strong mechanics, with a process membrane 15 times thicker than the membranes used in traditional Melt sensors.

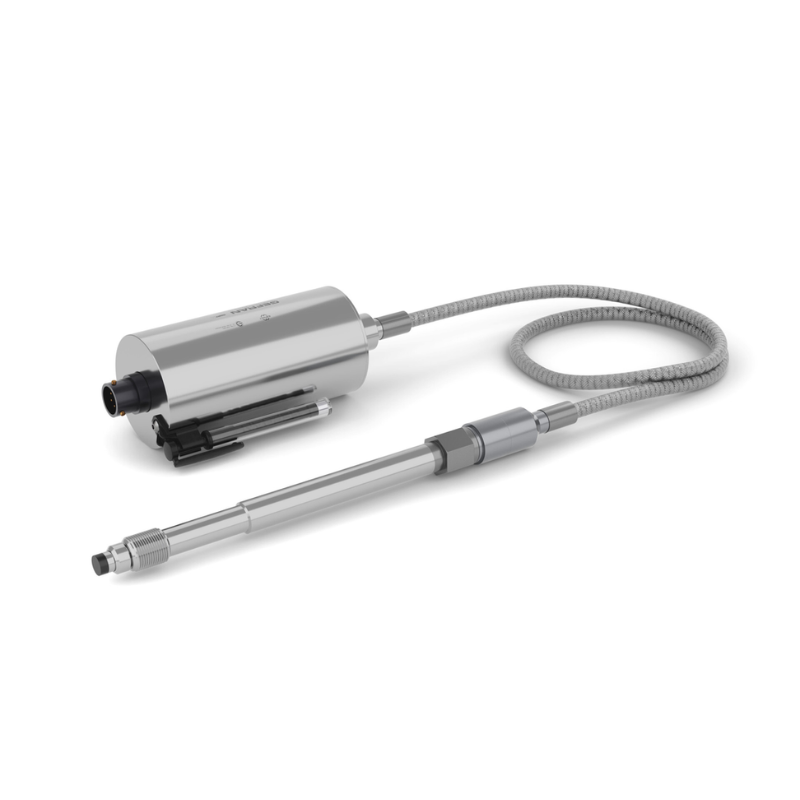

The new “HIX” series combines Impact technology with Smart/Hart digital technology, with in addition the “Atex” certification for use in hazardous areas, and SIL2 and PLd certifications for functional safety applications.
All these features make the “HIX” series particularly suitable for applications in process plants especially for the production of polymers, fibres and resins.
