Main features
- Perfomance Level “d” and SIL2 compliance
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M) Pressure ranges: 0-10 to 0-1000 bar / 0-150 to 0-15000 psi
Available resources
2D/3D Files
– ILI – 2d/3d
Brochure
– Melt pressure sensors
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Datasheet
– ILI Datasheet
User Manual
– PRESSURE SENSORS FOR HIGH TEMPERATURE IO-Link IMPACT USER MANUAL
Flyer
– Melt IO-Link
Certifications
– EU CONFORMITY DECLARATION_IMPACT ILI SIL2 PLd
– UK Conformity declaration – IMPACT ILI SIL 2 RLd
– UK Conformity Declaration – IMPACT ILI
– EU CONFORMITY DECLARATION_IMPACT ILI SIL2 PLd
– SIL2/PLd certification ILI series
Technical specifications
Overview

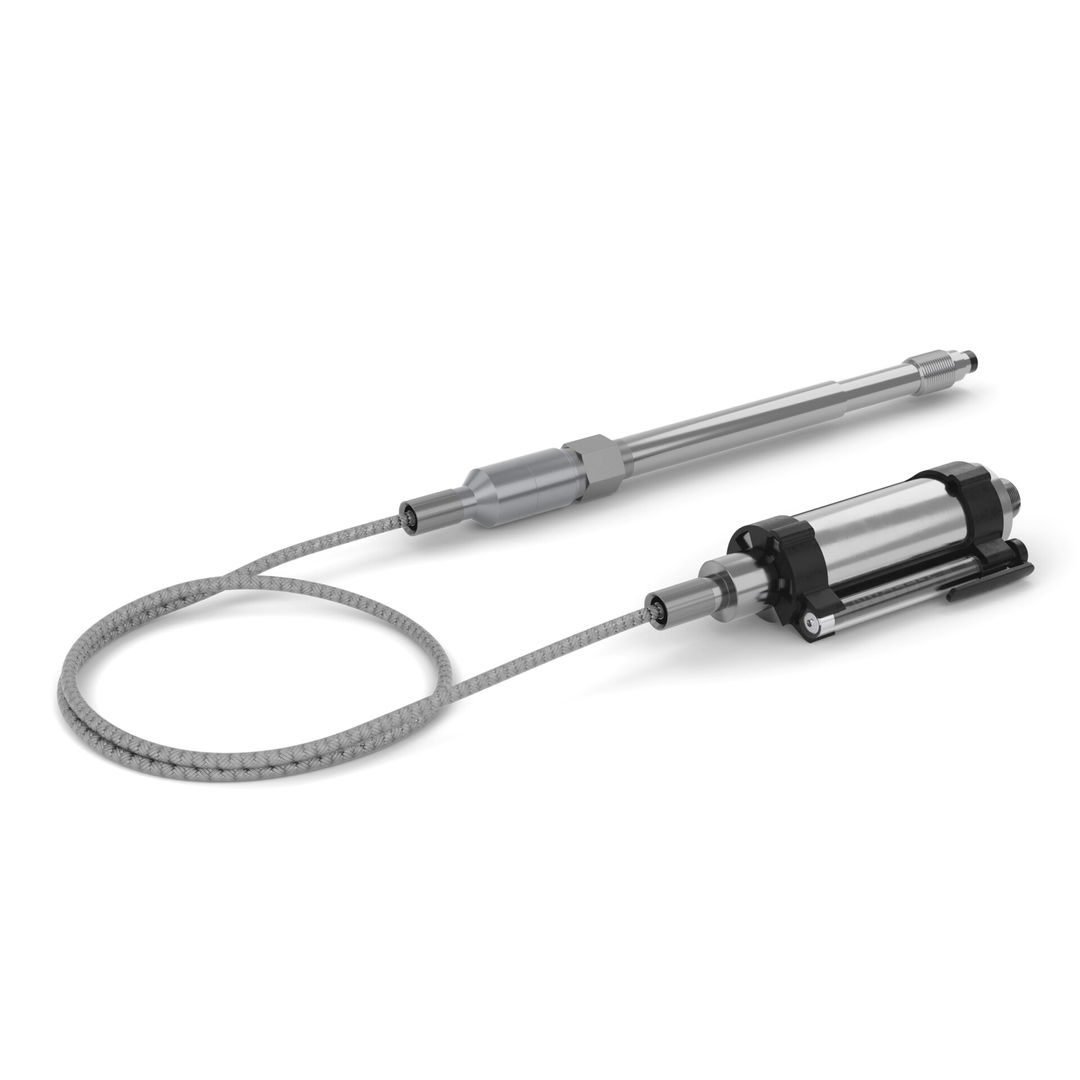

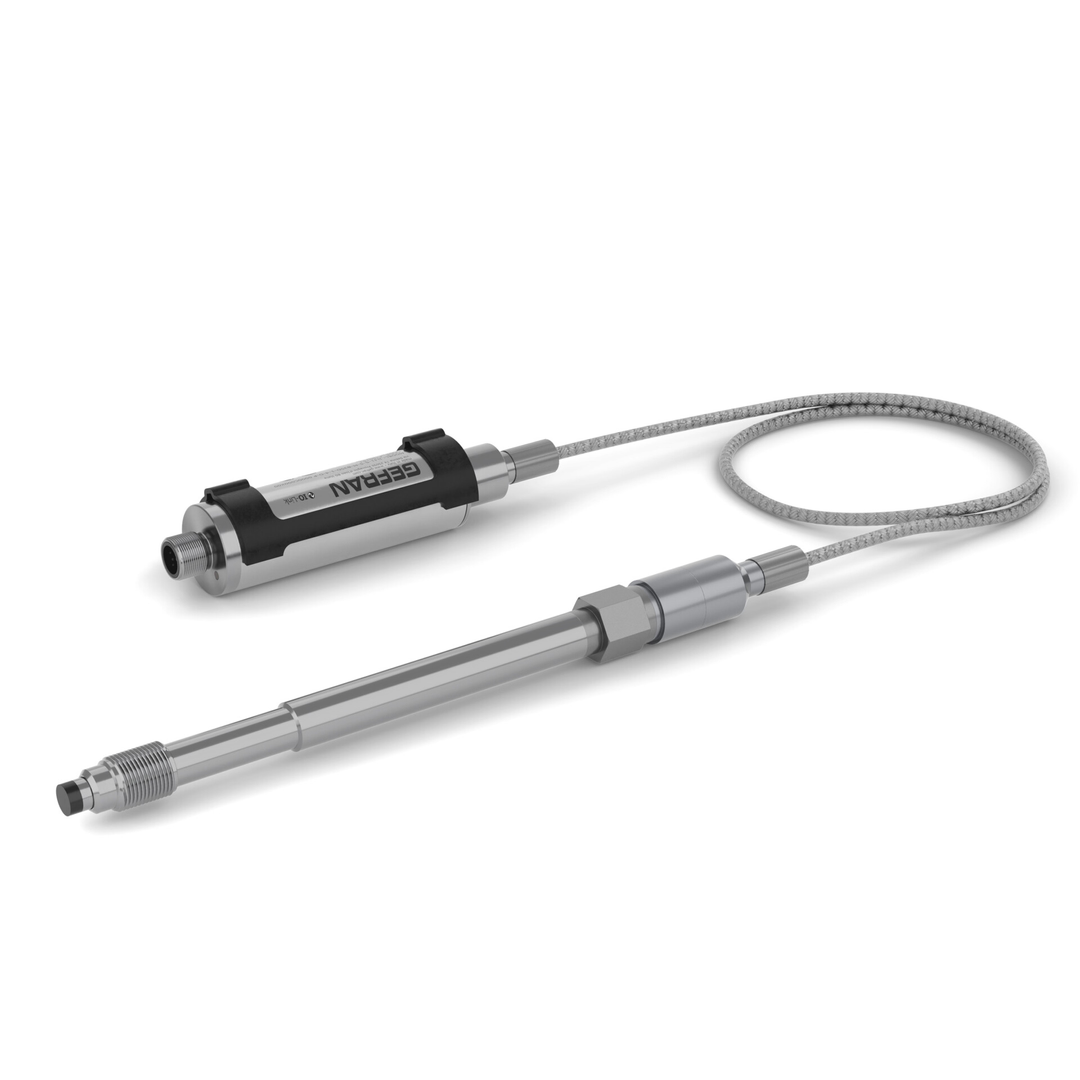

The “IMPACT” series of Gefran, are pressure transmitters, without transmission fluid, for using in High temperature environment (350°C).
Medium pressure is transferred directly to the sensitive silicon element via a thick diaphragm. Strain is transduced by a micro-worked silicon structure (MEMS) and the operating principle is piezoresistive.
This new series “ILI” with “IO-Link” digital output is a Smart device specifically designed to meet the requirements of “Industry 4.0” environment, with auxiliary information suitable to prevent machine downtime.
The main characteristic of “IMPACT” sensors is that they do not contain any transmission fluid.
The minimum deflection required by the sensitive element makes it possible to use very robust mechanics.

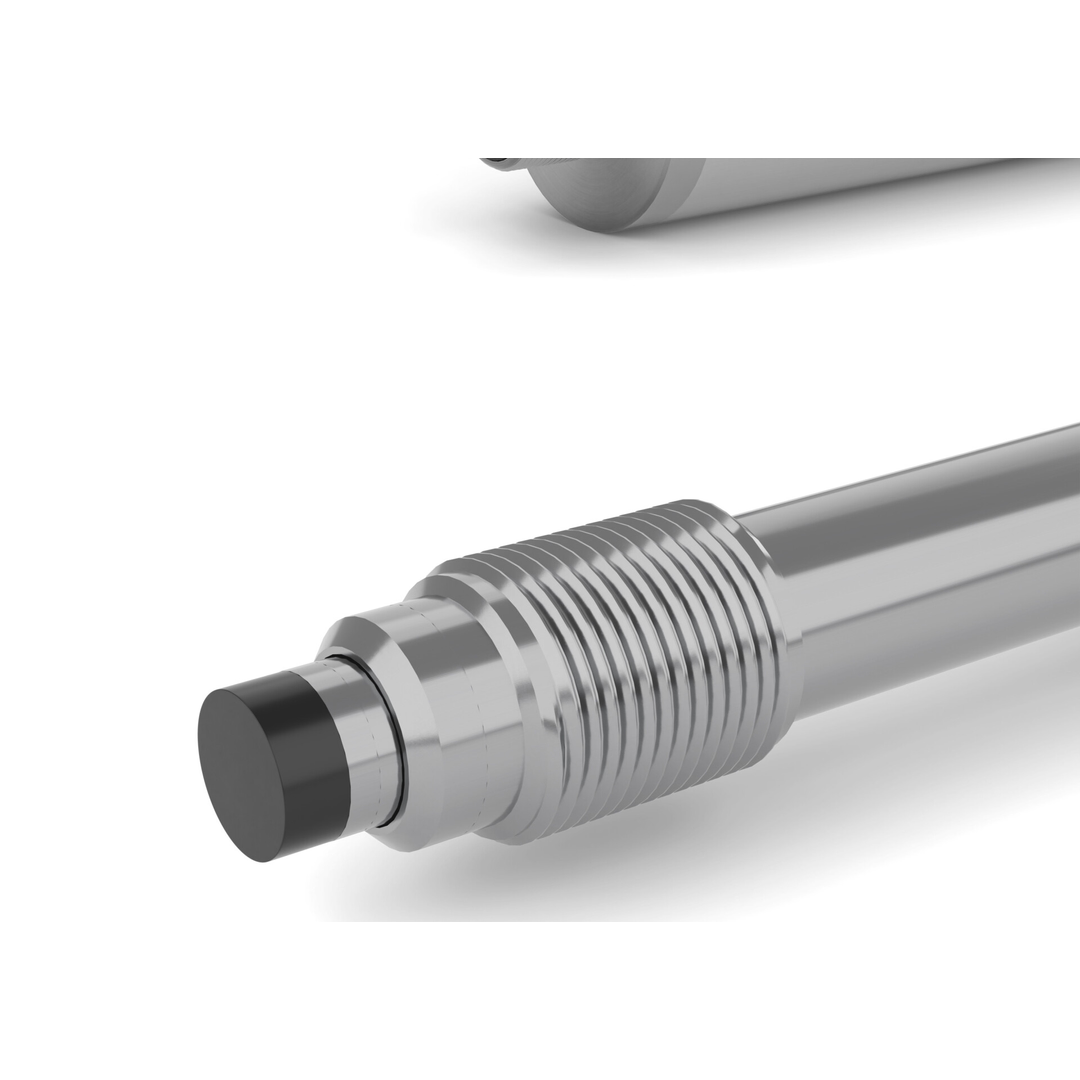

The process contact membrane can be up to 15 times thicker than the membrane used in traditional Melt sensors.
Suitable for Functional Safety applications thanks to PLd and
SIL2 approvals.
