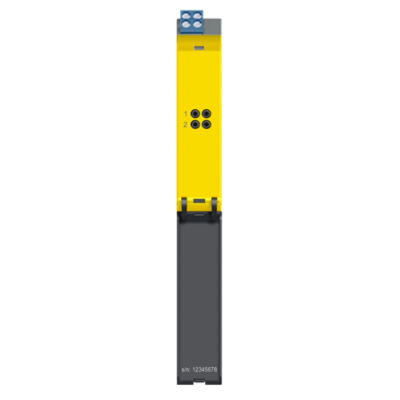

VEGATRENN 152
Separator for 4 … 20 mA sensors
Double channel , passive
Application area
The double channel VEGATRENN 152 is used for galvanic separation, intrinsically safe applications as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separator is ideal in conjunction with controllers without own Ex approval. The VEGATRENN 152 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.
Your benefit
- Simple installation because no additional voltage supple required
- Simple installation though carrier rail mounting as well as detachable, coded terminals
- Reliable separation of intrinsically safe and non-intrinsically safe measuring circuits (use in hazardous areas is optional)
Technical specifications
Protection rating
- IP20
Input
- 2 x 4 … 20 mA sensor input
Output
- 2 x 4 … 20 mA
Ambient temperature
- -20 … 60 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- NEPSI / China
- UKR Sepro / Ukraine
SIL qualification
- SIL2
Documentation
Separating and protective instruments
VEGATRENN 141, 142, 151, 152
VEGATRENN 152
4 … 20 mA/HART
VEGATRENN 152
4 … 20 mA/HART
