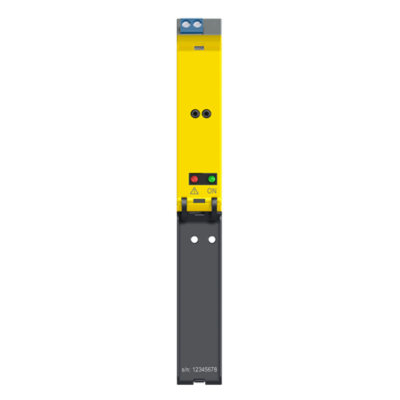

VEGATRENN 141
Single channel separator for 4 … 20 m/HART sensors
Single channel , active
Application area
The single channel VEGATRENN 141 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 141 is used in all industries als with Ex applications. The VEGATRENN 141 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.
Your benefit
- Simple installation though carrier rail mounting as well as detachable, coded terminals
- Complete HART permeability enables free access to sensor settings
- Universally applicable Ex separator for all 4 … 20 mA/HART sensors (use in Ex area is optional)
- Universal all-current power supply unit for supplying the device and the connected sensor
Technical specifications
Protection rating
- IP20
Input
- 1 x 4 … 20 mA/HART sensor input
Output
- 1 x 4 … 20 mA
Ambient temperature
- -20 … 60 °C
Approvals
Scope
- ATEX / Europe
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- NEPSI / China
- UKR Sepro / Ukraine
- c-UL-us
Explosion protection
- Intrinsic safety “i”
SIL qualification
- SIL2
Display & adjustment
Indication
- LED
Documentation
Separating and protective instruments
VEGATRENN 141, 142, 151, 152
VEGATRENN 141
VEGATRENN 141
