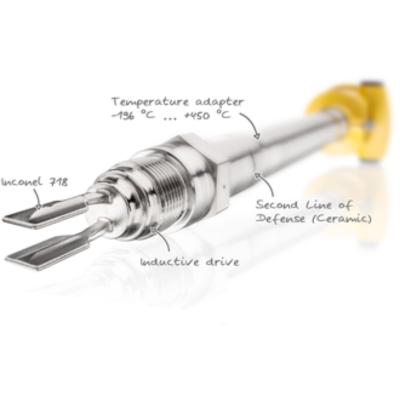

VEGASWING 66
Vibrating level switch for liquids under extreme process temperatures and pressures
For liquids (density: > 0.42 … 2.5 g/cm³) – high temperature version
Application area
Configurable both as compact version and version with tube extension up to 3 m. Numerous process fittings, approvals as well as housing and electronics versions.
VEGASWING 66 is used as a universal vibrating level switch in all liquids. In compact version or with tube extension, it detects reliably with millimetre accuracy the limit level. The instrument can be used in vessels and steam generators as empty or full detector. The VEGASWING 66 offers maximum reliability and security in a wide process temperature and process pressure range.
Your benefit
- Precise and reliable function due to product-independent switching point
- Low maintenance costs
- High reliability through monitored sensor element
Technical specifications
Process temperature
- -196 … 450 °C [°C – °F]
Process pressure
- -1 … 160 bar [Bar – kPa – psi]
Version
- Compact version
- with gas-tight leadthrough
- with tube extension
Materials, wetted parts
- 316L
- Alloy C22 (2.4602)
- Inconel 718
Threaded connection
- G1, 1 NPT, R1
Flange connection
- ≥ DN50, ≥ 2″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP67
- IP66/IP68 (1 bar)
- IP65
Output
- Relay (DPDT)
- Transistor (NPN/PNP)
- Two-wire
Ambient temperature
- -40 … 70 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- EAC (GOST) / Belarus
- EAC (GOST) / Russia
- IEC / worldwide
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
Ship approval
- BV
- GL
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Steam boiler approval
- EN12952-11, EN12953-9
Display & adjustment
Indication
- Pluggable display module PLICSLED
