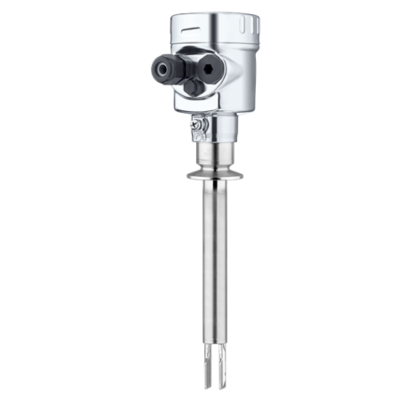

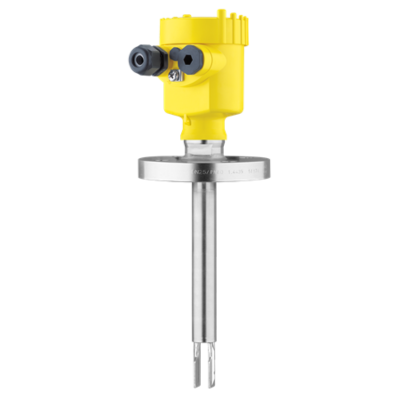

VEGASWING 63
Vibrating level switch with tube extension for liquids
For liquids (density: > 0.5 … 2.5 g/cm³) – with tube extension
Application area
The position of the switching point can be up to 6 m away from the installation site. Numerous process fittings, approvals as well as housing and electronics versions.
VEGASWING 63 is used as a universal level switch in all liquids. Independent of the mounting position it detects reliably with millimetre accuracy the level. The instrument can be used in vessels as empty or full detector, as approved overfill protection, dry run protection or pump protection. The position of the switching point is determined through the tube extension. The VEGASWING 63 offers high reliability and security in a wide application range.
Your benefit
- Precise and reliable function due to product-independent switching point
- Low maintenance costs
- Minimum time and cost expenditure thanks to simple setup without medium
Technical specifications
Process temperature
- -50 … 250 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- Standard
- Hygienic applications
- with gas-tight leadthrough
- with tube extension
- with temperature adapter
Materials, wetted parts
- PFA
- 316L
- Alloy C22 (2.4602)
- Alloy 400 (2.4360)
- ECTFE
- Enamel
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Flange connection
- ≥ DN25, ≥ 1″
Hygenic fittings
- Clamp ≥ 1″ – DIN32676, ISO2852
- Slotted nut ≥ 1½”, ≥ DN40 – DIN 11851
- Varivent ≥ DN25
- hygienic fitting F40 with compression nut
- SMS 1145 DN51
- SMS DN38
- Hygienic fittings ≥ DN25 – DIN11864-1-A
- Hygienic flange connection DIN11864-2-A; DN60(ISO)ø60,3
- SMS socket piece DN38 PN6
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP67
- IP66/IP68 (1 bar)
- IP65
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
Ambient temperature
- -40 … 70 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Foodstuffs/Pharma
- 3A
- EHEDG
- FDA
Ship approval
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- RMROS
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Indication
- Pluggable display module PLICSLED
