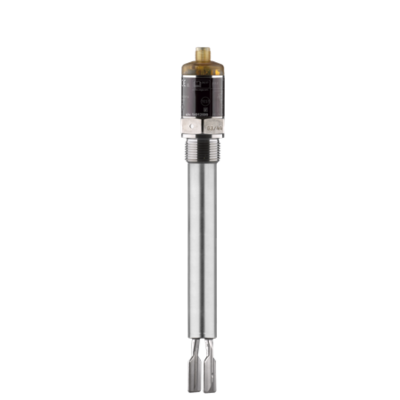

VEGASWING 53
Vibrating level switch for liquids
For liquids (density: > 0.5 … 2.5 g/cm³) – with tube extension
Application area
The position of the switching point can be up to 1 m away from the installation location.
VEGASWING 53 is a universal liquid level switch with smallest dimensions. Independent of the mounting position, it detects the limit level reliably and with millimetre accuracy. The device can be used for full or empty alarm, as approved overfill protection or dry run or pump protection in vessels and pipelines. VEGASWING 53 is an economical solution with maximum reliability and safety.
Your benefit
- Precise and reliable function due to product-independent switching point
- Low maintenance costs
- Minimum time and cost expenditure thanks to simple setup without medium
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -40 … 150 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- Standard
- Extended temperature range
- Hygienic applications
Materials, wetted parts
- 316L
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Hygenic fittings
- Clamp ≥ 1″ – DIN32676, ISO2852
- Slotted nut ≥ DN25 – DIN 11851
Seal material
- no media contact
Housing material
- Plastic
- Stainless steel
Protection rating
- IP67
- IP68
- IP65
Output
- Contactless electronic switch
- Transistor (PNP)
- IO-Link
Ambient temperature
- -40 … 70 °C
Approvals
Scope
- EAC (GOST) / Russia
- UKR Sepro / Ukraine
- CSA / USA and Canada
Foodstuffs/Pharma
- EHEDG
- FDA
- EG1935/2004
Overfill protection
- WHG
- VLAREM II
Display & adjustment
Adjustment
- PC, PACTware and DTM, IODD
