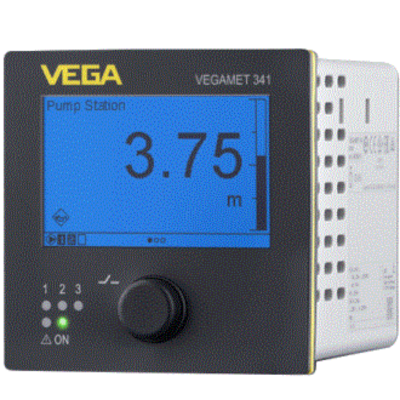

VEGAMET 341
Built-in controller and display instrument for level sensors
For one 4 … 20 mA sensor, front panel mounting
Application area
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

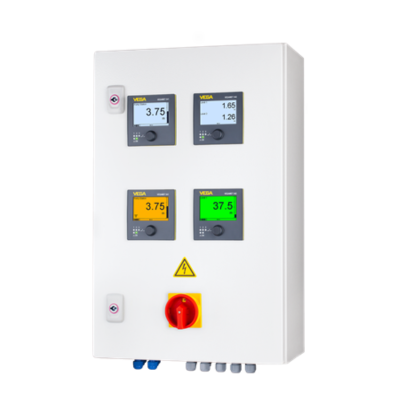

The VEGAMET 341 controller feeds the connected 4 … 20 mA sensor, processes the measured values and displays them. The installation housing is ideal for mounting in the control panel. A large display for data visualisation as well as a turn/push button for easy adjustment on site are integrated. With VEGAMET 341, limit values can be reliably monitored and relays, e.g. for overfill protection according to WHG, can be switched. The multifunctional instrument enables pump switching, flow measurement in open flumes or on weirs and summation. Due to its various possibilities, it is suitable for many industrial sectors as well as plant manufacturers.
Your benefit
- Complex programming of control tasks is no longer necessary
- Simple and safe setup and diagnosis of measuring points via smartphone
- Easy-to-read display from a distance, even in sunlight and darkness
Technical specifications
Protection rating
- IP20/IP40
Input
- 1 x 4 … 20 mA sensor input
Output
- 1 x 0/4 … 20 mA current output
- 3 x operating relay
- 1x failure relay (instead of operating relay)
Ambient temperature
- -20 … 60 °C
Approvals
Scope
- ATEX / Europe
- IEC / worldwide
- UKEX
Explosion protection
- Intrinsic safety “i”
Display & adjustment
Adjustment
- Smartphone / Tablet / PC via Bluetooth
- On-site operation with turn/push button
Indication
- LCD matrix display, black and white

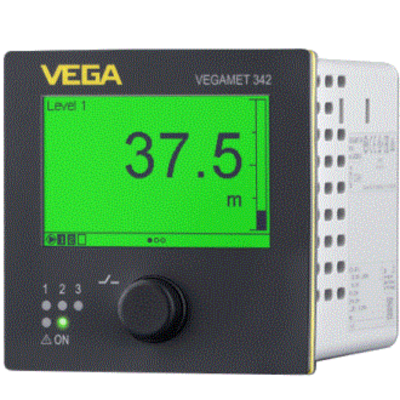

- Backlight with colour change acc. to status
