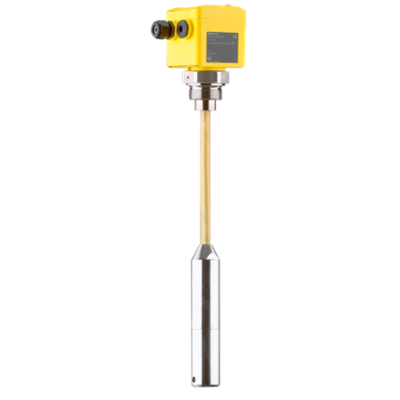

VEGACAP 98
Adjustment-free, capacitive rod probe for level detection
Rod probe, made of PP
Application area
For liquids and bulk solids, adjustment-free setup, Sensor length up to 2 m
The VEGACAP 98 is an adjustment-free, economical level sensor for liquids and bulk solids. It is particularly suitable as overfill protection or dry run protection system in adhesive, conductive products. The VEGACAP 98 works in products from a dielectric constant of 1.5. The process fitting is a G1½ thread.
Your benefit
- Long lifetime and low maintenance requirement through robust mechanical construction
- Minimum time and cost expenditure thanks to simple setup without medium
- Exact switching point even with strong buildup
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -40 … 80 °C [°C – °F]
Process pressure
- 1 … 1 bar [Bar – kPa – psi]
Materials, wetted parts
- PP
Threaded connection
- G1½
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
Protection rating
- IP66/IP67
Output
- Relay (DPDT)
Ambient temperature
- -40 … 80 °C
Approvals
Overfill protection
- WHG
Display & adjustment
Adjustment
- Adjustment
Indication
- Indication
