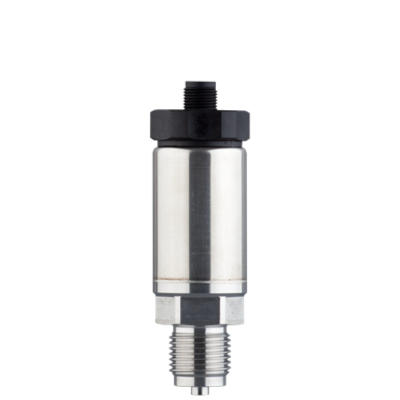

VEGABAR 18
Pressure transmitter
With ceramic measuring cell, basic version
Application area
4 … 20 mA, thread ½”
VEGABAR 18 is a universal pressure transmitter with 4 … 20 mA output and ceramic measuring cell for measurement of gases, vapours and liquids up to 100 °C. VEGABAR 18 is an economical solution for a variety of applications in all industrial sectors.
Your benefit
- High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
- Price-favourable version with small mounting dimensions
Technical specifications
Measuring range – Pressure
- 0 … 25 bar [Bar – kPa – psi]
Process temperature
- -40 … 100 °C [°C – °F]
Accuracy
- 0,5 %
Materials, wetted parts
- 316L
- Ceramic
Threaded connection
- ≥ G½, ≥ ½ NPT
Seal material
- FKM
Protection rating
- IP66/IP67
Output
- 4 … 20 mA
Ambient temperature
- -40 … 70 °C
Documentation
Process pressure
VEGABAR 18, 19, 28, 29, 38, 39
VEGABAR 18
Two-wire: 4 … 20 mA
VEGABAR 18
Two-wire: 4 … 20 mA
Connection cable
Welded socket, thread and hygienic adapter – Device series 10, 20, 30, 42, 50
