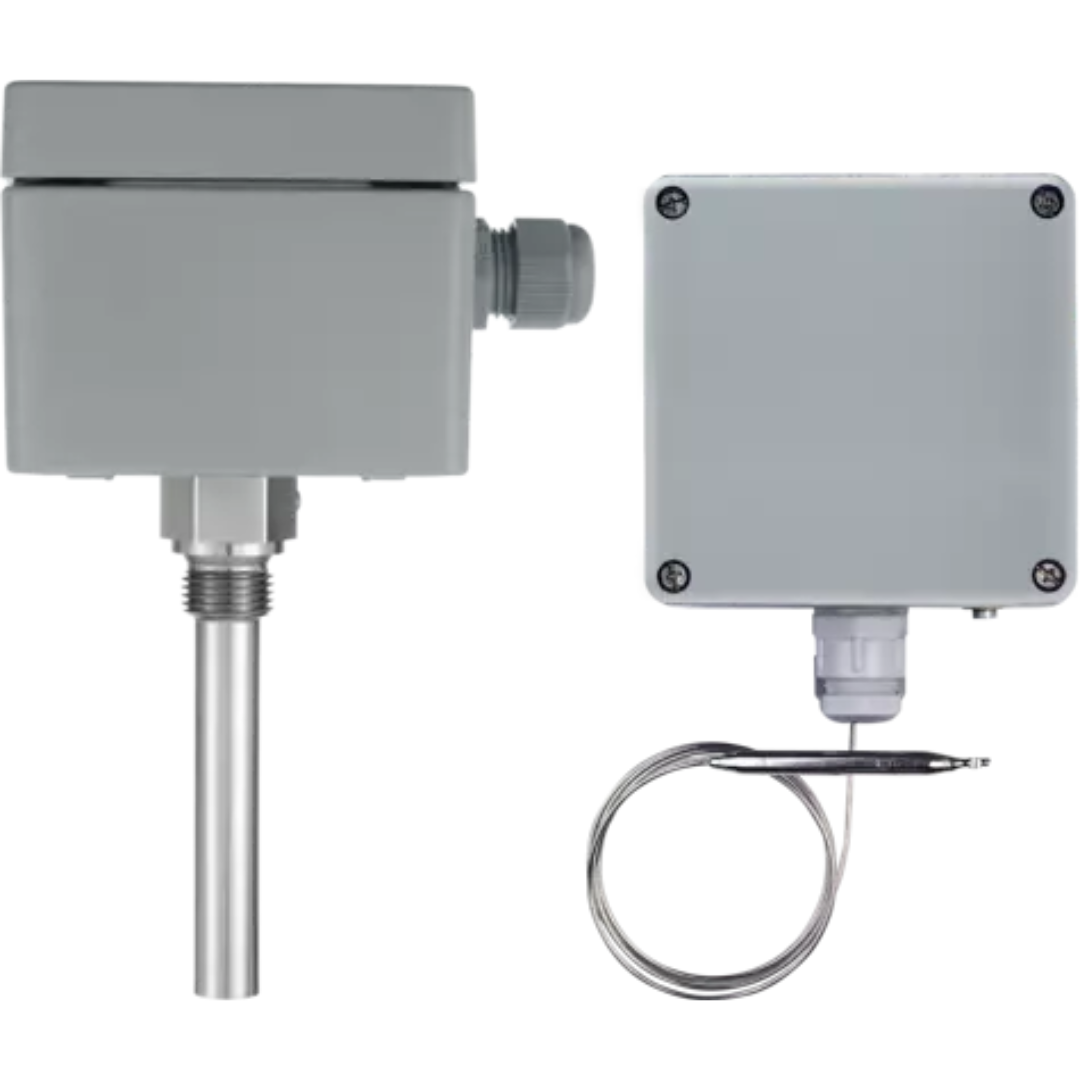

Surface-mounted single thermostat or surface-mounted double thermostat

Surface-mounted thermostats of the ATH-SW type series consist of 1 or 2 separate measuring and switching systems. The devices are available as temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB).

Categories: Monitors & limiters, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Versions	Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)
Switching elements	Single-pole snap-action switch
Areas of application	Heating industry, air-conditioning industry, general mechanical engineering
Switching capacity	10 A, 230 V
Features	Single thermostat, double thermostat
Approvals	DIN, (PED, EAC; type 603021, 603026)
Maximum control range/limit value	500 °C
Protection type	IP54; IP65 (type 603035)

general technical data

Versions

Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB)

Switching elements

Single-pole snap-action switch

Areas of application

Heating industry, air-conditioning industry, general mechanical engineering

Switching capacity

10 A, 230 V

Features

Single thermostat, double thermostat

Approvals
