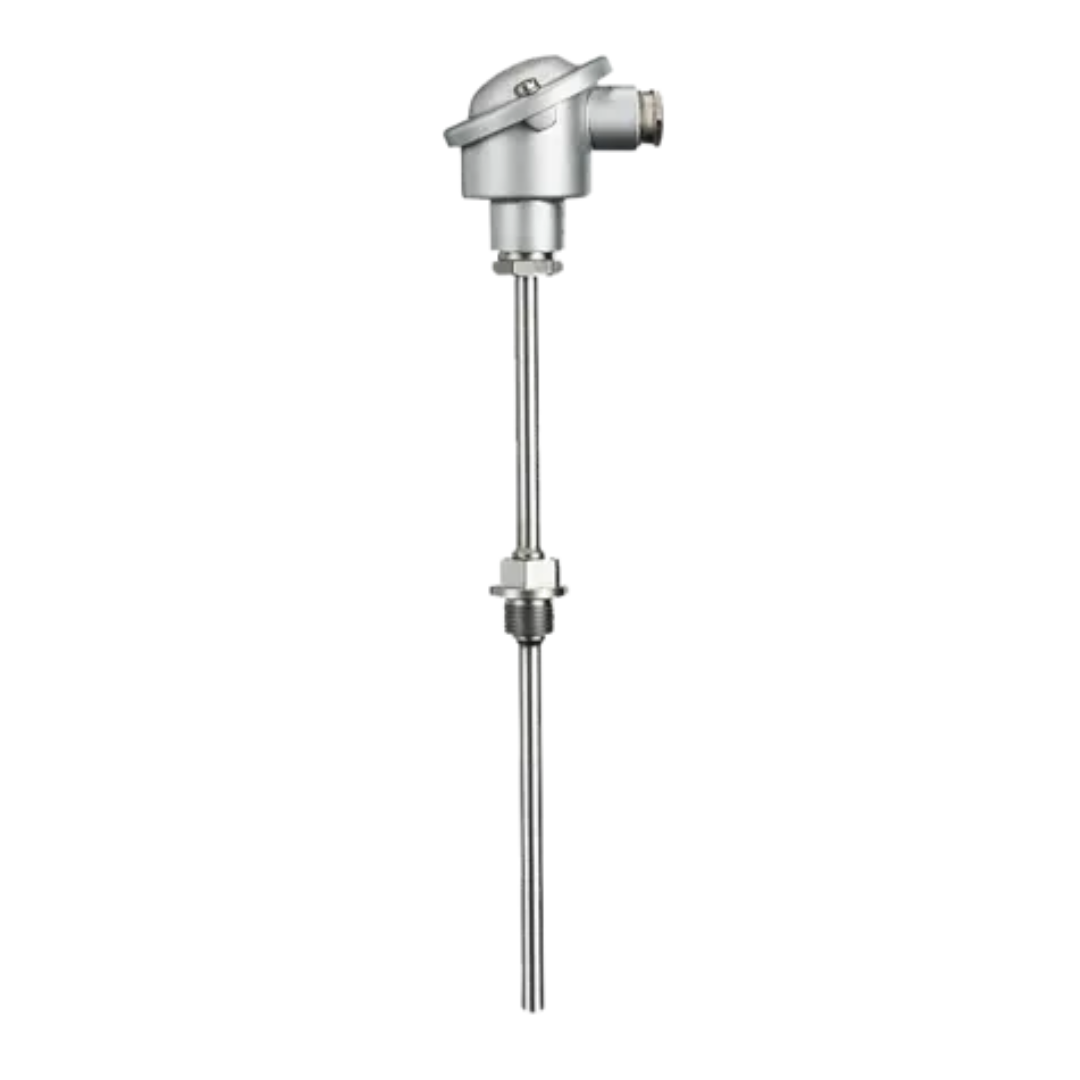

Screw-in thermocouples
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
Technical data
| general technical data | |
|---|---|
| Special features | Replaceable measuring insert, extension tube |
| Protection type | IP65 |
| Operating temperature | -200 to +800 °C |
| Protection fitting | Stainless steel 1.4571 |
| Approvals | Metrological registration |
| Thermocouples | J, L, K |
| Process connection | Screw connection G 1/2, screw connection G 3/4, screw connection G 1, screw connection M18 x 1.5 |
| Areas of application | Woodworking machines, drying plants, baking ovens, smelting and rolling works |
| Terminal heads | Form B DIN 43729, aluminium die-cast; form BUZ, aluminium die-cast; form BUZH, aluminium die-cast; form BBK, plastic |
| Measuring circuits | 1/2 |
| Option | Head transmitter |
