Main features
- Small press-on sensor with one-hole mounting
- Direct measurement of surface strain
- Without amplifier (passiv)
Available resources
Datasheet
– Datasheet SB46
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Gefran product range brochure
Technical Articles
– Magnet Dehnungmessesensoren_Konstruktion06_14
Certifications
– EU Conformity declaration – SB46
– UK Conformity declaration – SB46
Technical specifications
Overview

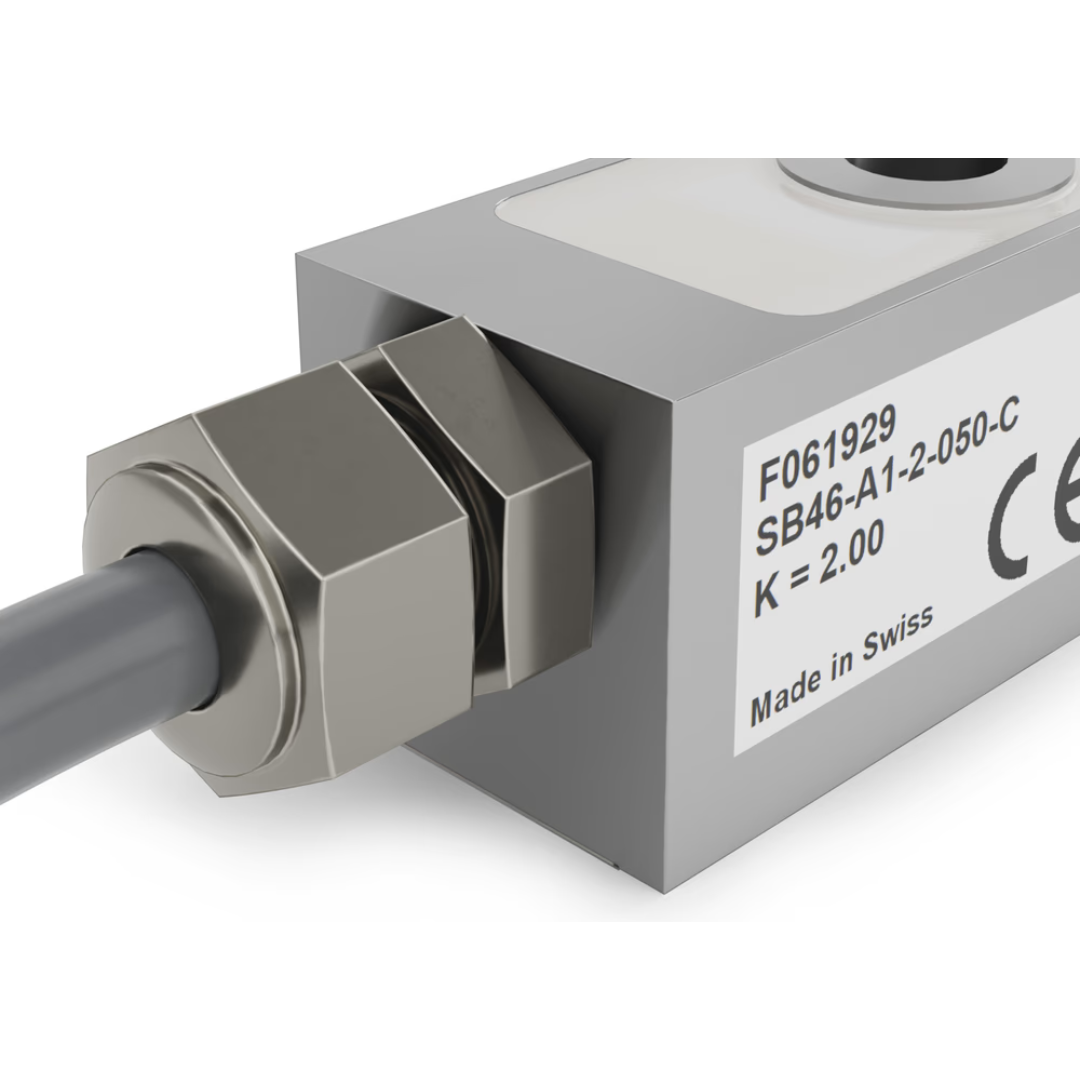

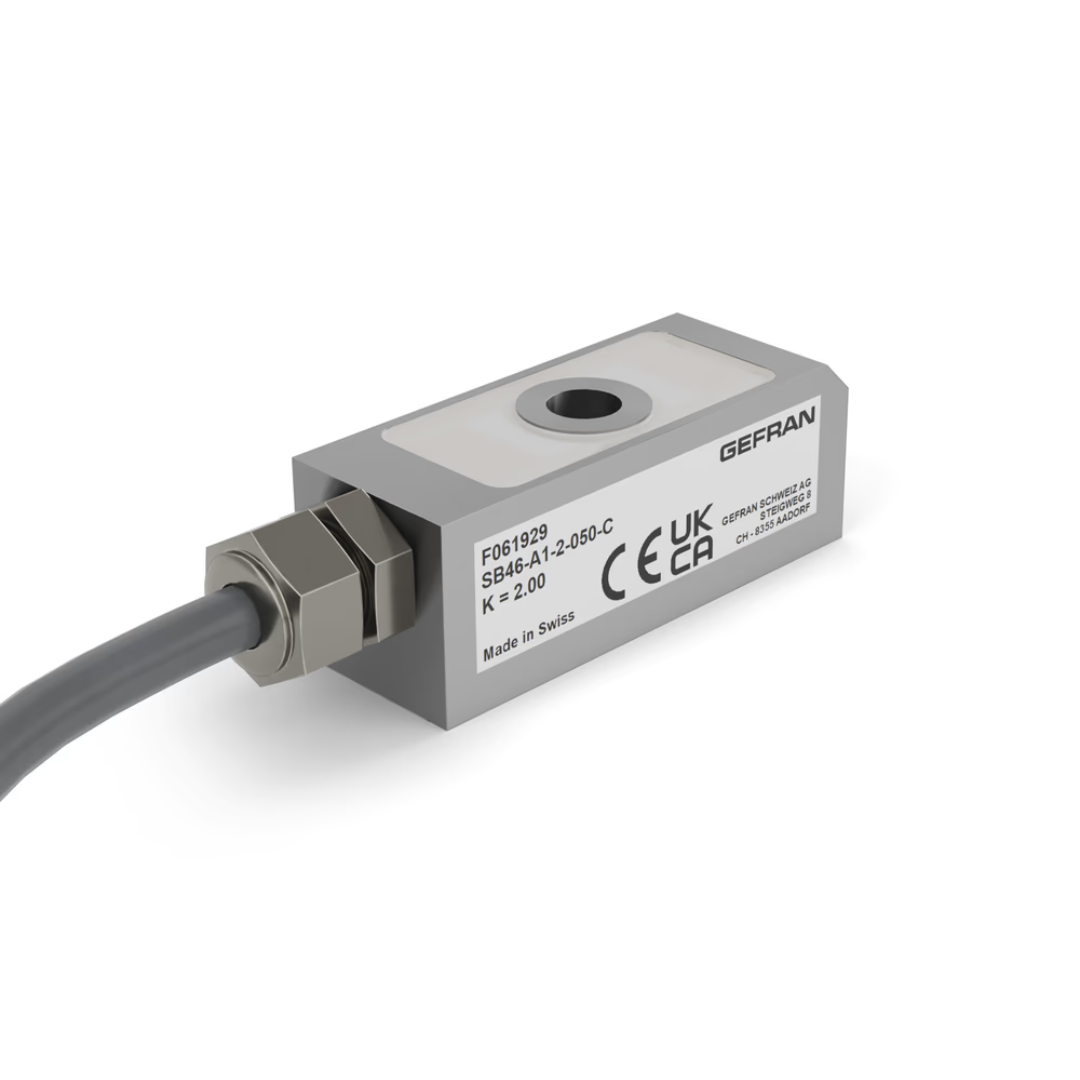

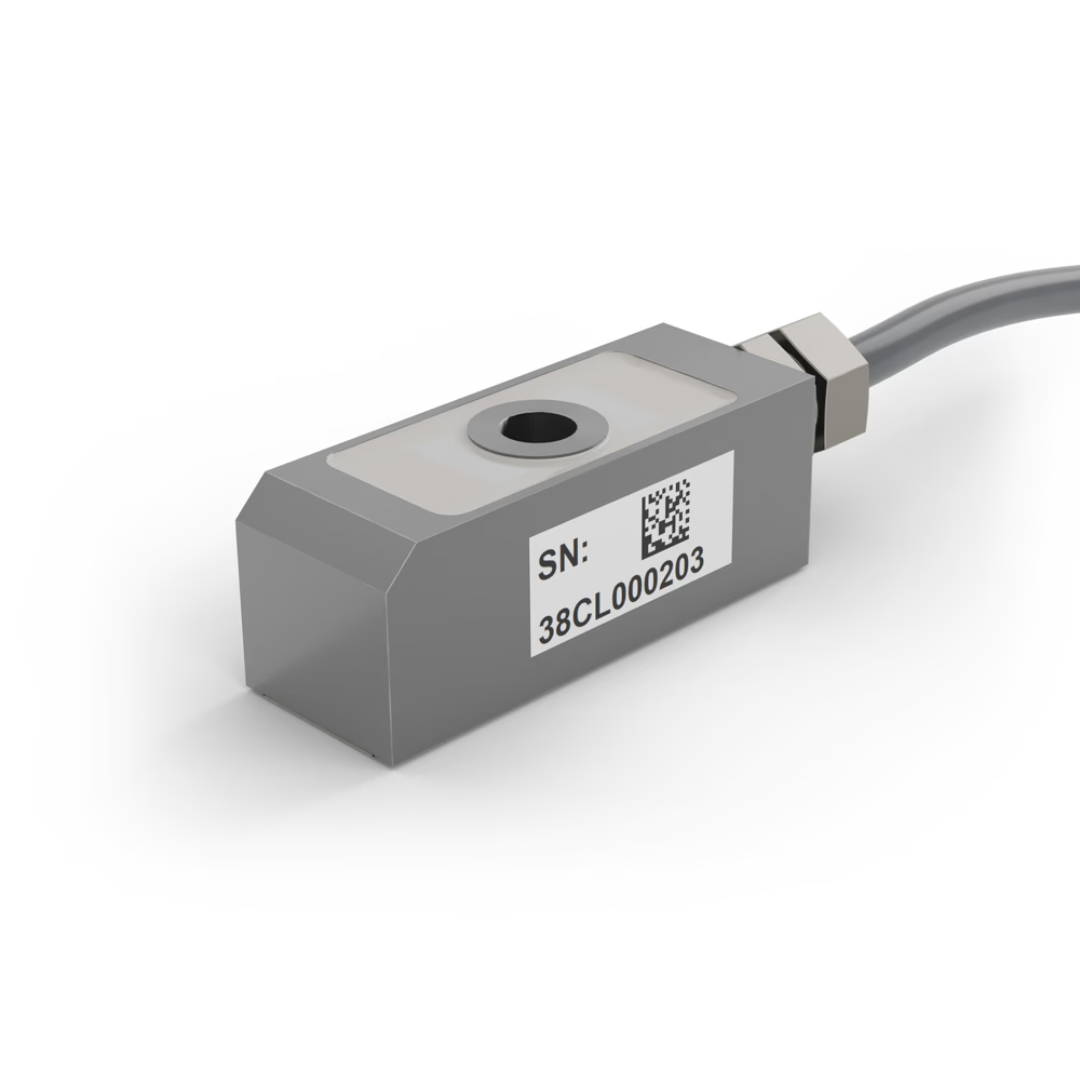

The strain gauge sensor SB46 measure the surface-strain directly at the mounting location in the same quality as bonded strain gages.
The press-on technology, developed by Sensormate AG, presses the strain gauges under the stainless protective film so strongly against the surface to be measured that frictional contact occurs.
The sensor can not be overloaded. The mounting is easy and very fast. The sensor do not need a recalibration when it replaced or remounted.
The sensor need a cyclical reset.
