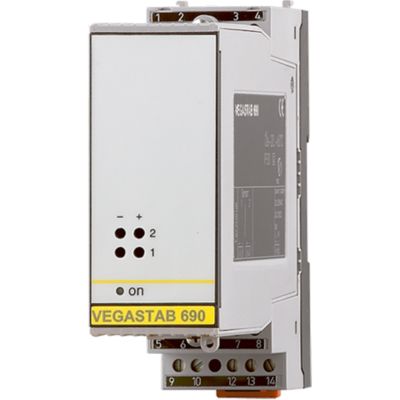

Profibus PA/DP segment coupler
Segment coupler from Profibus DP to Profibus PA
Application area
For use in conjunction with Profibus DP/PA bus systems. The segment coupler is suitable for coupling and power supply of Profibus PA networks. The Ex version ensures Ex intrinsic safety in conjunction with Ex circuits.
Your benefit
- Simple setup because no own GSD, DTM or EDD file or address must be used
- Reliable connection to Ex circuits by standardized FISCO procedure
- Economical, compact version with up to 10 Ex or 32 non-Ex field devices
Technical specifications
Protection rating
- IP20
Ambient temperature
- -20 … 60 °C
Signal input (specify)
- Fieldbus
Signal output (specify)
- Fieldbus
Approvals
Scope
- ATEX / Europe
Explosion protection
- Intrinsic safety “i”
- Dust ignition protection “t”
Display & adjustment
Indication
- LED
