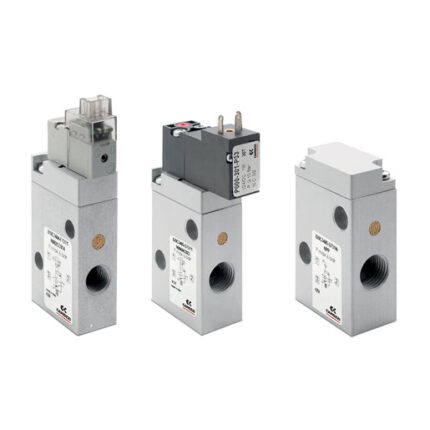

Pneumatic operated cartridge valves Series 8
2/2-way – Normally Closed (NC)
3/2-way – Normally Closed (NC)
3/2-way – Normally Closed (NC)
Series 8 pneumatic operated valves are particularly suitable for applications requiring high flow combined wtih compact design.
The valve is pneumatic operated by electro-pilots which are dimensioned according to the size.
The cartridge design, which is ideal for manifold assembly, allows to reduce both dimensions and the number of pneumatic connections.
The valve is pneumatic operated by electro-pilots which are dimensioned according to the size.
The cartridge design, which is ideal for manifold assembly, allows to reduce both dimensions and the number of pneumatic connections.
The standard function of the valve is 2/2-way NC.
It can however fulfill the 3/2-way NC function if inserted in a proper seat.
General Data
| TECHNICAL FEATURES | |
| Function | 2/2 NC – 3/2 NC |
| Operation | Pneumatic operated poppet type |
| Pneumatic connections | Cartridge seat in manifold |
| Orifice diameter | 5 … 9 mm |
| Nominal flow | 420 … 1480 Nl/min (air at 6 bar ∆P 1 bar) |
| Flow coefficient kv (l/min) | 6.5 … 23 |
| Operating pressure | 3 ÷ 6 bar (0 ÷ 6 bar with external pilot supply) |
| Piloting pressure | 3 ÷ 6 bar |
| Operating temperature | 0 ÷ 50°C |
| Fluid | Filtered air class [5:4:4] according to ISO 8573-1:2010 (max oil viscosity 32 cSt), inert gas, oxigen |
| Installation | In any position |
| MATERIALS IN CONTACT WITH THE MEDIUM | |
| Body | PPS – brass |
| Internal parts | Aluminium |
| Seals | FKM |
Coding Example
| 8 | 10 | C5 | 1 | 00 | – | F1 | 3 | 2 | – | OX2 |
| 8 | SERIES |
| 10 | SIZE 10 = Size 1 – Ø 10.0 mm 20 = Size 2 – Ø 14.5 mm 30 = Size 3 – Ø 22.0 mm |
| C5 | BODY DESIGN C5 = Cartridge |
| 1 | NUMBER OF WAYS – FUNCTIONS 1 = 2/2 or 3/2-way – NC NOTE: the function 2/2 o 3/2-way depends on the seat used |
| 00 | PNEUMATIC CONNECTIONS 00 = Cartridge |
| F1 | ORIFICE DIAMETER F1 = Ø 5.0 mm – size 1 only G7 = Ø 6.6 mm – size 2 only K1 = Ø 9.0 mm – size 3 only |
| 3 | SEAL MATERIAL 3 = FKM |
| 2 | BODY MATERIAL 2 = Brass B = PPS – size 2 and size 3 only |
| OX2 | OX2 = for use with oxygen – cleanliness level according to ASTM G93-03 Standard Level B NOTE: The OX2 suffix must be added also in case of use with air/gas. |
