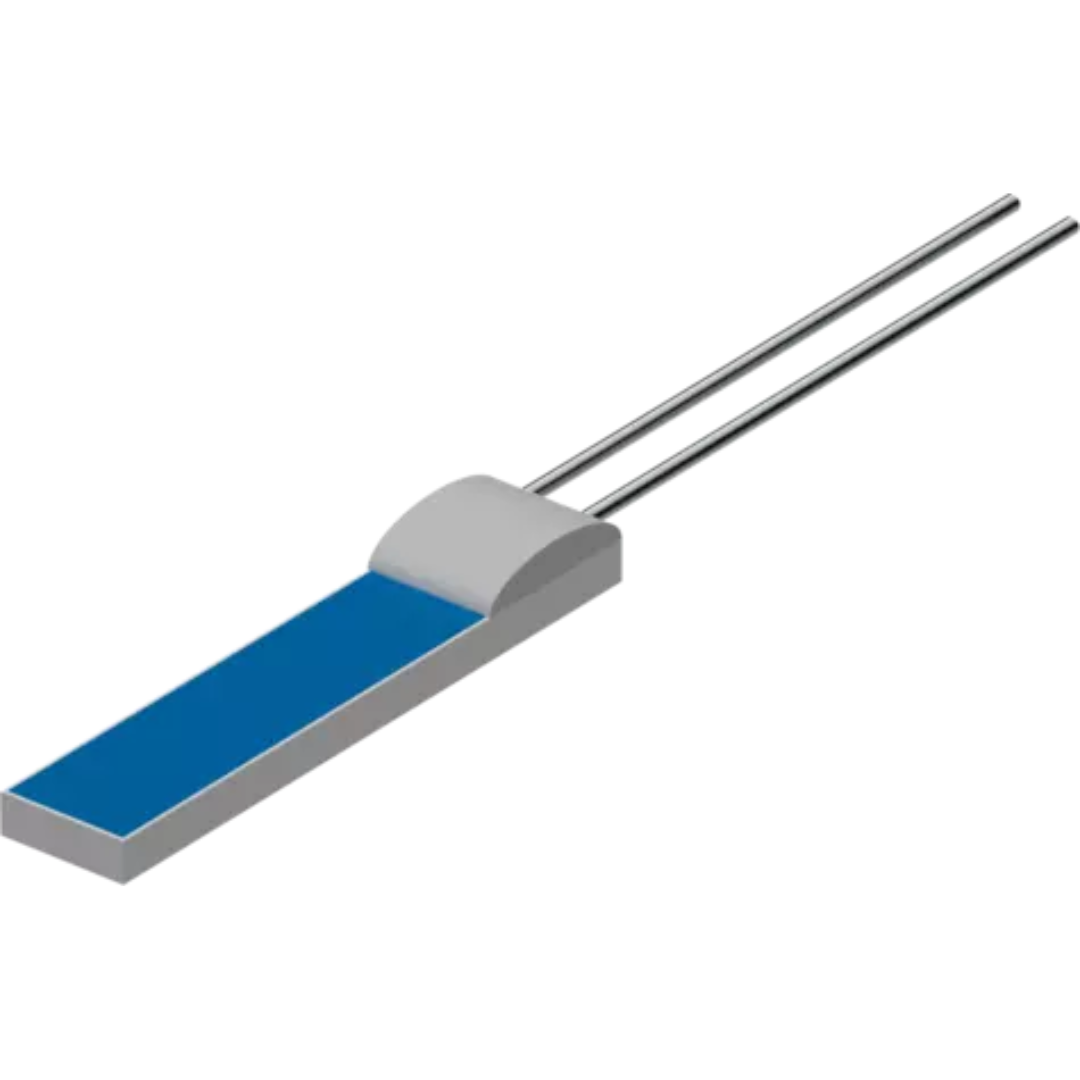

Platinum-chip temperature sensors PCW-M-PtNi
Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100, Pt500, Pt1000.
Technical data
| general technical data | |
|---|---|
| Design type | PCW-M-PtNi |
| Sizes | 1003, 1505, 2003 and 2005 |
| Standard | DIN EN IEC 60751 |
| Temperature range | -70 to +550 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection wires | Platinum wrapped wire |
| Processing | Crimp, welded, and hard-soldered joints |
| Advantages | Standardized nominal values (Pt100, Pt500, Pt1000), standardized tolerances, high degree of measuring accuracy, excellent long-term stability, very good reproducibility of electrical properties |
| Areas of application | Heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, motor and commercial vehicles |
