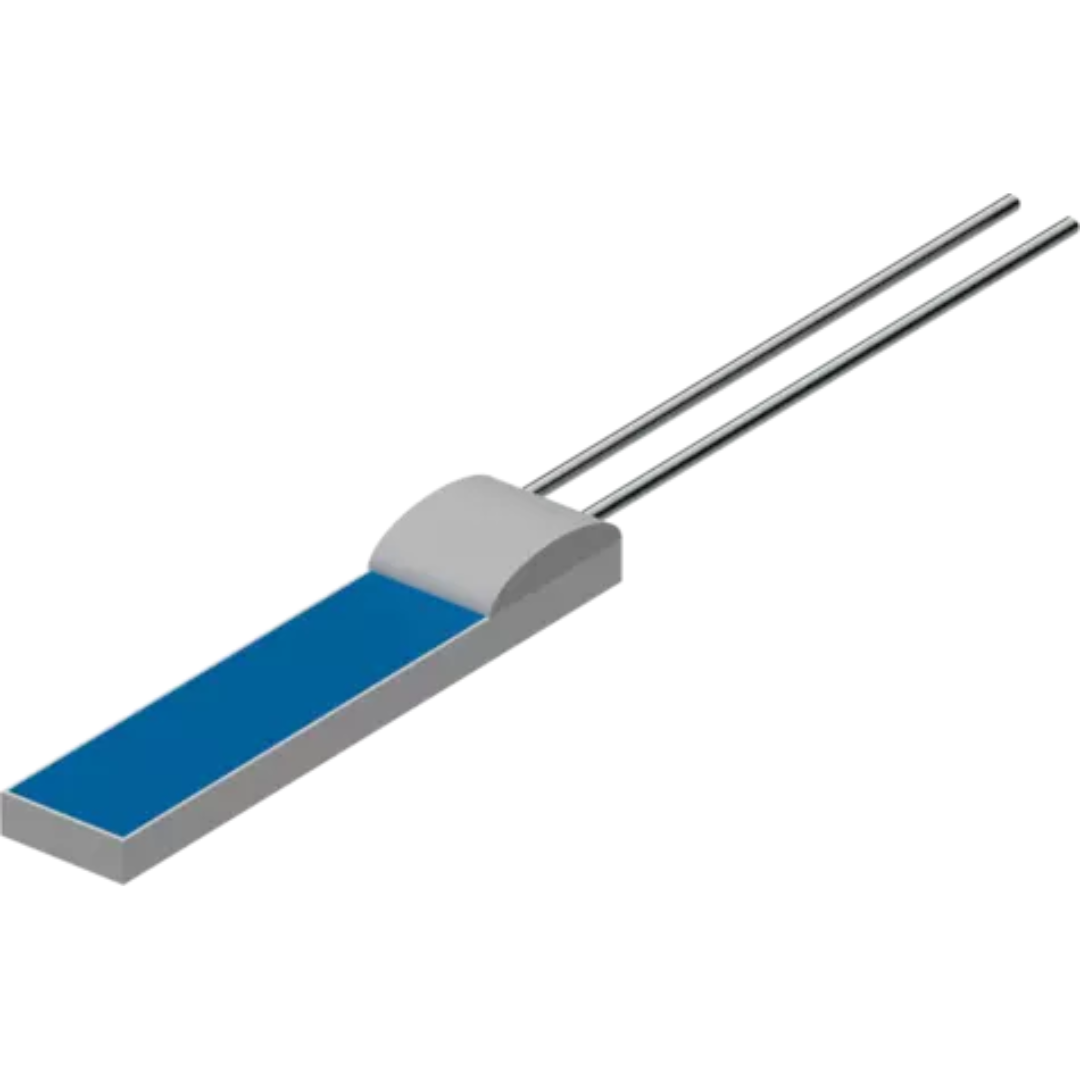

Platinum-chip temperature sensors PCW-H-Pd
Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100 and Pt1000.
Technical data
| general technical data | |
|---|---|
| Design type | PCW-H-Pd |
| Standard | DIN EN IEC 60751 |
| Temperature range | -70 to +600 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection wires | Palladium wire |
| Processing | Melting and laser melting method, hard-soldered joints |
| Advantages | For high operating temperatures, standardized nominal values (Pt100, Pt1000), standardized tolerances, high degree of measuring accuracy, excellent long-term stability, very good reproducibility of electrical characteristics |
| Areas of application | Heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, motor and commercial vehicles |
