Main features
- Modular PLC controller based on the IEC61131-3 standard
- Integrated webserver for local and remote visualization
- Double Ethercat master supporting advanced network architectures
- Support for docker architecture – examples of dockerized applications include advanced PLC features, Industrial IoT connectivity, open sources apps
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Flyer
– G-MATION P6 – Flyer
Datasheet
– P6 – Datasheet
User Manual
– P6 – User manual
Certification
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

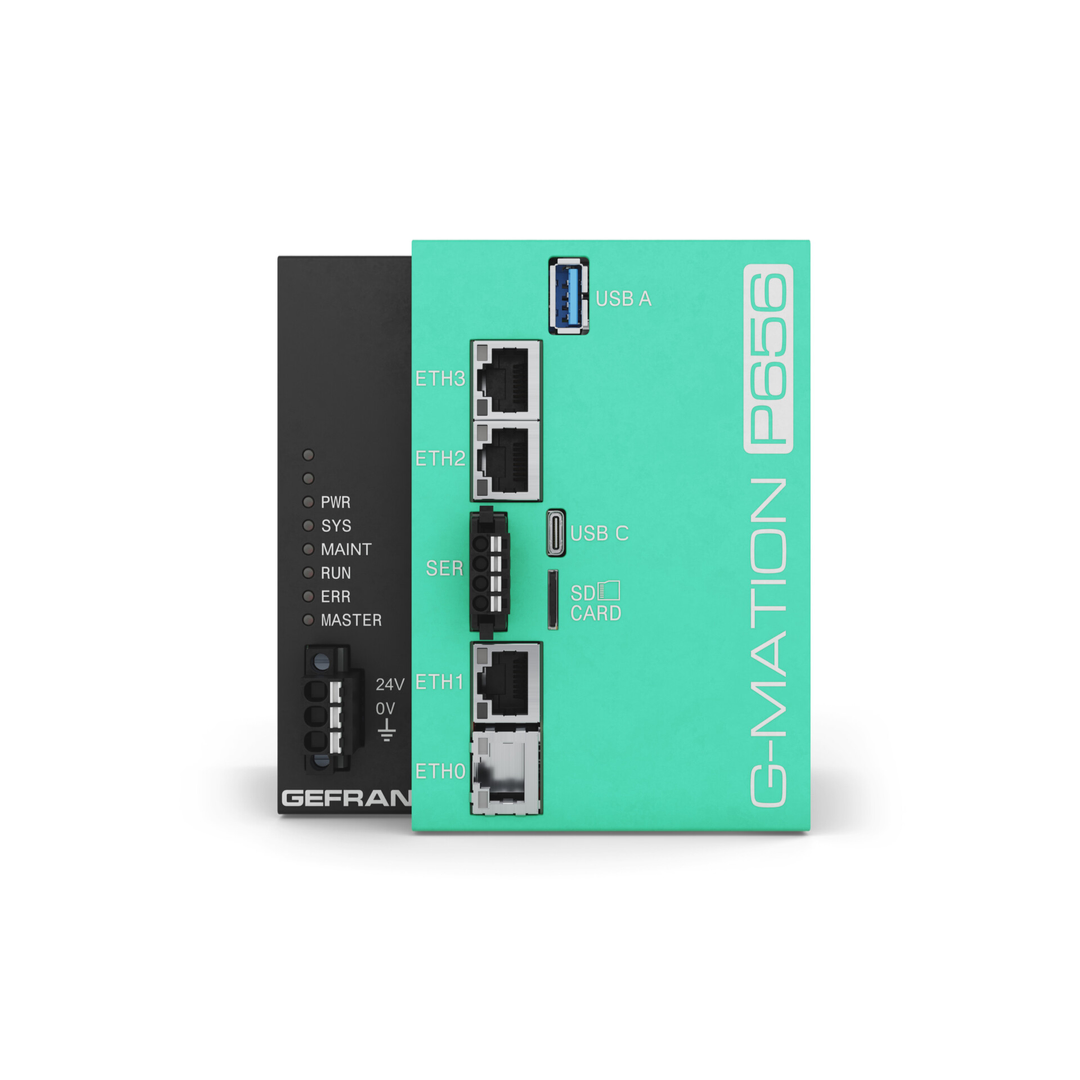

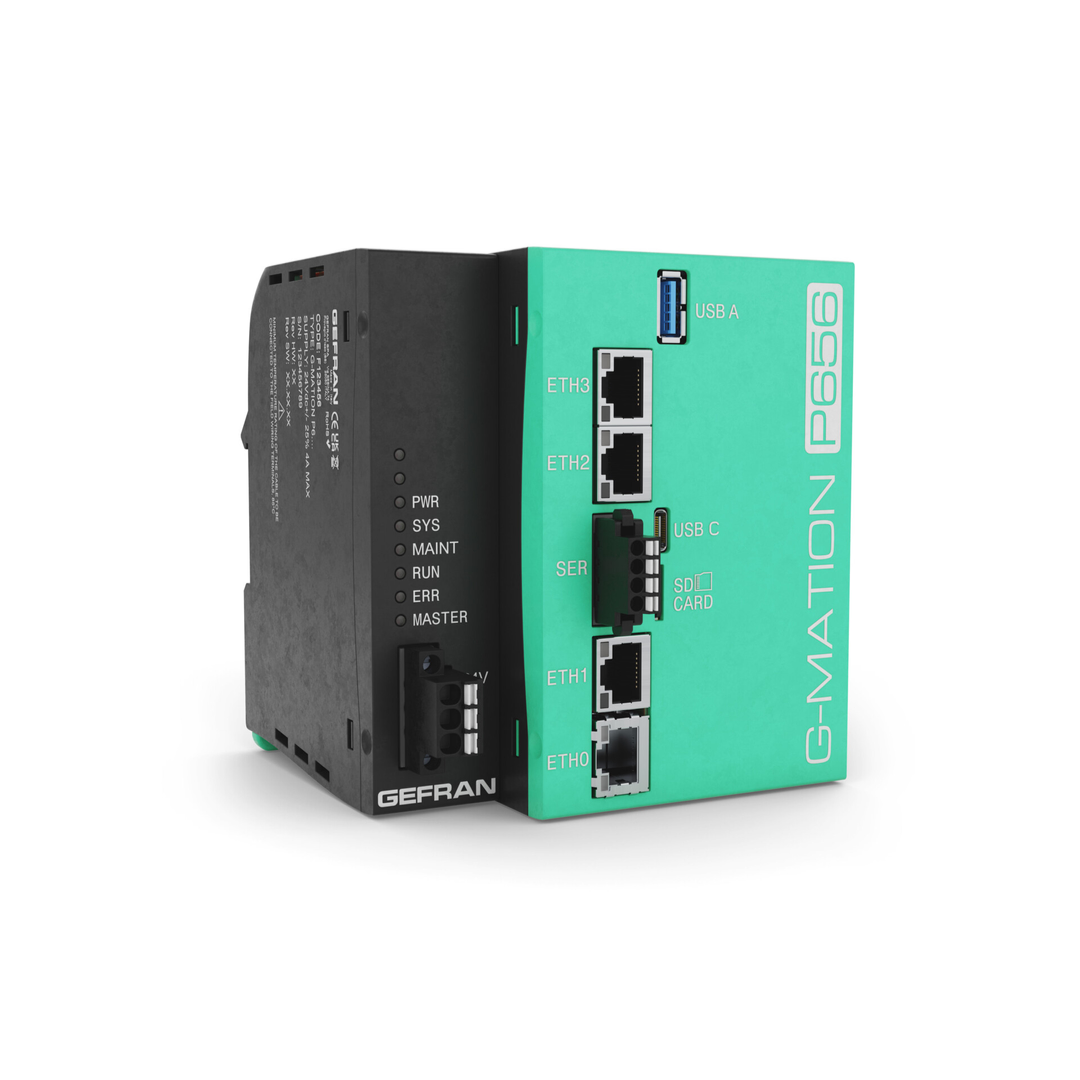

The G-MATION P6 is the modular CPU of the G-Mation family, conforming to the EN61131-3 standard with a fully scalable HTML operator interface for use with multiple devices (web panel, smartphone, remote service..).
Based on x86 architecture, it is a high performance PLC for real-time applications and can integrate G-Mation G3 I/O modules.
It has multiple EtherCAT masters with distributed clock and redundancy capabilities.
The G-Mation P6 implements a docker architecture for the installation and management of dockerized applications. Advanced configuration and diagnostics features of the PLC are implemented as dockerized applications. Other supported apps include IIoT functionalities and open source programs.

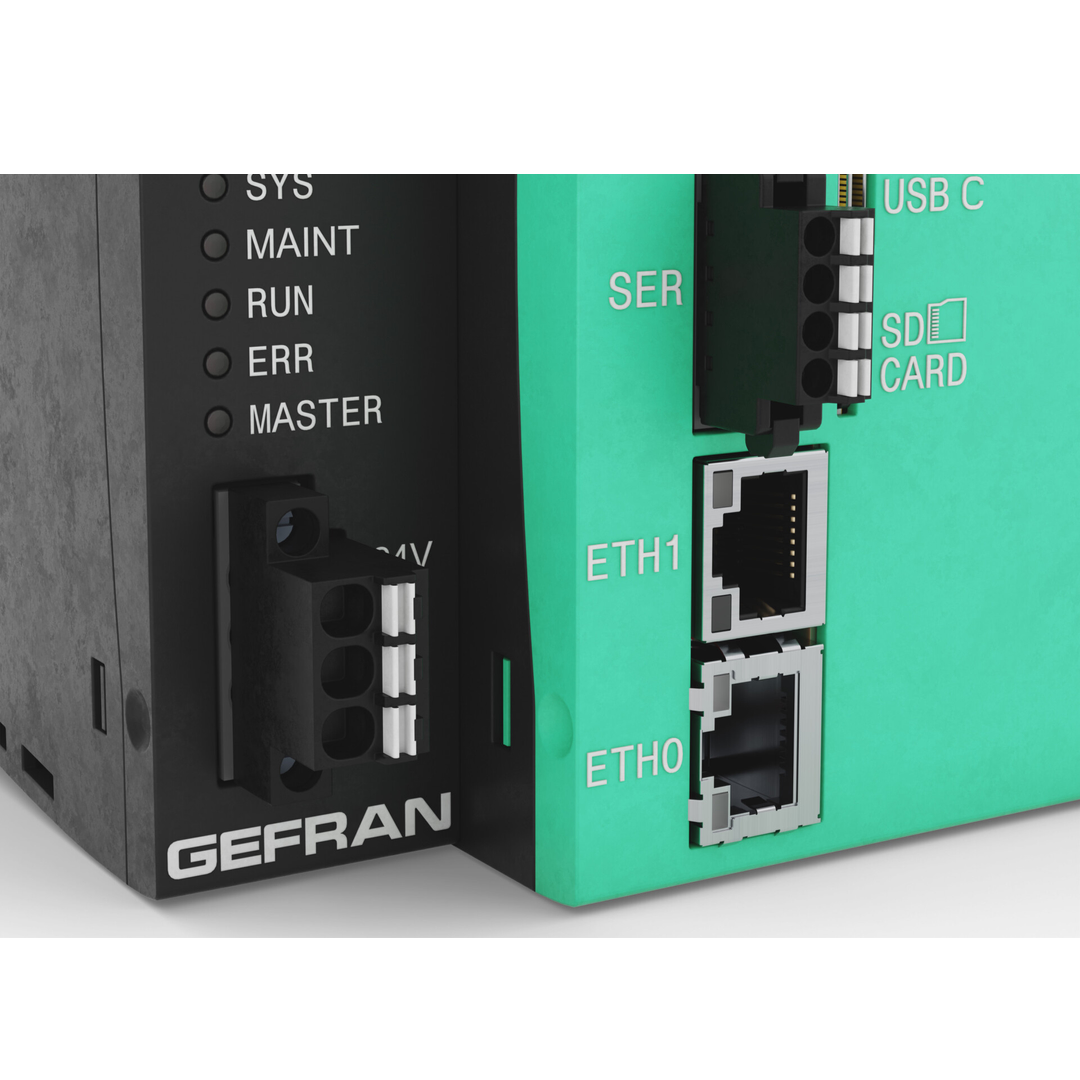

Offers up to 4 freely configurable Gigabit RJ45 Ethernet ports for Ethercat master or TCP-IP connection. One of the ports can be powered with PoE class 6 up to 60W for powering external devices.
