Main features
- 8 input channels configurable as voltage, current or potentiometer
- On board potentiometer power supply
- 16 bit resolution
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Flyer
– G-MATION G3 – Flyer
Datasheet
– G3-AD8 – Datasheet
Fieldbus Configuration Files
– G3-AD8 – ESI Configuration file
User Manual
– G3-AD8- User manual
Certification
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

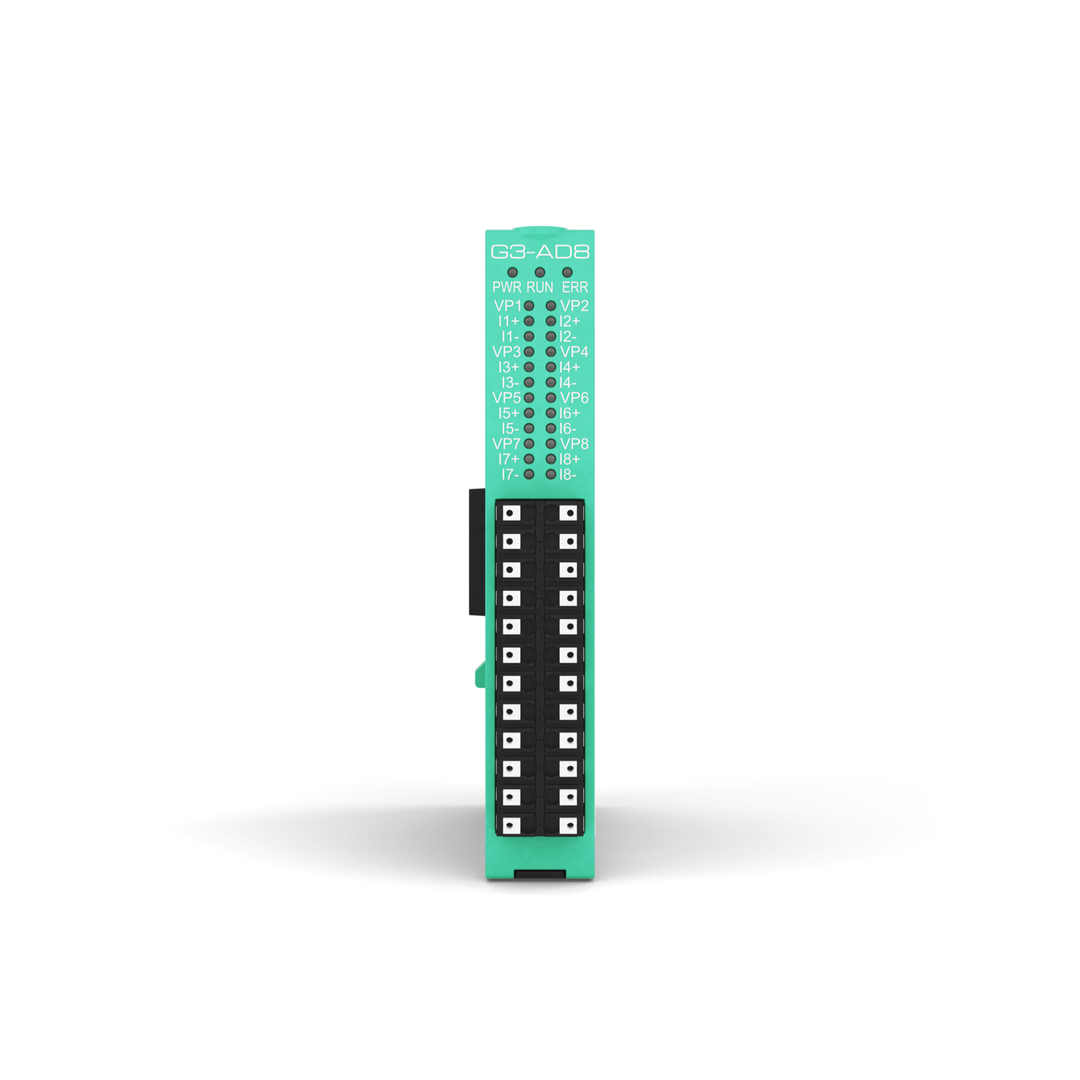

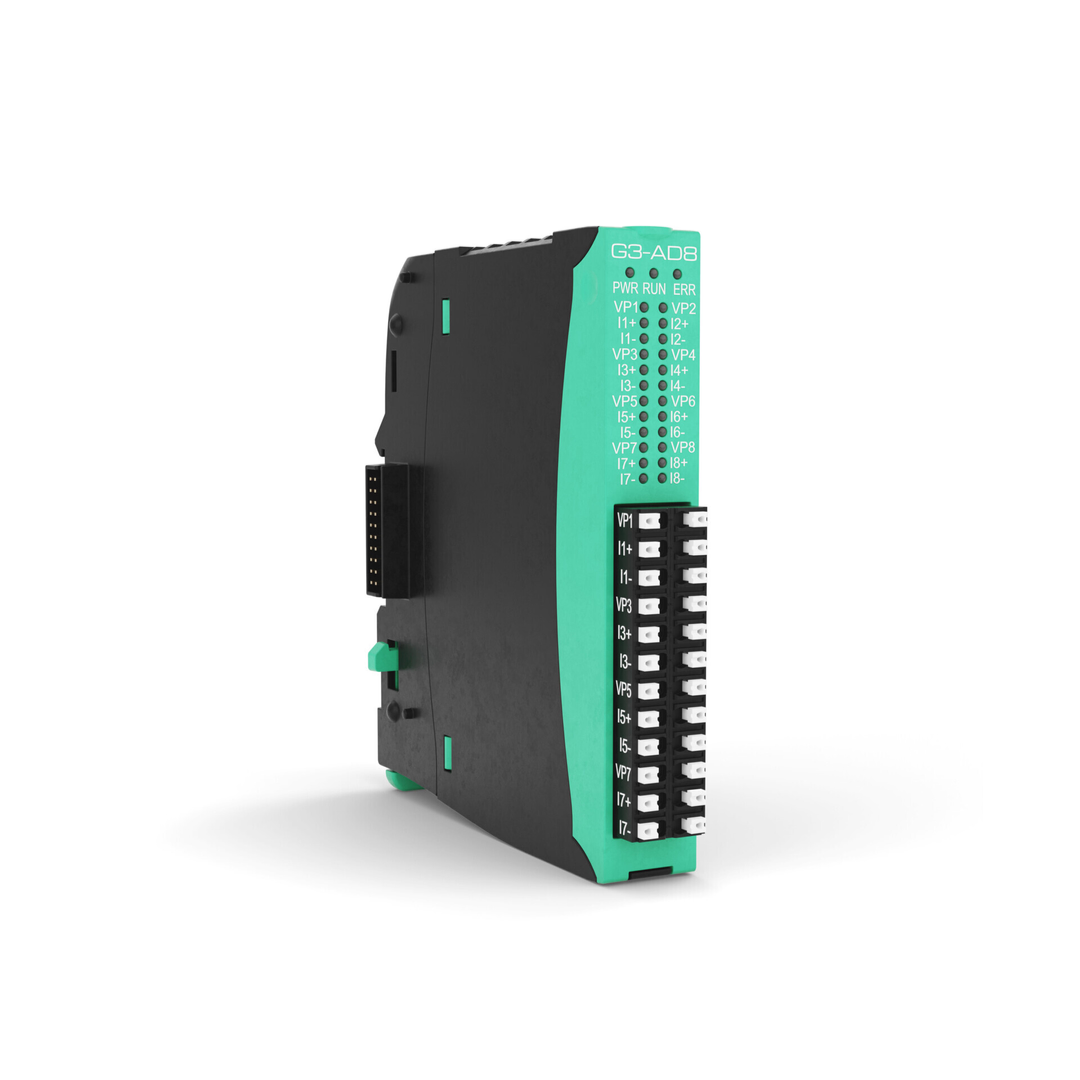

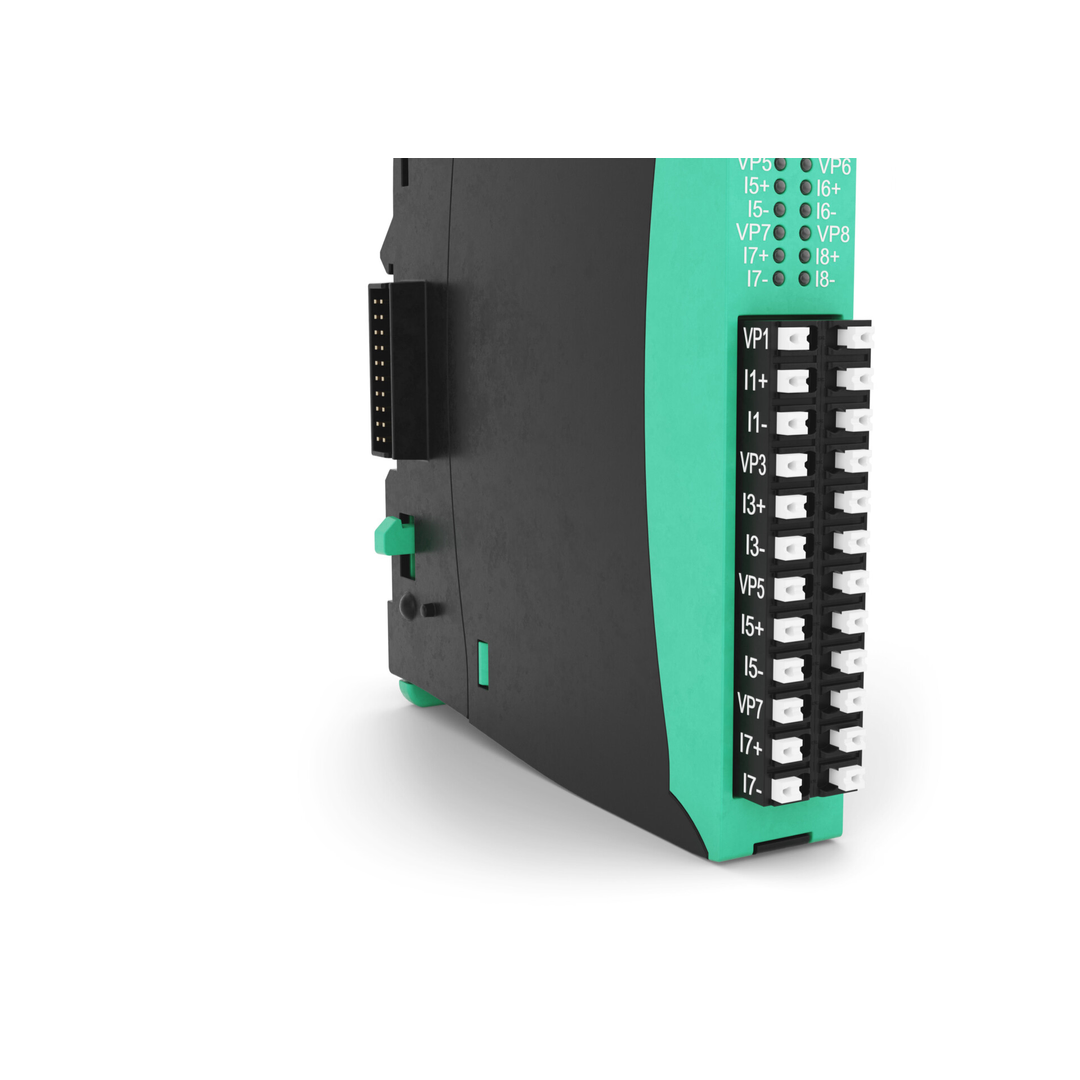

The G3-AD8 module has 8 isolated analog inputs that can be used to read signals from various types of linear sensors, from retransmitting units, servocontrols, position systems.
Inputs can be software configurable as voltage (0…10V, ±10V), current (0…20mA, 4…20mA) or Po-tentiometer (>1kΩ).
G3-AD8 can be used with all the G-Mation gateways and CPU’s from which it receives power supply
G3-AD8 can acquire 8 analog inputs in less than 100μs for 8 channels, allowing fast and accurate closed loop and process monitoring applications in combination with Ethercat communication.
Each input is protected against wrong connection.
