Main features
- 2 channel encoder input configurable as counter or frequency
- Power supply 24Vdc, 500mA
- 2 fast digital outputs as counting events
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Flyer
– G-MATION G3 – Flyer
Datasheet
– G3-SSI2 – Datasheet
Fieldbus Configuration Files
– G3-SSI2 – ESI Configuration file
User Manual
– G3-SSI2 – User manual
Certification
– UK Conformity declaration – UK
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

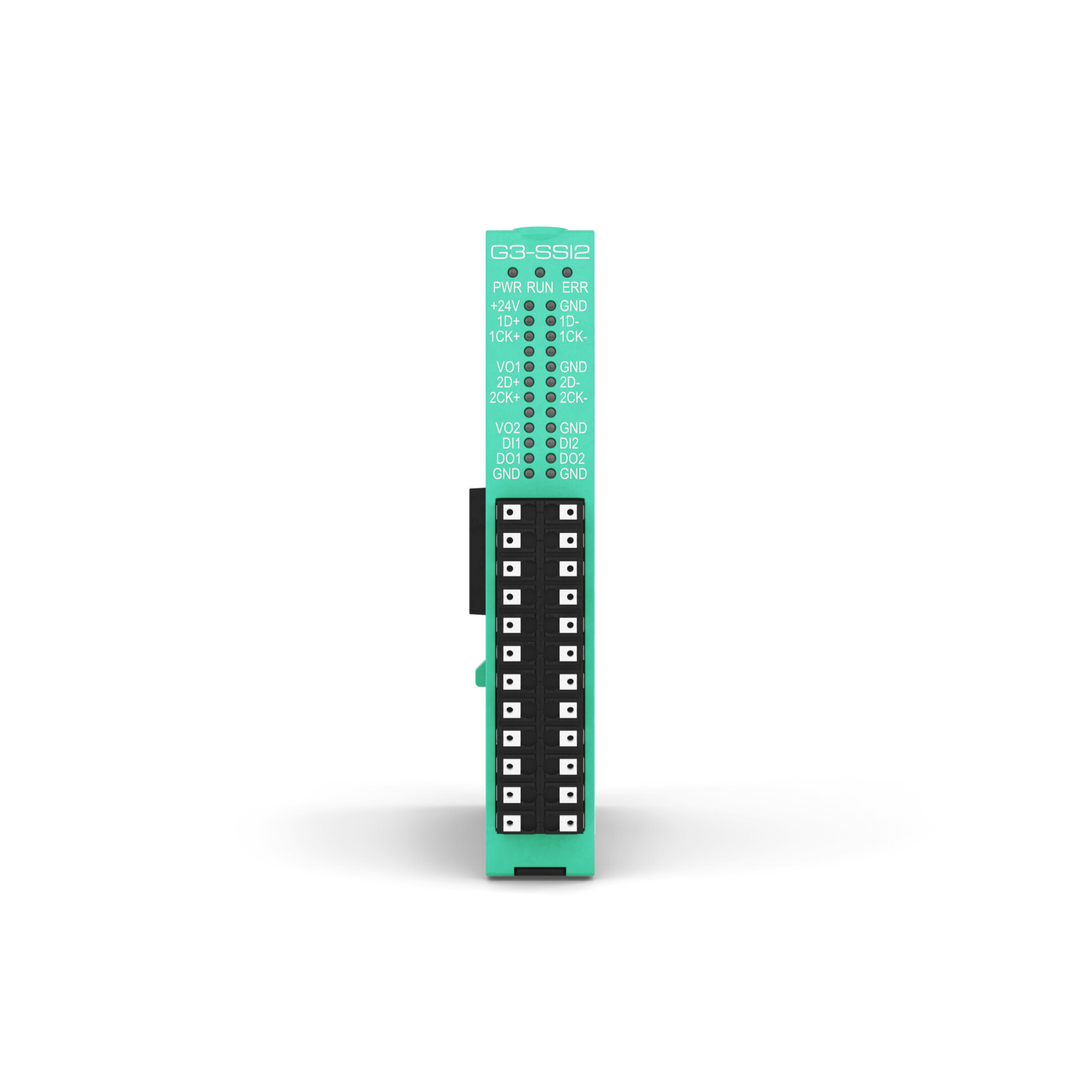

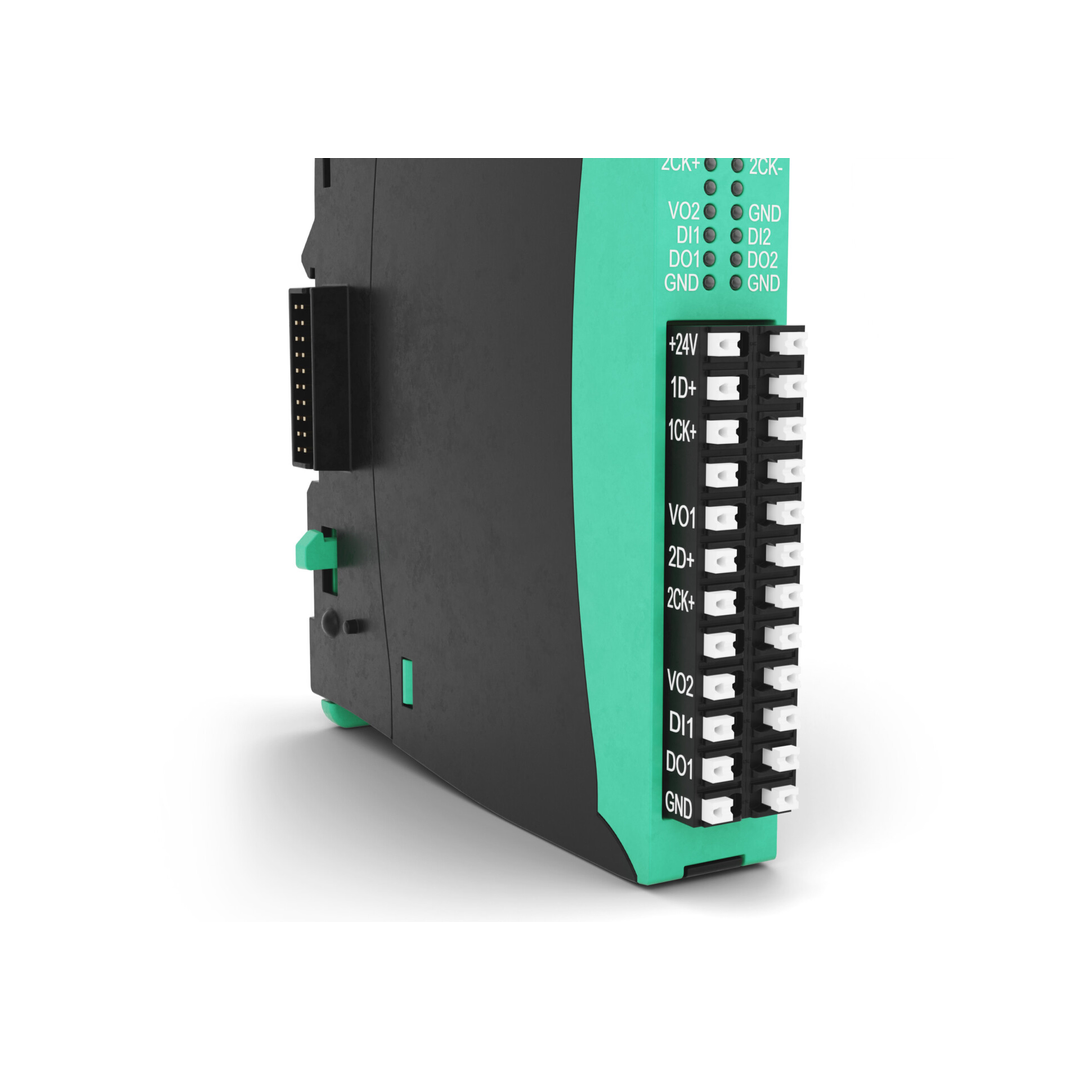

The G3-SSI2 module handles 2 fully configurable SSI inputs for reading signals with 24, 25 or 32 bit data format, binary or gray coding, output clock frequency from 10kHz to 2MHz.
As fast counting events, 2 digital 24Vdc outputs are available directly on the board.
The module provides diagnostics in case of external power failure and interrupted sensor connection.
The minimum sampling time for 2 channels is 30µs depending on the configured clock type and the number of transmitted bits.
G3-SSI2 can be used with all the G-Mation gateways and CPU’s from which it receives power supply.
