Main features
- 3 RJ45 ports as EtherCAT automation network exstension
- Power suppy from G-MATION system bus
- Enables ethercat star and tree topology
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Flyer
– G-MATION G3 – Flyer
Datasheet
– G3-JNC – Datasheet
User Manual
– G3-JNC – User manual
Fieldbus Configuration Files
– G3-JNC – ESI Configuration file
Certification
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

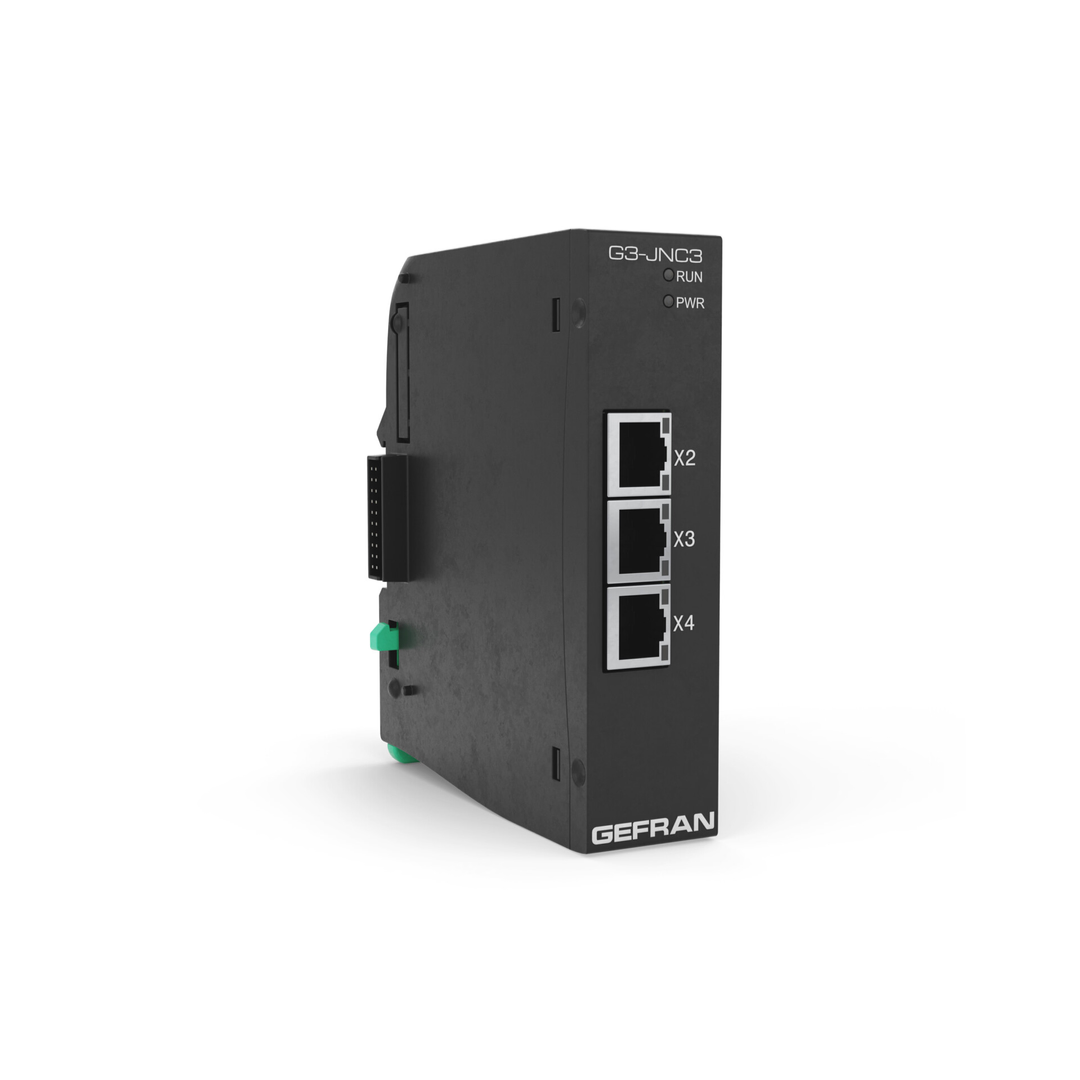

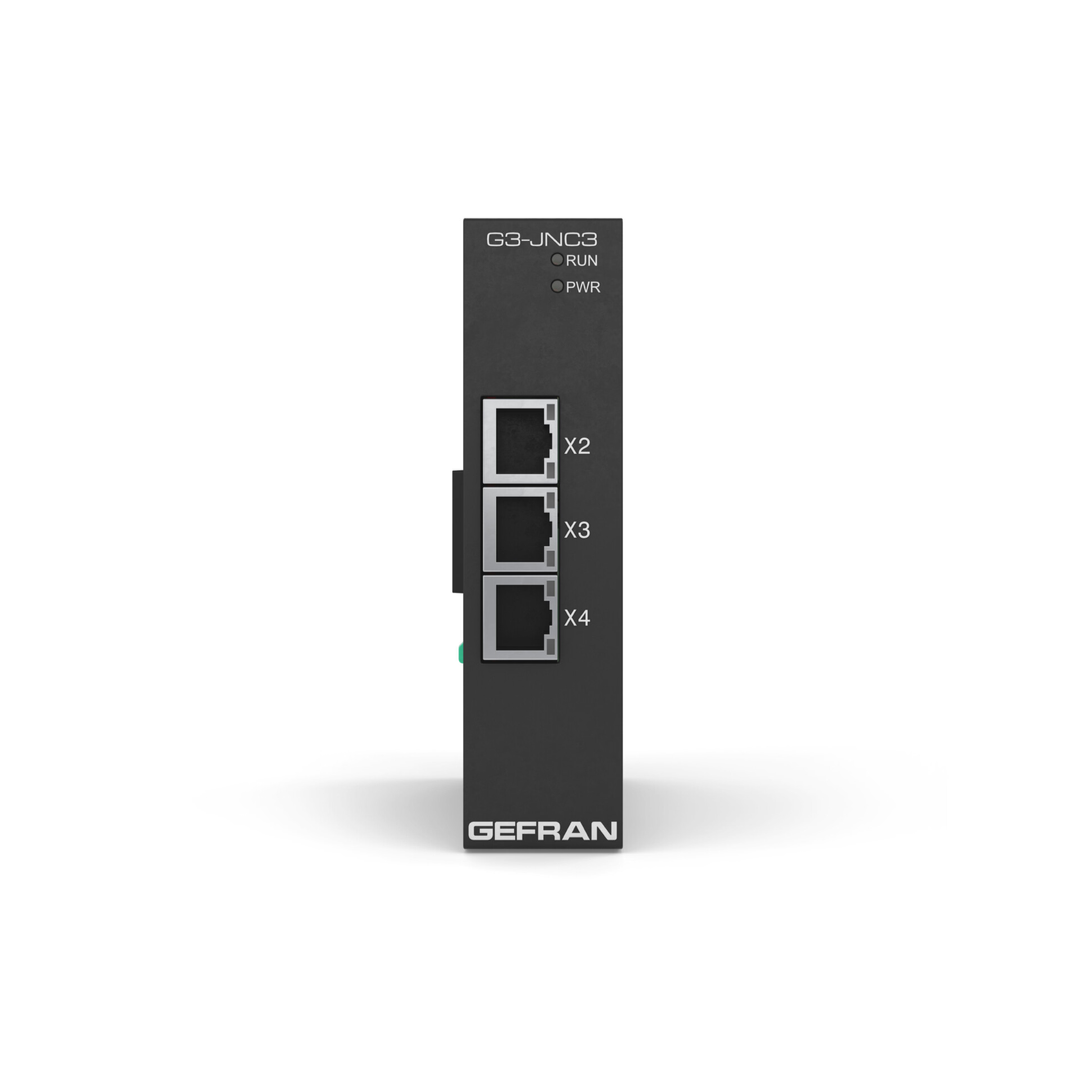

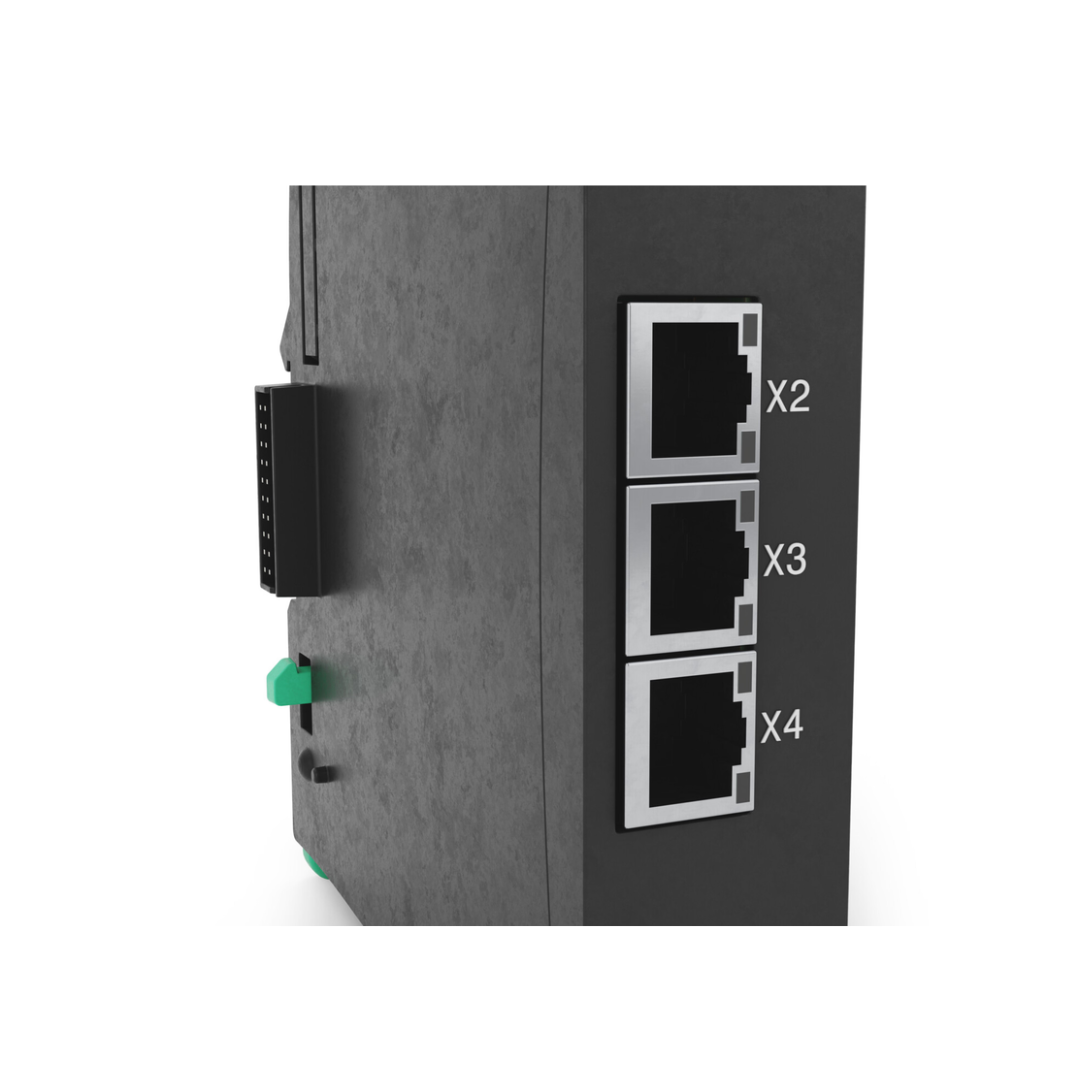

The G3-JNC3 module consists of 3 RJ45 ports and a direct interface to the G-Mation G3 system bus and allows the extension of the EtherCAT automation network. The G-MATION system bus integrated in the G3-JNC3 module is the EtherCAT input port, while the 3 ports on the front of the module allow new EtherCAT devices to be connected to those on the bus.
The G3-JNC3 module requires no external power supply.
