Main features
- Voltage, current and potentiometer configurable output types
- On board potentiometer power supply
- 16 bit resolution
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Flyer
– G-MATION G3 – Flyer
Datasheet
– G3-DA8 – Datasheet
Fieldbus Configuration Files
– G3-DA8 – ESI Configuration file
User Manual
– G3-DA8- User manual
Certification
– UK Conformity declaration – UK
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

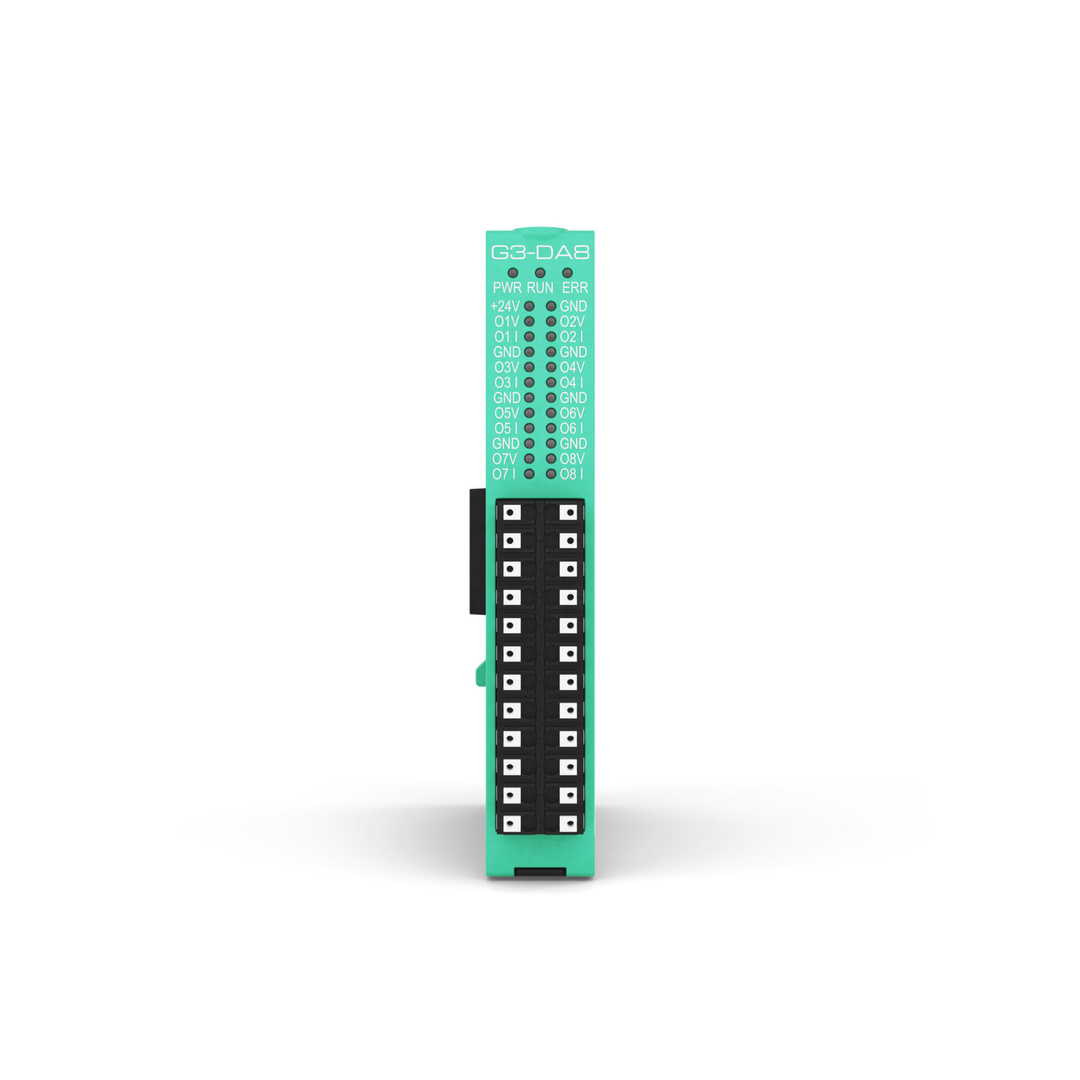

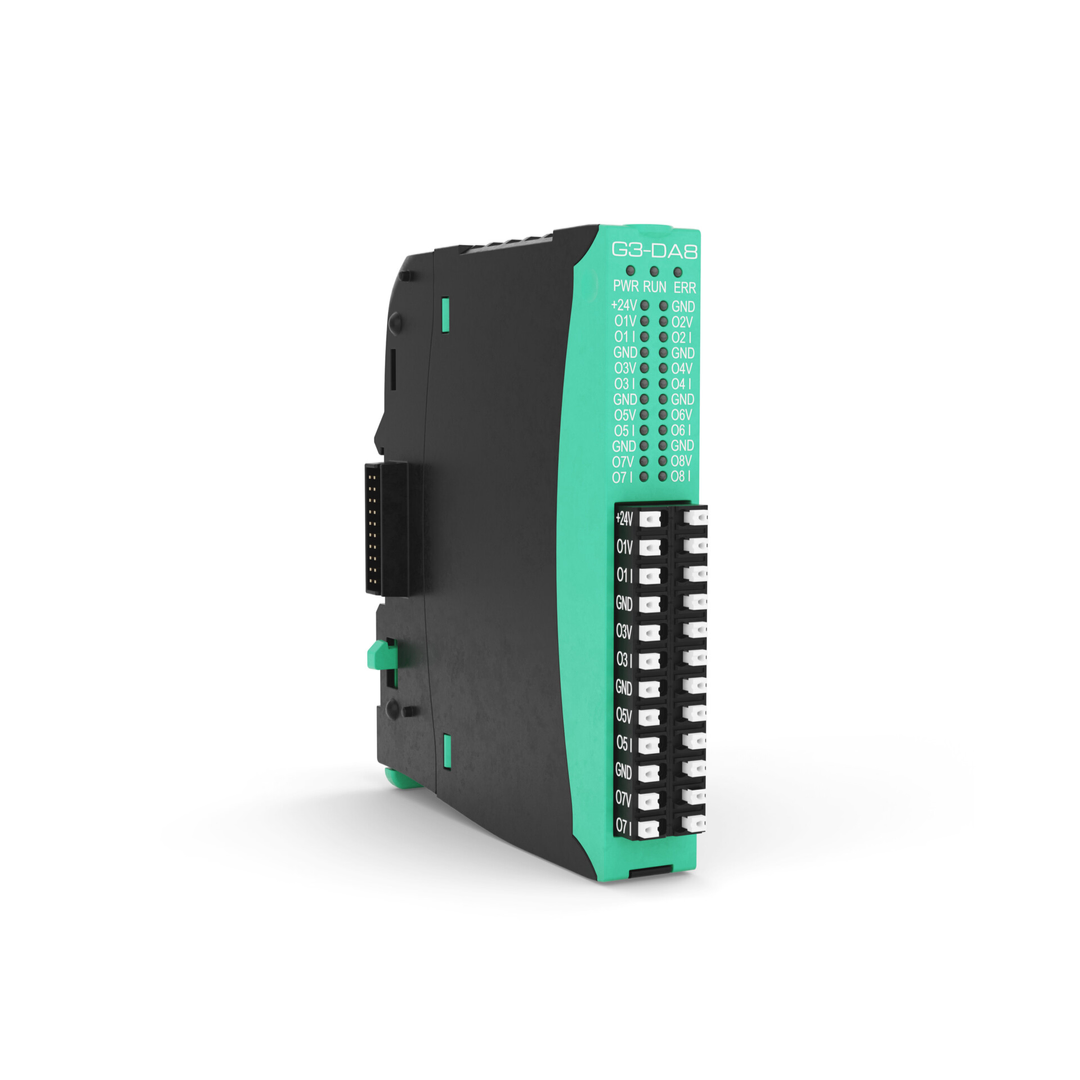

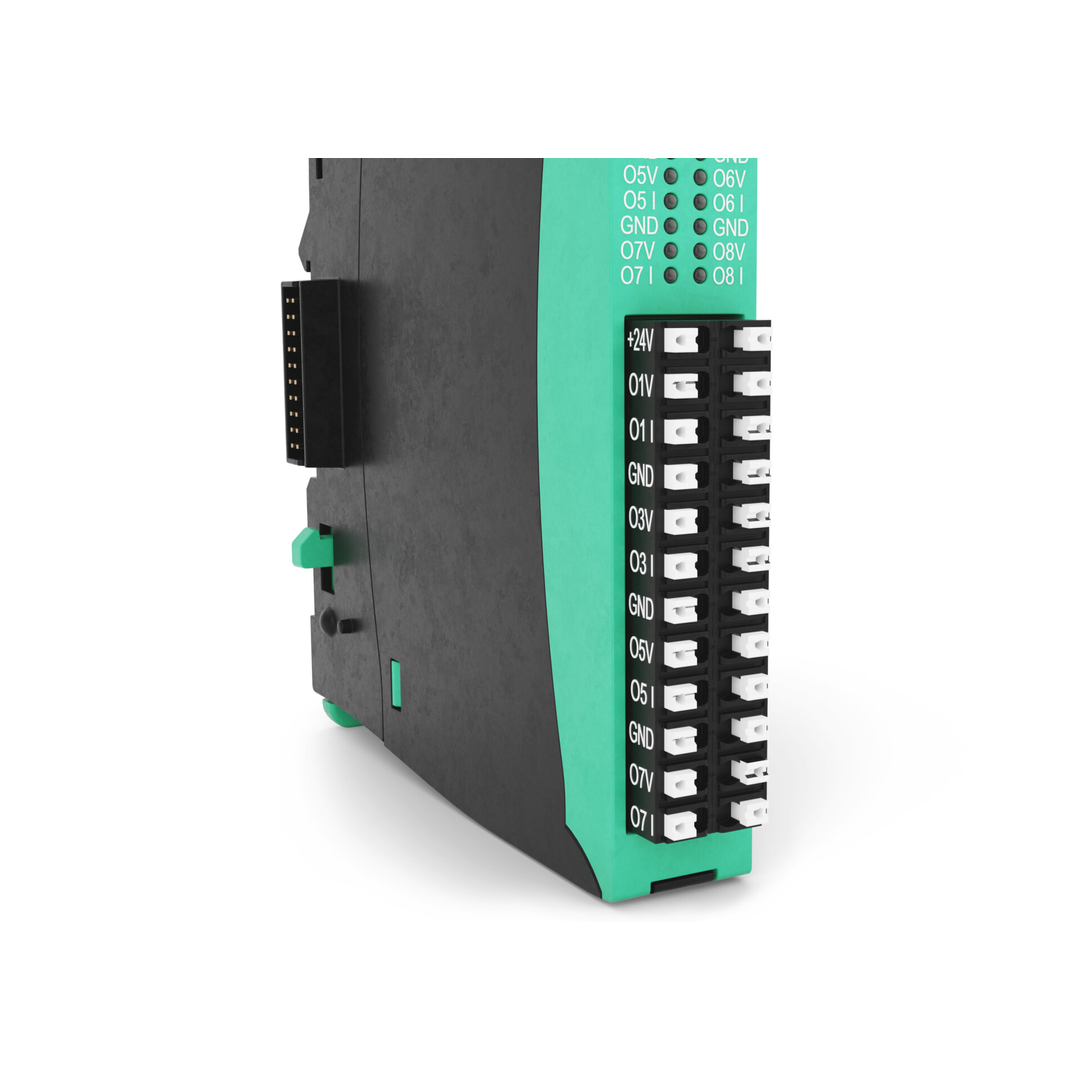

The G3-DA8 module has 8 isolated analog outputs that can be used to send reference signals to drives, servocontrols, power solid state relays with linear input, or retransmit variables to recording devices / other units, etc.
Outputs can be software configurable as voltage output (±10V) or current output (0…20mA, 4…20mA).
G3-DA8 can be used with all the G-Mation gateways and CPU’s from which it receives power supply
It needs an external +24V±25%, 0.5A max for field signals.
G3-DA8 can refresh 8 analog outputs in less than 80μs, allowing fast and accurate closed loop and process control applications in combination with fast Ethernet real time communication protocols.
The outputs are protected against short circuit and overload.
