Main features
- 20 digital input 24 Vdc ± 25%
- Current sink optically isolated Inputs
- 4 inputs configurable as frequency meter up to 1,5 kHz
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Flyer
– G-MATION G3 – Flyer
Datasheet
– G3-E20 – Datasheet
Fieldbus Configuration Files
– G3-E20 – ESI Configuration file – V03
– G3-E20 – ESI Configuration file – V04
User Manual
– G3-E20 – User manual
Certification
– UK Conformity declaration – UK
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

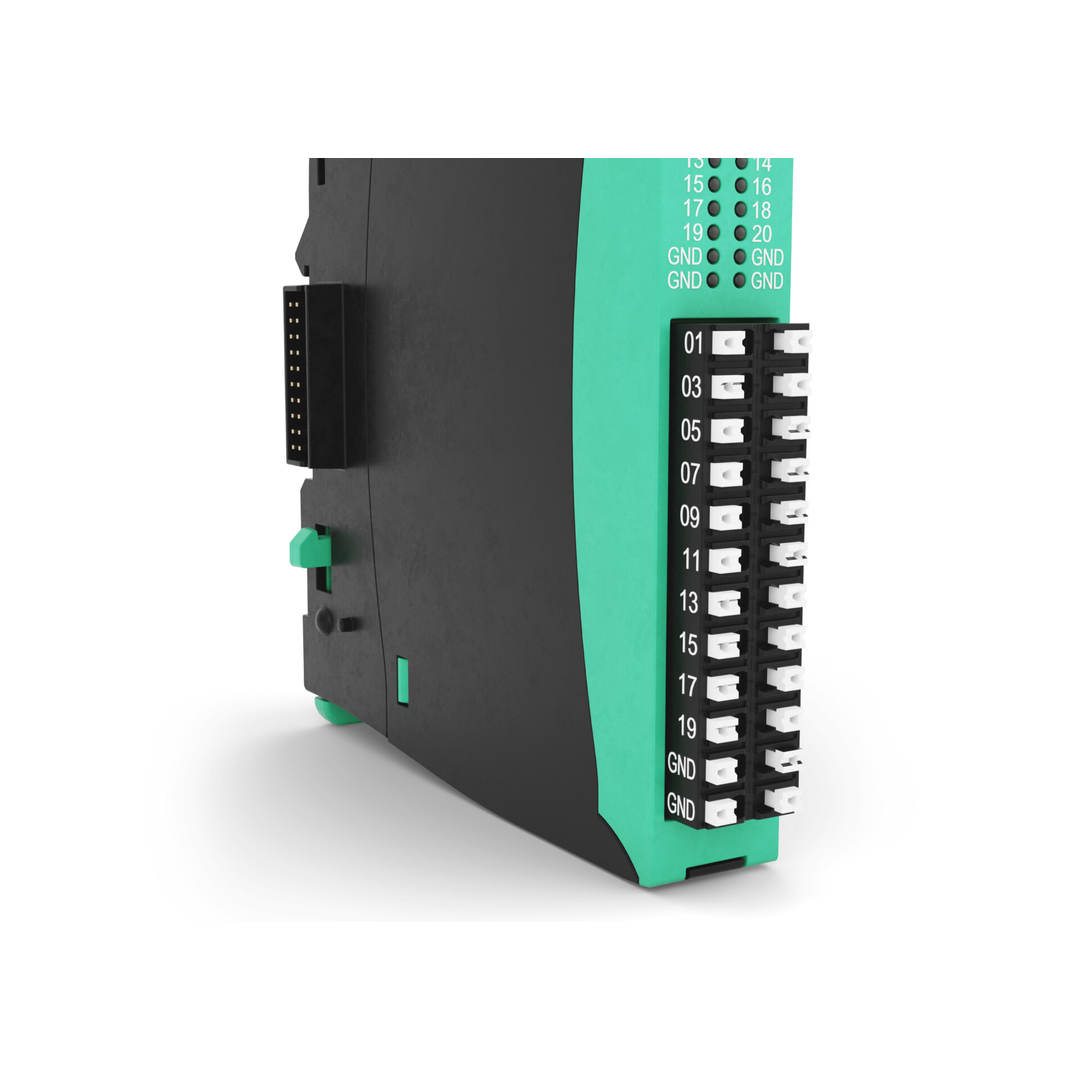

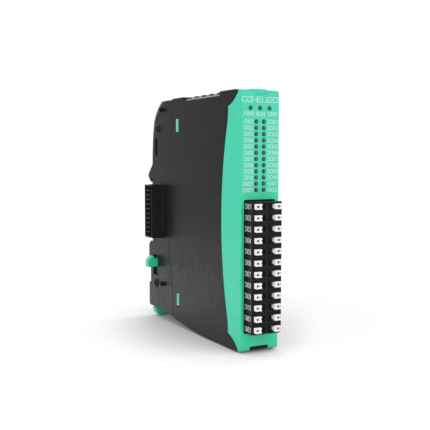

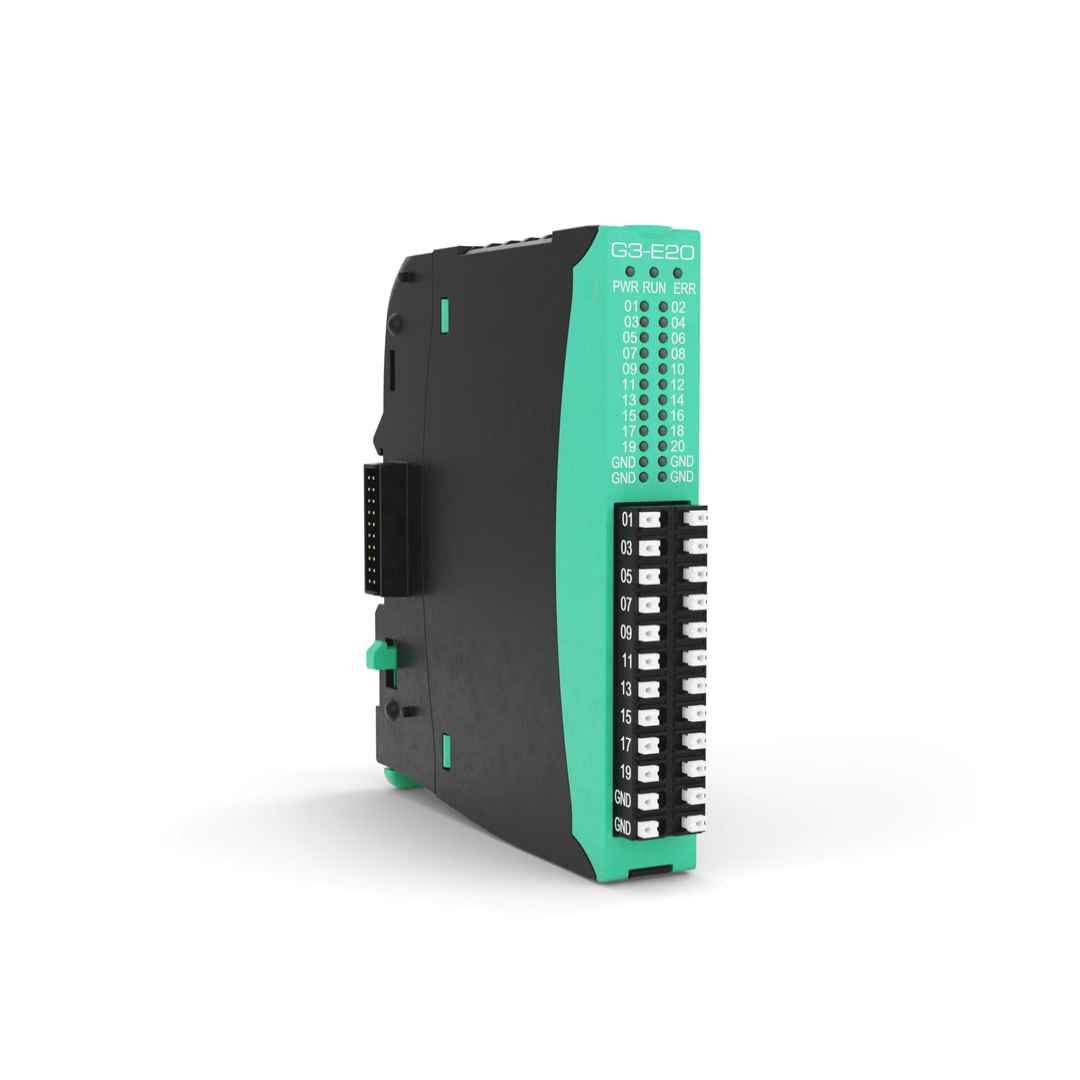

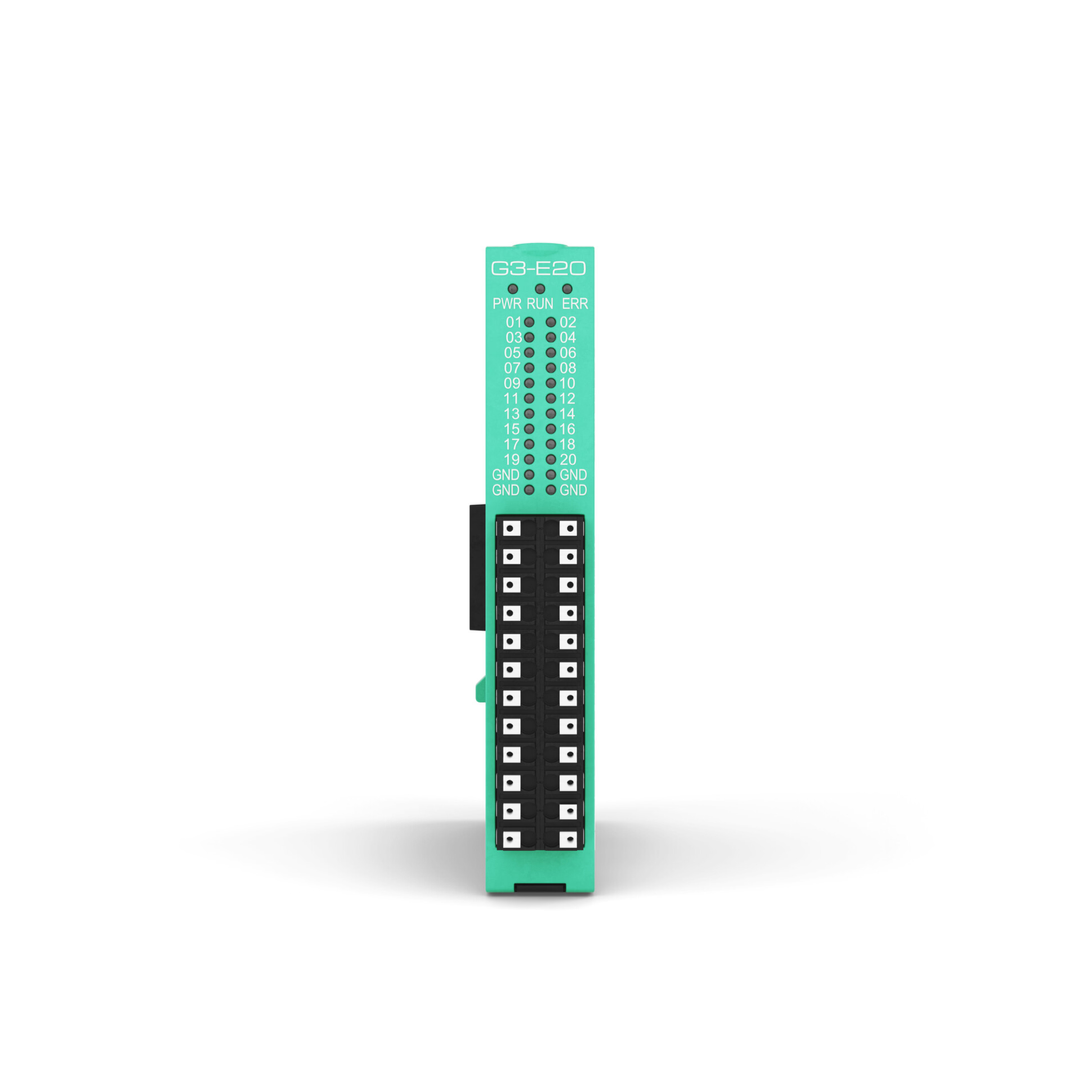

The G3-E20 module has 20 optically isolated digital inputs, 24 VDC, current sink.
It acquires logic signals from contacts, proximity sensors, drives and other IEC61131-2 compatible 24V digital output devices.
G3-E20 can be connected with all the G-Mation G3 modules and bridge from which it receives power supply.
G3-E20 can be used in Ethercat full performance systems.
Each input is protected against reverse polarity and has a dedicated LED to indicate its state.
Each input has an independent software selectable input filter. 4 inputs are software configurable to measure frequencies up to 1,5kHz.
