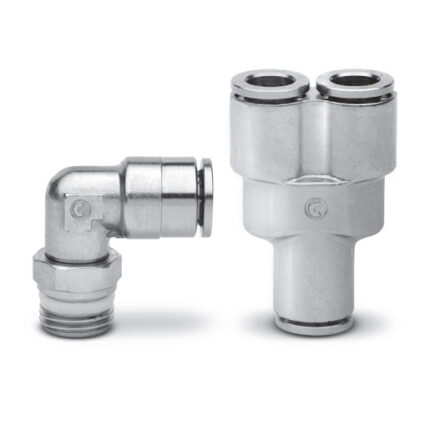

Nickel-Plated Brass DOT Fittings Series ND 6000 – Inch

Tube Diameter OD: 5/32″, 1/4″, 3/8″, 1/2″, 5/8″, 3/4″
Thread Type: 1/8″, 1/4″, 3/82″, 1/2″, 3/4″ NPTF

The US Department prohibits the use of air brake tubing assemblies between the frame and axle or between a towed and towing vehicle.

General Data

Material	Electrolytic Nickel-plated brass OT58 UNI 5705, Tube-support/insert in glass-reinforced Nylon
Collet	Brass OT58, nickel plated
O-Ring	Low temperature Buna-N (NBR)
Threads	10/32 UNF, 1/8″, 1/4″, 3/8″, 1/2″, 3/4” NPTF
Temperature [°C]	-58°F – 200°F
Operating pressure	0 – 275 psi (3/4” tube size operating pressure = 0 – 175 psi)
Fluid	Compressed air [for other types of fluid please contact your local Camozzi branch]
Tube diameter	5/32″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4” OD
