Main features
- Performance Level PL’c’
- Pressure ranges from: 0-17 to 0-2000 bar / 0-250 to 0-30000 psi
- Accuracy: < ±0.25% FSO (H); < ±0.5% FSO (M)
Available resources
2D/3D Files
– fce11102-bff1-461b-9e2e-f245a0792a6e_MN1.zip
Documentation – Previous Versions
– Data Sheet
Brochure
– Melt pressure sensors
– Gefran product range brochure
User Manual
– Manual of electrical installation for pressure probes
– Pressure Sensors for high temperature – User Manual
Datasheet
– MN Datasheet
Catalogue
– 4.0 plastic application catalogue
Informativa RoHS
– RoHS informative note
Certifications
– UK Conformity declaration_M series FS min 500bar PL c
– UK Conformity declaration_M series FS over 500bar PL c
– EU Conformity declaration_M series FS min 500bar PL c
– EU Conformity declaration_M series FS over 500bar PL c
– Performance Level ‘c’ Certification ME/M7, WE/W7, KE/K7 Series
– GTP+ FDA Certificate
Technical specifications
Overview

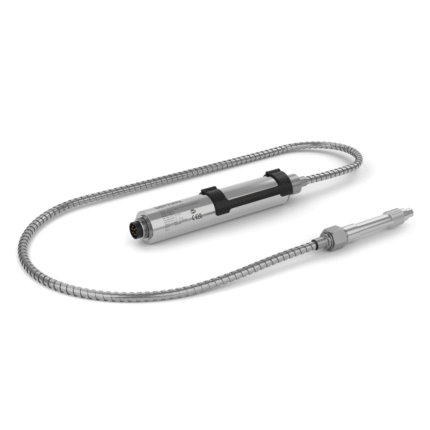

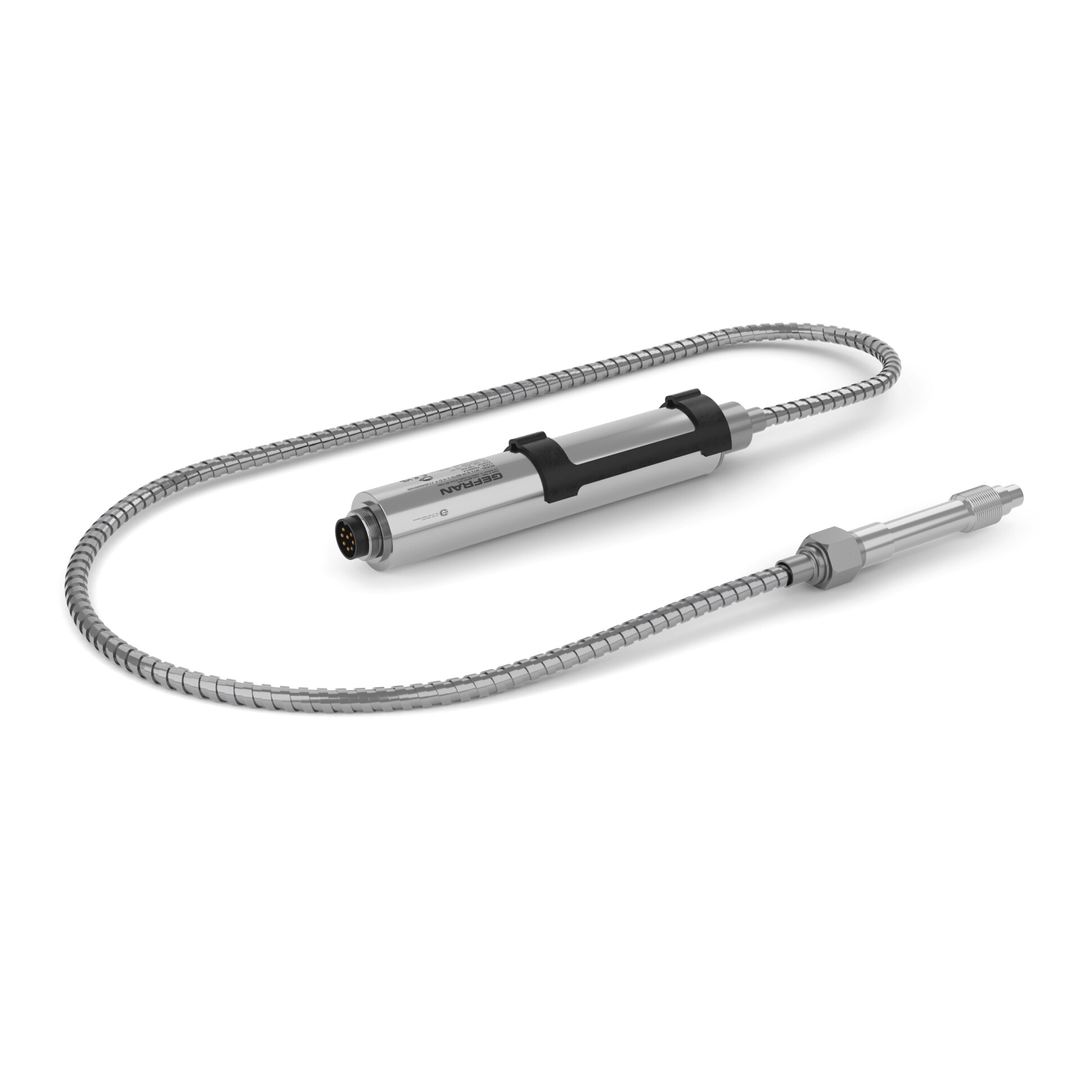

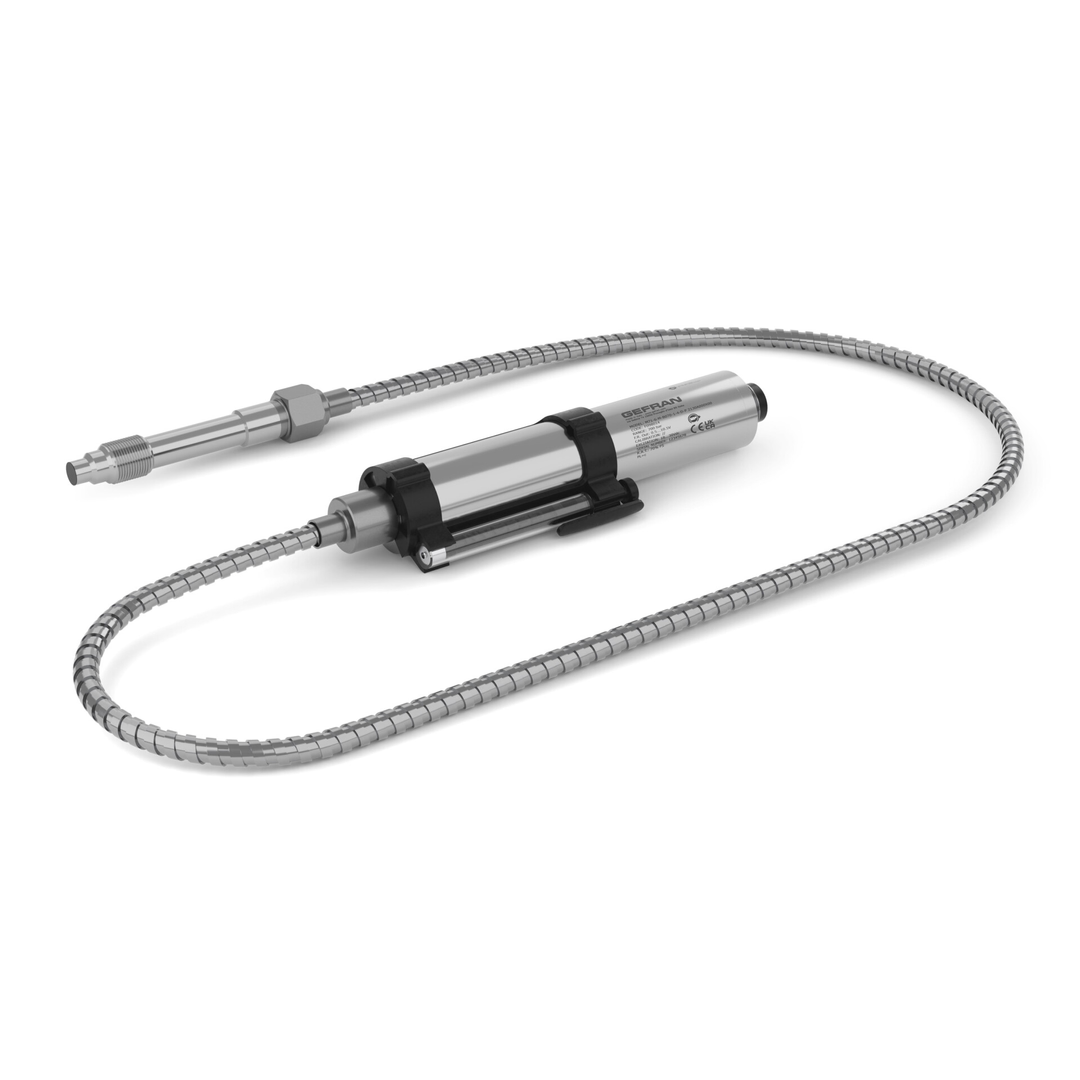

The M7 PL’c’ series of Gefran, are pressure transmitters for using in High temperature environment and specifically designed for melt pressure measurement and available only to be used in large-scale fixed installations or in large-scale stationary industrial tools, typically extruders, or for laboratory B2B equipments for R&D purposes according to the European Directive 2011/65/EU.
The M7 Performance Level ‘c’ Series are pressure sensors for use in high temperature applications where the process temperatures may reach 400°C (°F) such as high temperature engineered polymers.
The K Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage.
A near incompressible liquid (mercury) is used for pressure transmission.
