Main features
- Perfromance Level ‘c’
- Pressure ranges from: 0-35 ato 0-1000 bar / 0-500 to 0-150000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
Available resources
2D/3D Files
– K71_8_PL_c.zip
Brochure
– Melt pressure sensors
– Gefran product range brochure
User Manual
– KE-K7 PL’c’ User manual
Datasheet
– K7 PL’c’ Datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– UK Conformity declaration – Melt K min 500bar
– UK Conformity declaration – Melt K min 500bar PLc
– UK Conformity declaration – Melt K over 500bar PLc
– EU Conformity declaration_K series FS min 500bar PL c
– EU Conformity declaration_K series FS over 500bar PL c
– Performance Level ‘c’ Certification ME/M7, WE/W7, KE/K7 Series
– GTP+ FDA Certificate
Technical specifications
Overview

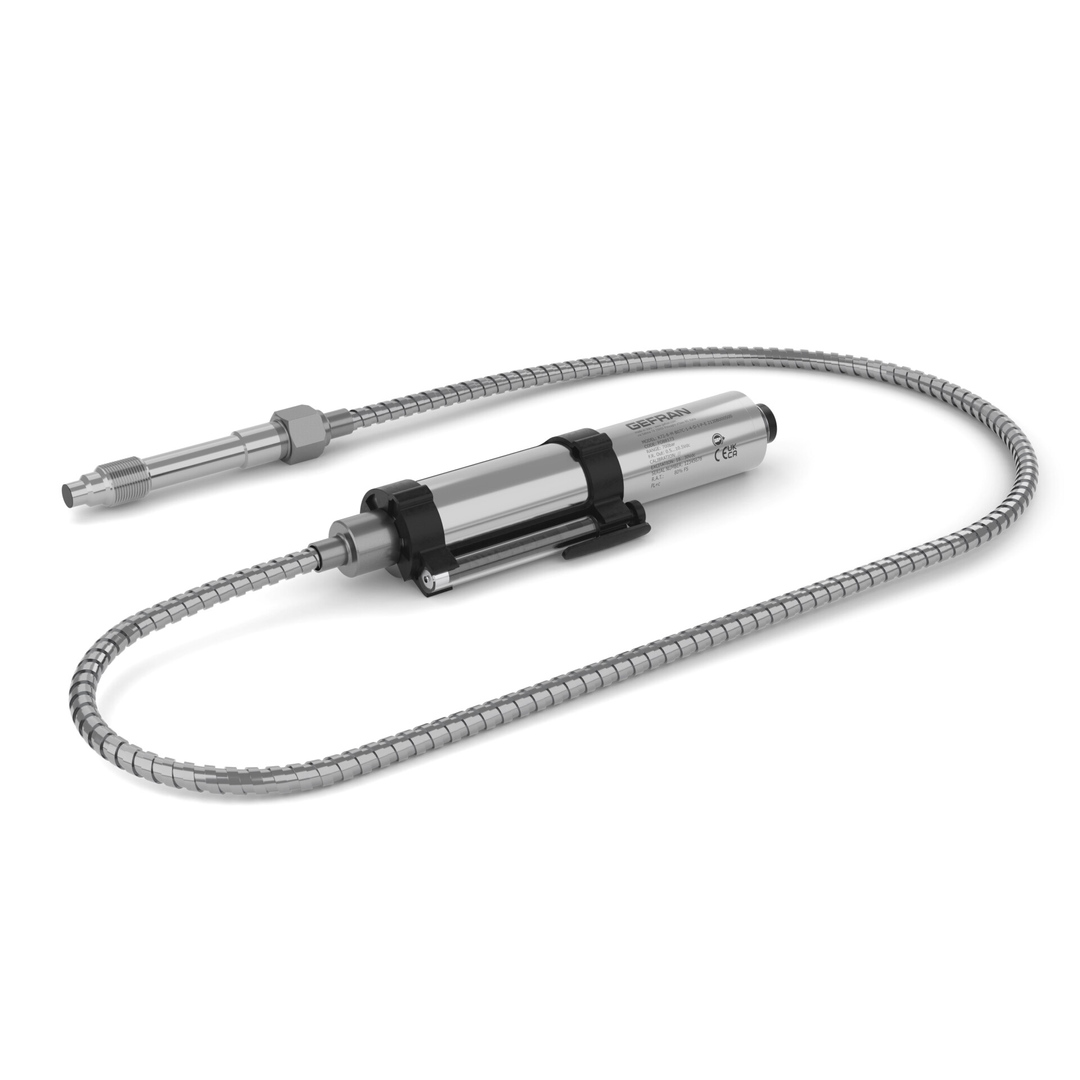

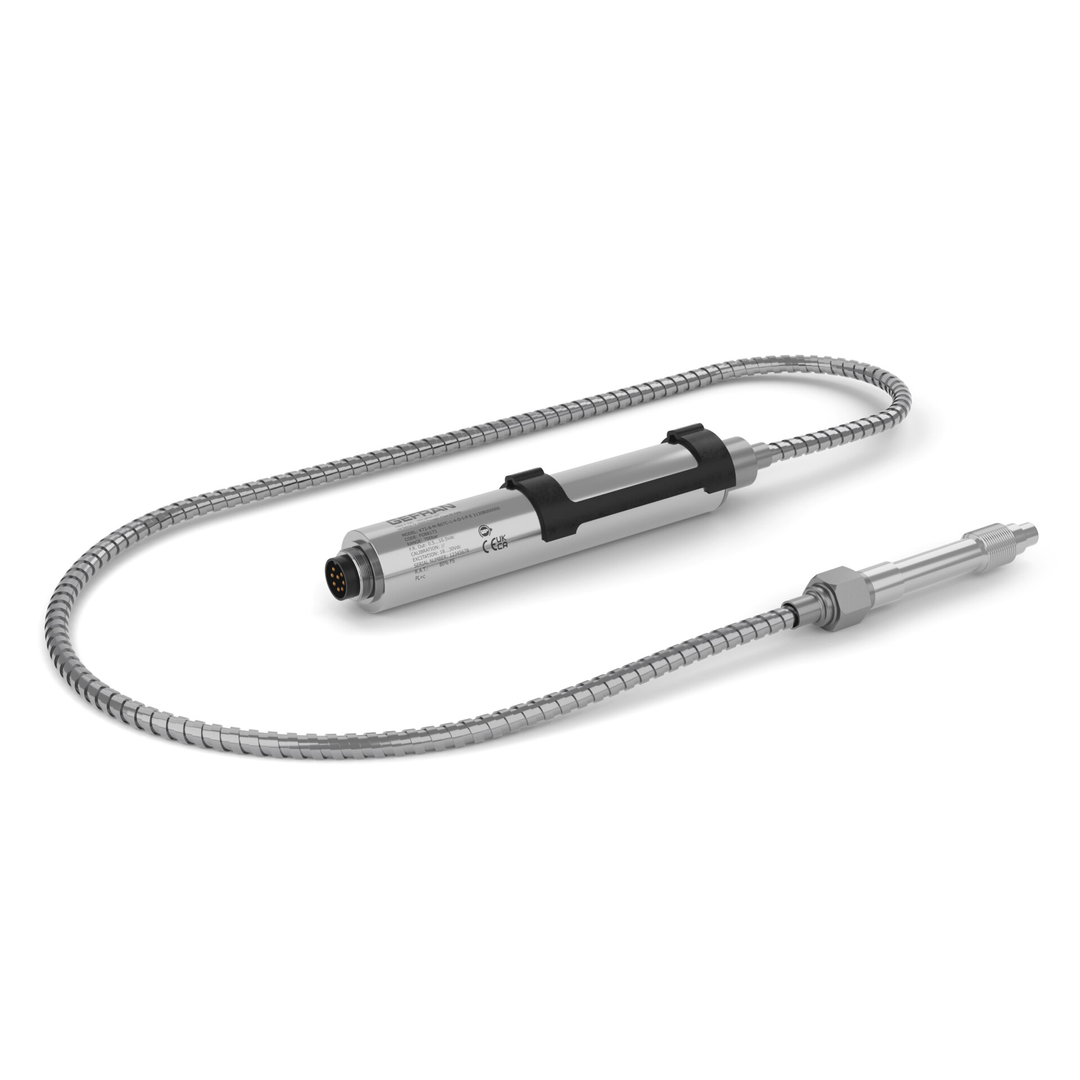

The K7 Performance Level ‘c’ Series are pressure sensors for use in high temperature applications where the process temperatures may reach 538°C (1000°F) such as high temperature engineered polymers.
The K Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage.
A near incompressible sodium-potassium (i.e. NaK) mixture is used for pressure transmission.
NaK is FDA recognized safe (GRAS) substance.
