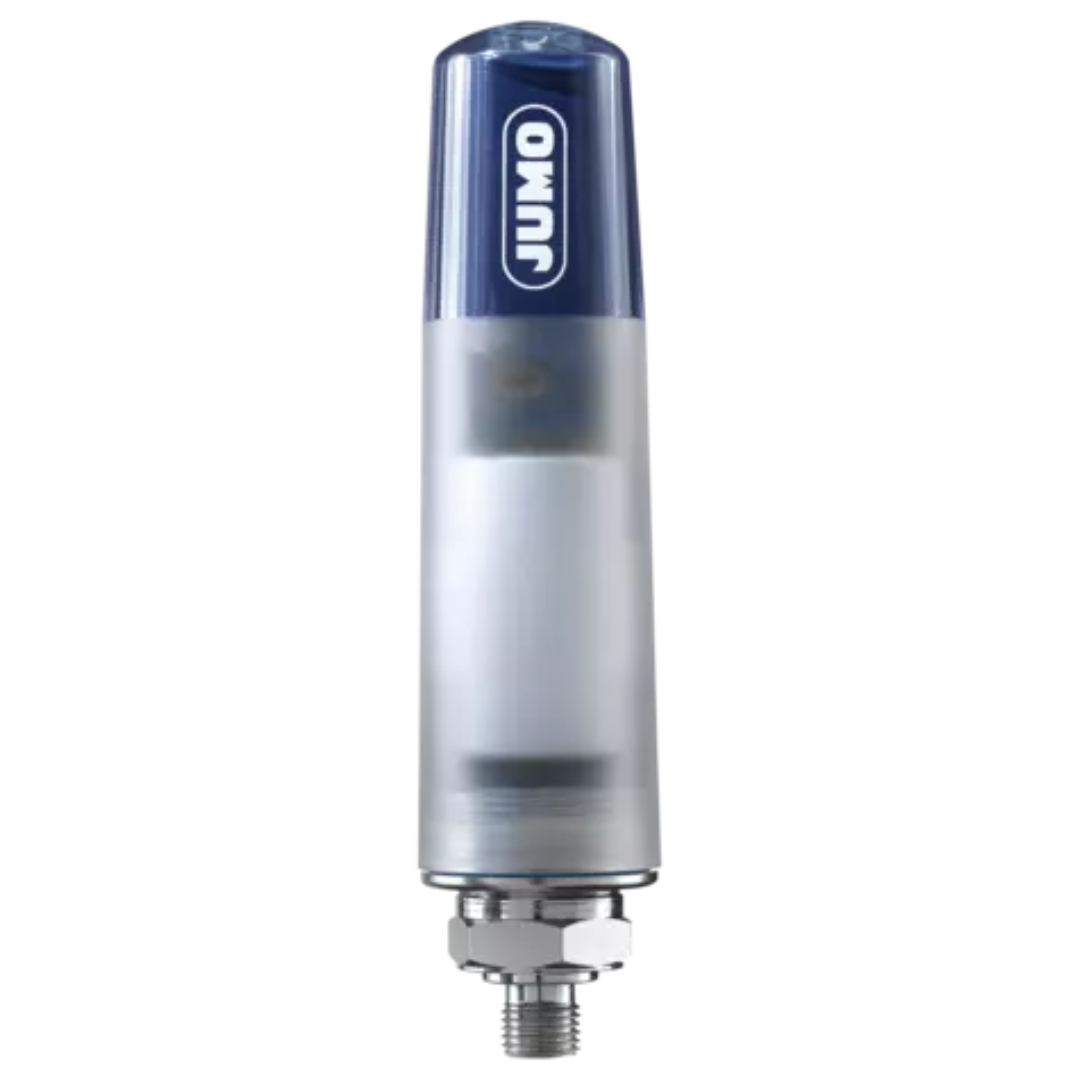

JUMO Wtrans p

The product acquires the pressure of liquid or gaseous media in combination with a Wtrans receiver. The measured values on the receiver are provided in a digital format and as an electrical signal. The product is used in instances where laying a cable would be too demanding.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Special features	Frequency: 868.4 MHz; transmission interval: 0.5 to 3600 s; range: up to 300 m when using the receiver’s antenna wall-mounting holder and a 3 m antenna cable; voltage supply: 3.6 V lithium battery
Input	-1 to +600 bar relative pressure; 0 to 25 bar absolute pressure
Process connection	All screw connections that are standard in the industry; NPT; UNF; JUMO PEKA
Output	Radio signal to receiver
Accuracy (linearity)	0.2 to 0.3 %
Medium temperature	-30 to +85 °C

general technical data

Special features

Frequency: 868.4 MHz; transmission interval: 0.5 to 3600 s; range: up to 300 m when using the receiver’s antenna wall-mounting holder and a 3 m antenna cable; voltage supply: 3.6 V lithium battery

Input

-1 to +600 bar relative pressure; 0 to 25 bar absolute pressure

Process connection

All screw connections that are standard in the industry; NPT; UNF; JUMO PEKA

Output

Radio signal to receiver

Accuracy (linearity)

0.2 to 0.3 %

Medium temperature

-30 to +85 °C
