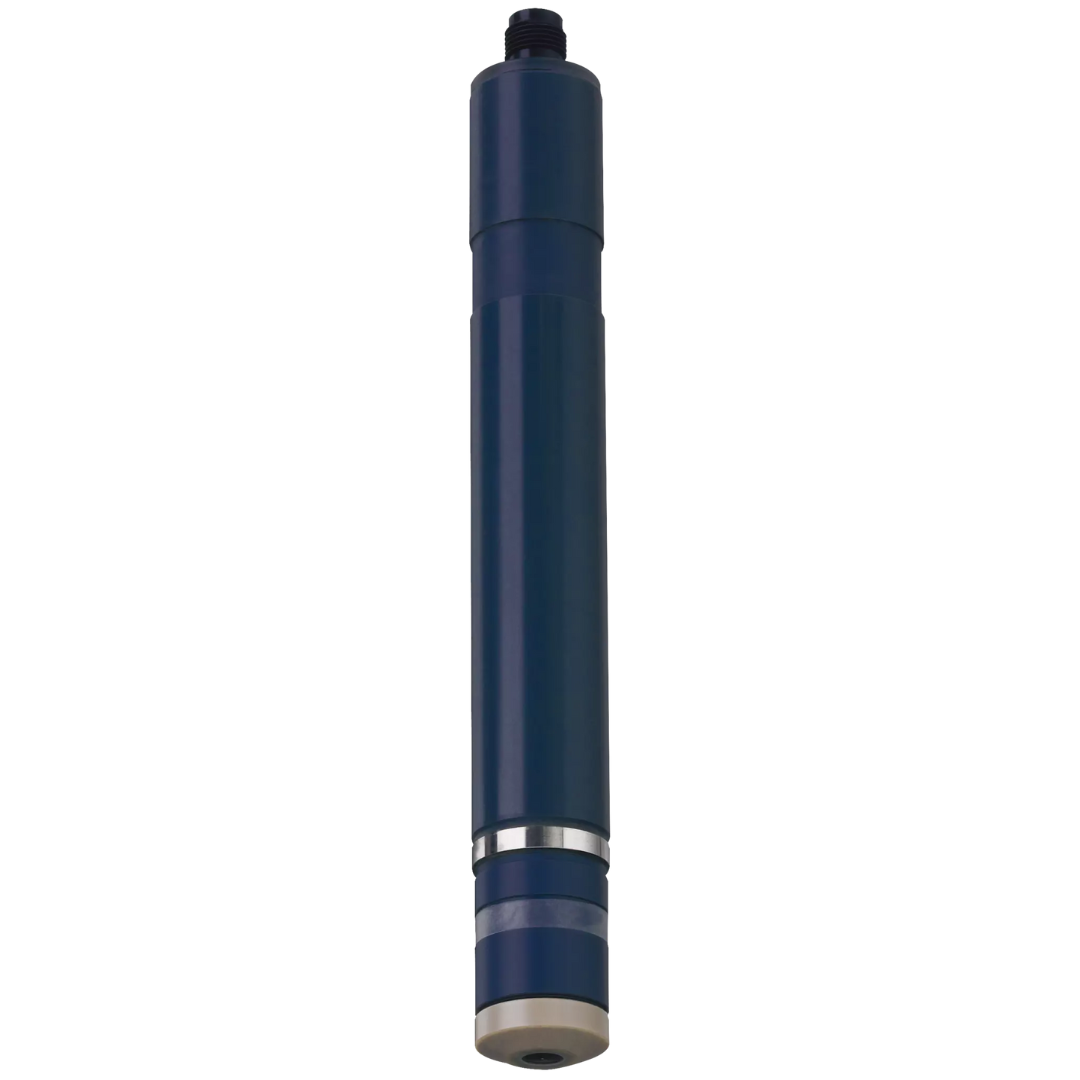

JUMO tecLine Br

The membrane-covered, amperometric sensor works on the three-electrode principle; it is used for the online measurement of hypobromous acid (HOBr). The electronic components integrated in the sensors provide a temperature-compensated current signal (4 to 20 mA) or a Modbus RTU output signal.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range	0.05 to 20 mg/l (ppm)
Measuring principle	Membrane-covered, amperometric, potentiostatic three-electrode system with integrated electronic components
Inflow speed	Approx. 15 cm/s
Response time t90	Approx. 2 minutes
Operating temperature	0 to 45 °C
Settling time	Approx. 2 hrs for initial startup
pH value area of application	pH 6.5 to pH 9.5
Application areas	Disinfection of drinking water, swimming pool water, service water, process water, and seawater

General technical data

Measuring range

0.05 to 20 mg/l (ppm)

Measuring principle

Membrane-covered, amperometric, potentiostatic three-electrode system with integrated electronic components

Inflow speed

Approx. 15 cm/s

Response time t90

Approx. 2 minutes

Operating temperature

0 to 45 °C

Settling time
