JUMO Quantrol

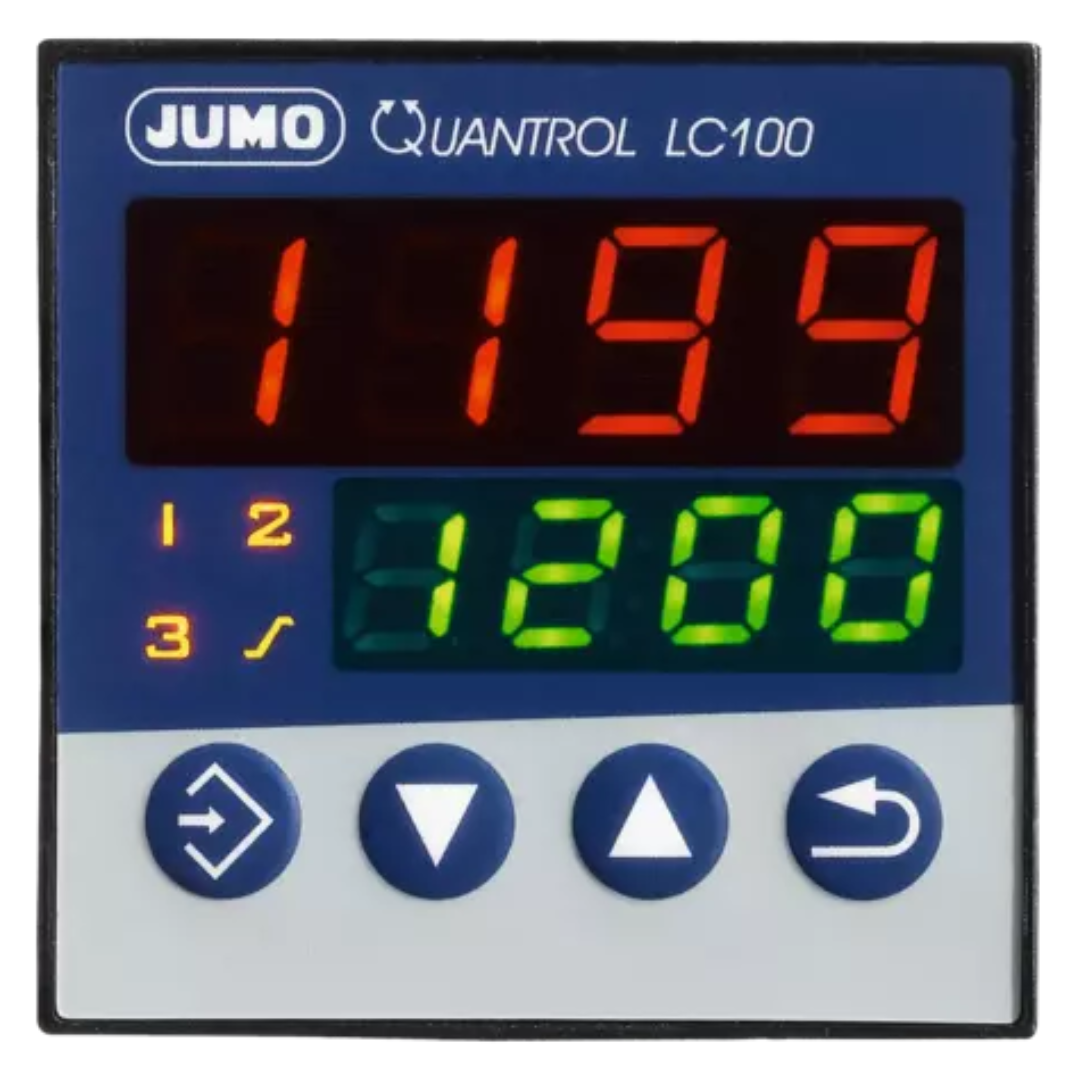

The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.

Categories: Control, Controller, Controller, Level, Pressure, Temperature

Technical data
Downloads

Technical data

general technical data
Inputs	1 × universal thermocouples, RTD temperature probes, 0 to 10 V, 0(4) to 20 mA; 1 × digital input
Outputs	1 × relay (3 A/230 V normally open contact); 4 × optional: analog output (max 1x), relay, logic output
Display	2 × seven-segment LED
Formats	48 × 48 mm; 48 × 96 mm; 96 × 96 mm
Other functions	Sensor monitoring, limit value monitoring function, setpoint changeover, ramp and timer function, firing curve

general technical data

Inputs

1 × universal thermocouples, RTD temperature probes, 0 to 10 V, 0(4) to 20 mA; 1 × digital input

Outputs

1 × relay (3 A/230 V normally open contact); 4 × optional: analog output (max 1x), relay, logic output

Display

2 × seven-segment LED

Formats

48 × 48 mm; 48 × 96 mm; 96 × 96 mm

Other functions

Sensor monitoring, limit value monitoring function, setpoint changeover, ramp and timer function, firing curve
