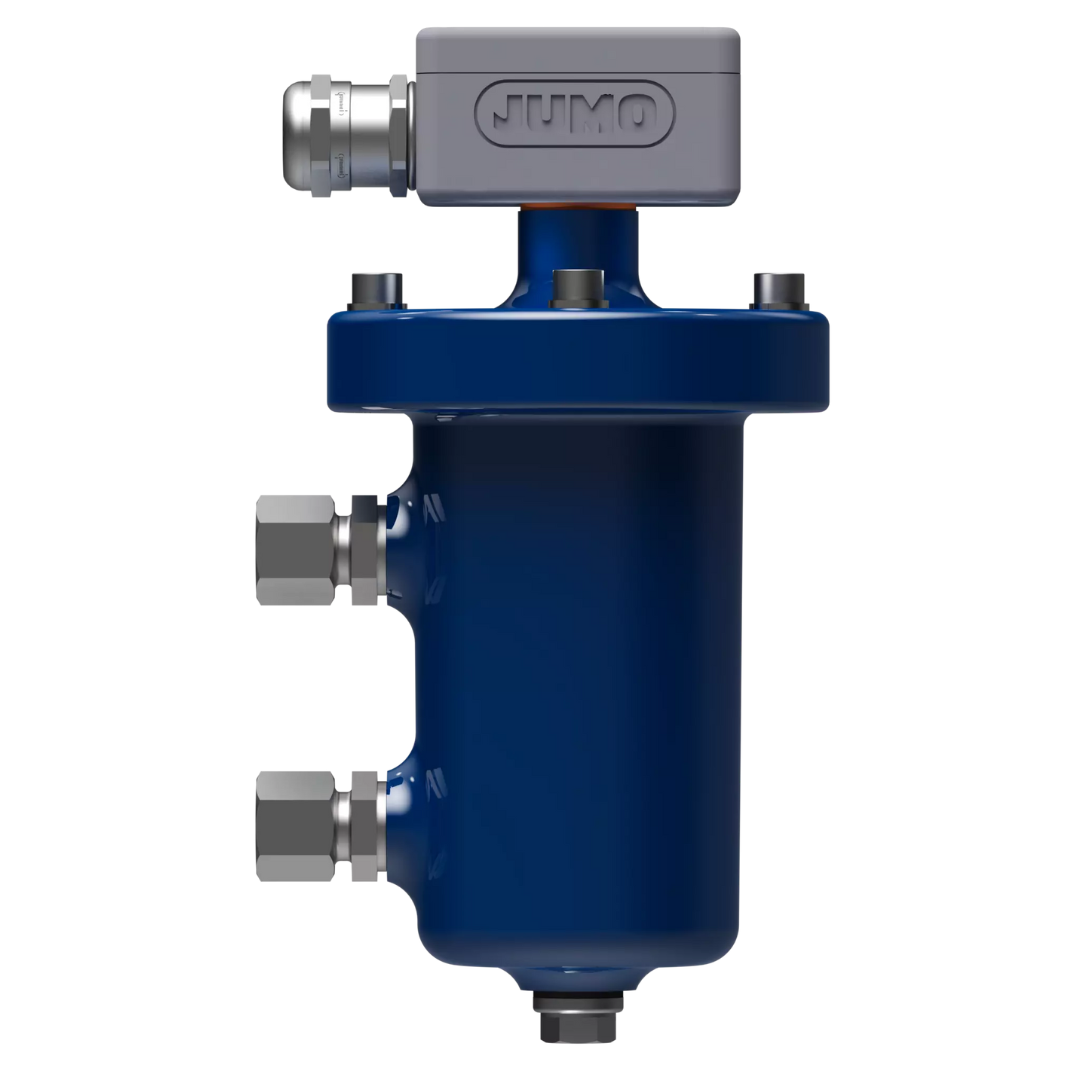

JUMO NESOS R03 LS

For point level measurement of liquids with chamber. In the event of a lack of space or turbulent media, the device is mounted on the side of the tank. Available with 1 float and up to 2 switching contacts as well as an optional temperature sensor/switch.

Categories: Float switches, Level

Technical data
Downloads

Technical data

General technical data
Switching capacity	Up to 250 V AC/DC; up to 1 A
Medium temperature	-30 to +150 °C
Contact versions	Normally closed contact; single-pole changeover contact; normally open contact
Float	Cylinder, CrNi (stainless steel) Ø 44; cylinder, Ti (titanium) Ø 44
Protection rating	IP66
Approvals	DNV GL, EAC
Manufacturer’s declaration	CE
Special features	The product does not fall under the Pressure Equipment Directive 2014/68/EU, since there is no pressurized housing (see separate certificate TÜV SÜD).

General technical data

Switching capacity

Up to 250 V AC/DC; up to 1 A

Medium temperature

-30 to +150 °C

Contact versions

Normally closed contact; single-pole changeover contact; normally open contact

Float

Cylinder, CrNi (stainless steel) Ø 44; cylinder, Ti (titanium) Ø 44

Protection rating

IP66

Approvals

DNV GL, EAC

Manufacturer’s declaration

CE

Special features

The product does not fall under the Pressure Equipment Directive 2014/68/EU, since there is no pressurized housing (see separate certificate TÜV SÜD).
