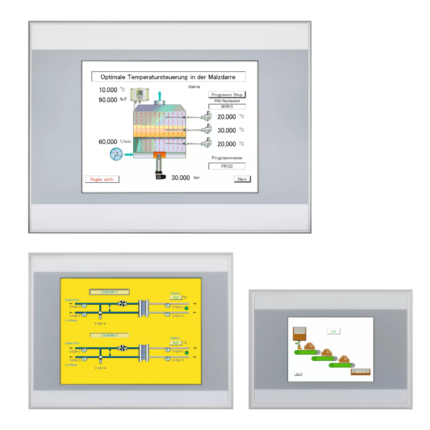

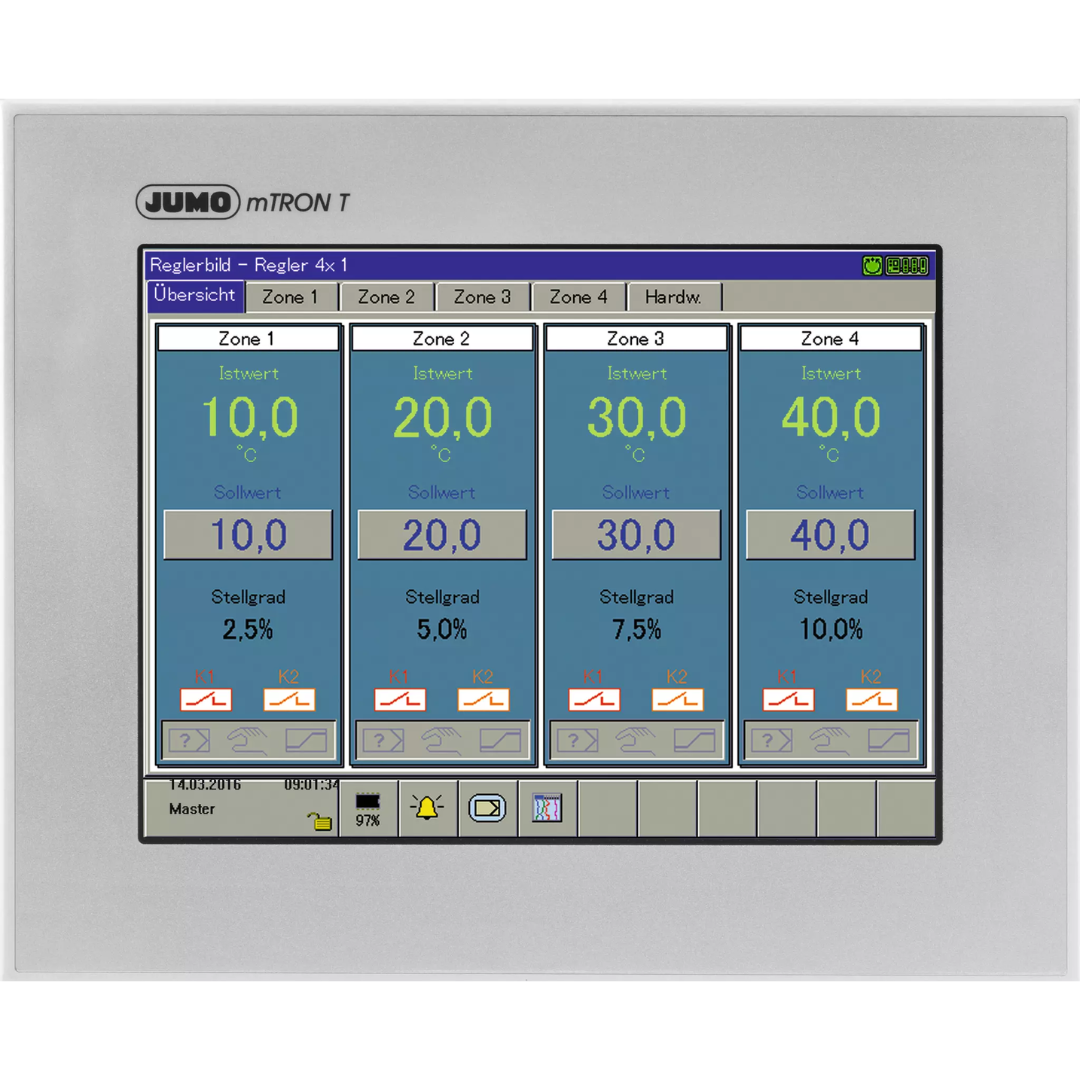

JUMO mTRON T
The multifunction panel is used for simple and clear measured data visualization, operation, configuration, and parameterization of the system. As an interface between user and machine, the panel allows an optimal and clearly arranged insight into the process statuses and parameters of the system.
Technical data
| General technical data | |
|---|---|
| Operation | 21.3-cm (8.4″) TFT touchscreen with a resolution of 640 × 480 pixels and 256 colors |
| Interfaces | Ethernet, 1 USB device, 2 USB hots, 2 RJ45 system bus connections (1 × Bus In, 1 × Bus Out), 2 serial interfaces (option) as RS232 or RS422/485 for barcode scanner and Modbus RTU master/slave |
| Special features | Predefined screen masks for the controller, program generator, and recording function, customer-specific process screens, user management, configuration access to the overall system, recording function (option), integrated web server |
| Approvals | UL, DNV GL |
| Housing | Robust metal case |
| Protection type | IP67 (front side), IP20 (rear side) |
| Ambient temperature | -20 to +55 °C |
| Voltage supply | DC 24 V +25/-20 % SELV |
| Dimensions (W × H × D) | 235 mm x 195 mm x 58 mm (without connection elements) |
