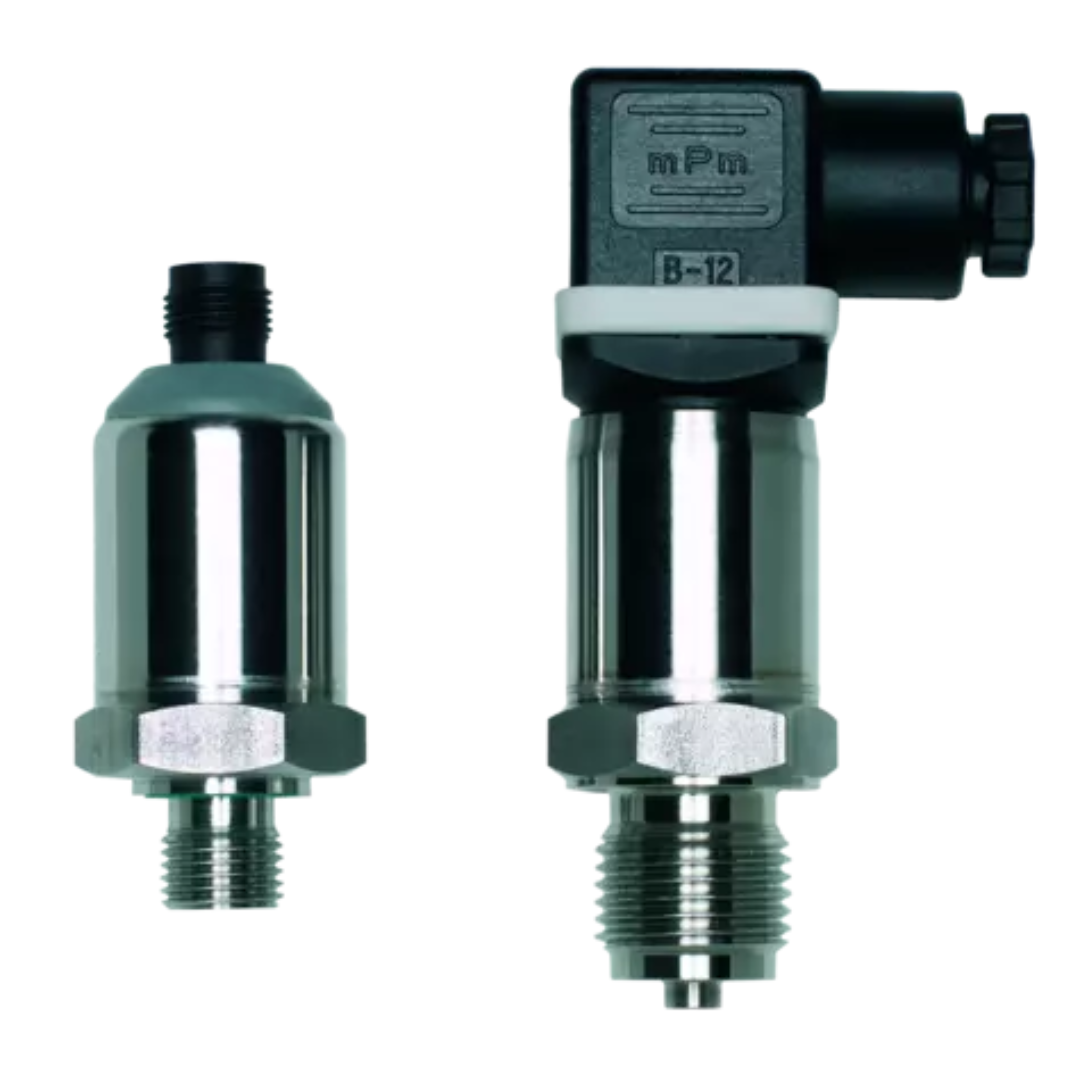

JUMO MIDAS SI

This pressure transmitter acquires the relative and absolute pressure of gaseous and liquid media and transforms it into an electrical signal. One of the application areas in which it is used is aggressive media.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Accuracy (linearity)	0.30 %
Input	-1 to +1.6 bar relative pressure; 0 to 25 bar absolute pressure
Measuring system	Silicon sensor with stainless steel separating membrane
Medium temperature	-30 to +125 °C
Output	4 to 20 mA two-wire; DC 0 to 10 V three-wire
Process connection	All screw connections that are standard in the industry

general technical data

Accuracy (linearity)

0.30 %

Input

-1 to +1.6 bar relative pressure; 0 to 25 bar absolute pressure

Measuring system

Silicon sensor with stainless steel separating membrane

Medium temperature

-30 to +125 °C

Output

4 to 20 mA two-wire; DC 0 to 10 V three-wire

Process connection
