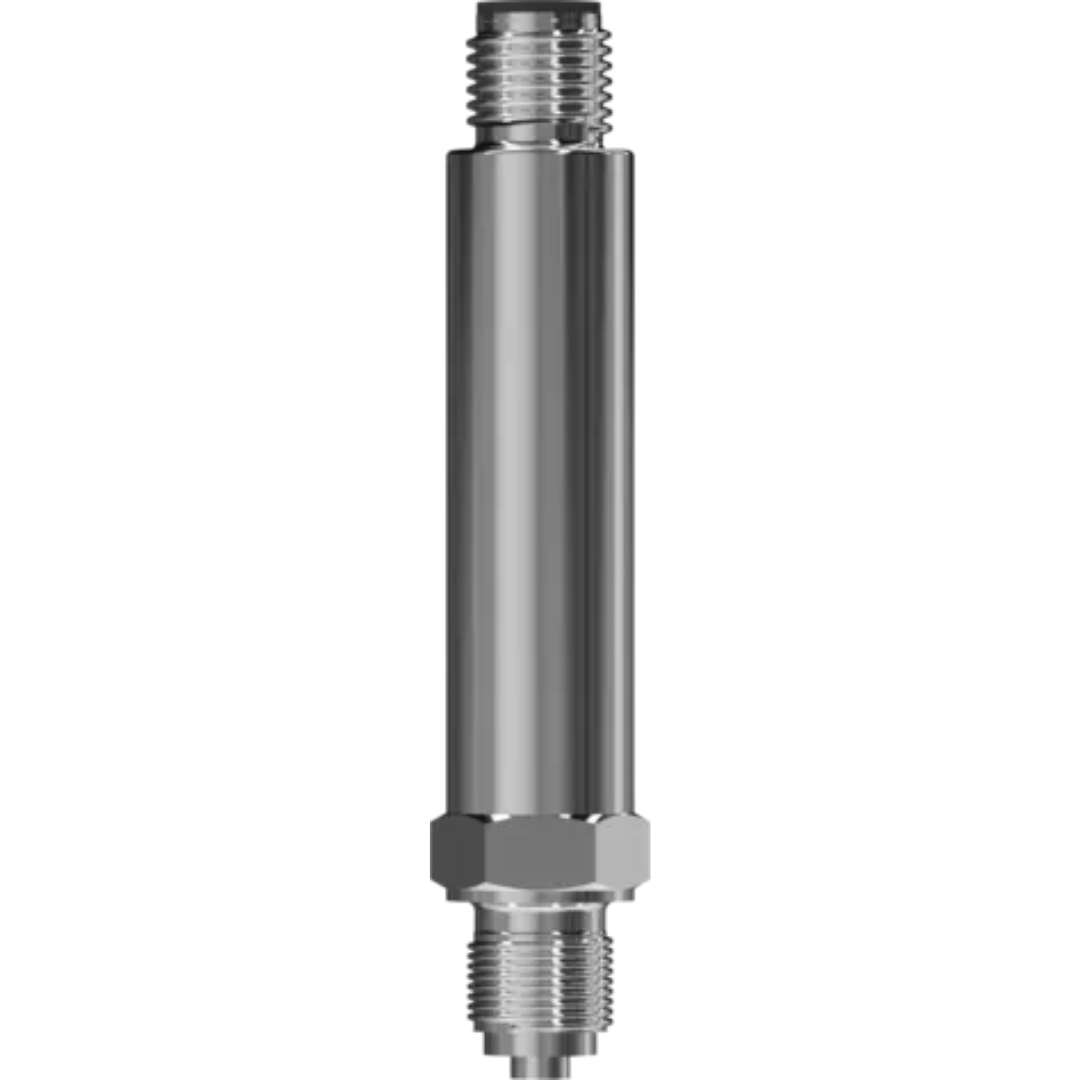

JUMO MIDAS S22 Ex
The miniature pressure transmitter measures the relative and absolute pressure of gases, steam, and liquids based on the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.
Technical data
| general technical data | |
|---|---|
| Measuring system | Silicon sensor with stainless steel separating membrane |
| Input | 2.5 to 100 bar relative and absolute |
| Output | 4 to 20 mA, two-wire |
| Medium temperature | -20 to +85 °C |
| Accuracy (linearity) | 0.3 % |
| Process connection | All standard screw connections |
| Approval | ATEX, IECEx |
