JUMO IMAGO F3000

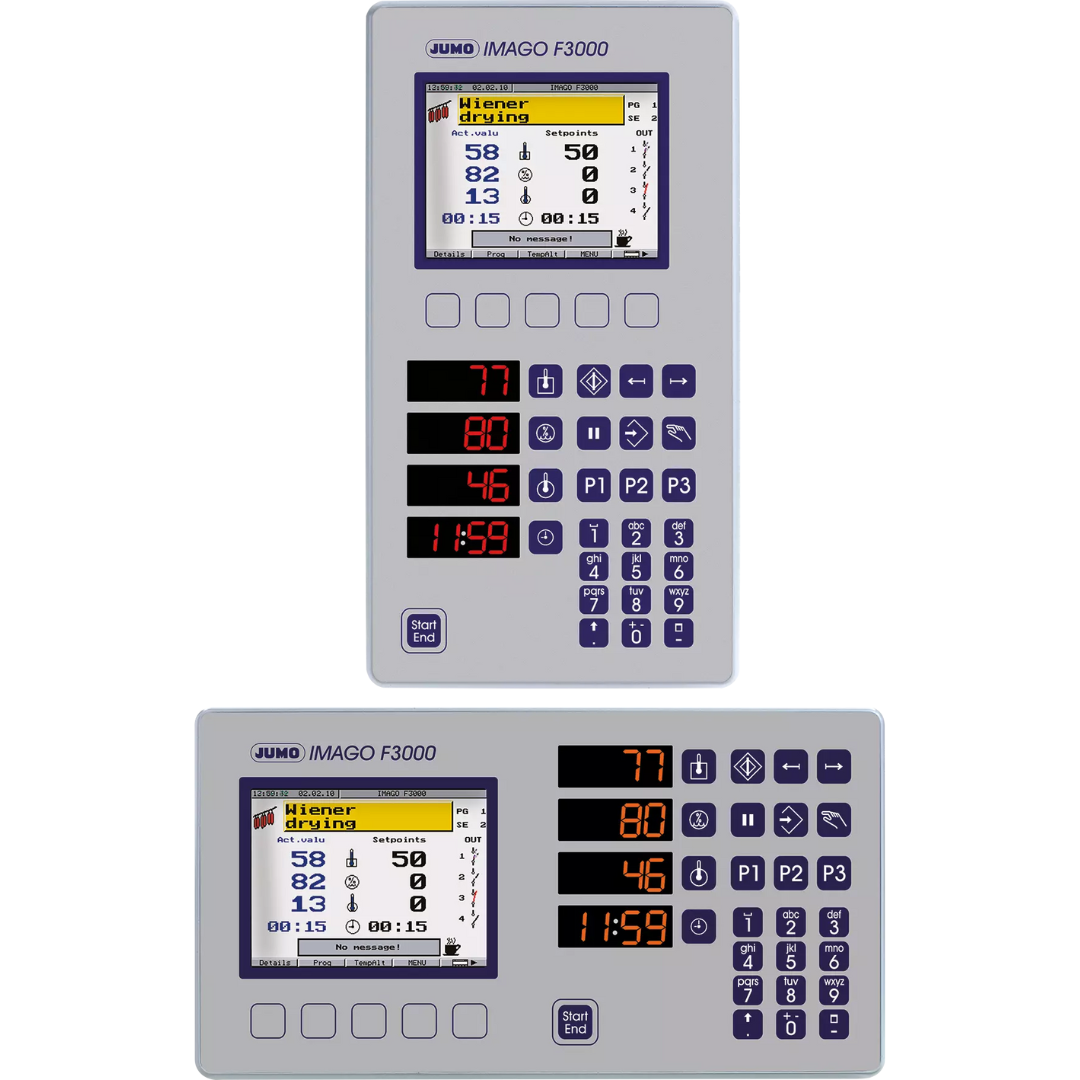

The modular process control is suitable for controlling and regulating cooking, smoking, and air-conditioning systems as well as all associated devices such as smoke generators, catalysts, etc. It is available in portrait and landscape format.
Technical data
| General technical data | |
|---|---|
| Number of control channels | 4 independent and user configurable control channels |
| Controller structure | P; I; PD; PI; PID (4 sets of control parameters that can be assigned to the channels freely) |
| Display | 5-inch TFT color screen (320 × 420 pixels, 27 colors); plain text display available in English, German, French, and other languages; process-specific texts and screens individually configurable; bar graph display; additional 4-digit, 7-segment displays (red) for displaying important process values |
| Interfaces/protocols | RS 422/485 (Modbus); PROFIBUS DP; setup interface |
| Program controller | Program function (99 programs each with up to 99 sections); along with 99 programmable process steps |
| Measurement inputs | Up to 8 user configurable analog inputs for: RTD temperature probes; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V |
| Protection type | At the front IP67; at the rear IP20 |
| Special features | Industry specific features: core switching, smoke generator, fan control, input 0 to 1 V for humidity probe, F-value calculation, modular structure with plug-in cards that can be retrofitted individually; easy-to-use PC setup program; recording function with evaluation software; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions; programmable function keys and individually configurable process screen for plant visualization |
| Connections | On rear side via pluggable screw terminals |
| Voltage supply | AC 110 to 240 V +10/–15 %, 48 to 63 Hz; AC/DC 20 to 30 V, 48 to 63 Hz |
| Outputs | Max. 35 relays; max. 4 analog outputs |
| Format | 307 × 165 mm (vertical or horizontal), mounting depth 107.6 mm |
| Approvals | cULus |
| Mounting | Plastic housing for panel mounting |
| Controller type | Two-state controller; three-state controller; three-step controller; continuous controller; continuous controller with integrated position controller |
| Alarms | 8 limit value monitoring functions, each with 8 selectable alarm functions with timer and confirmation functions |
